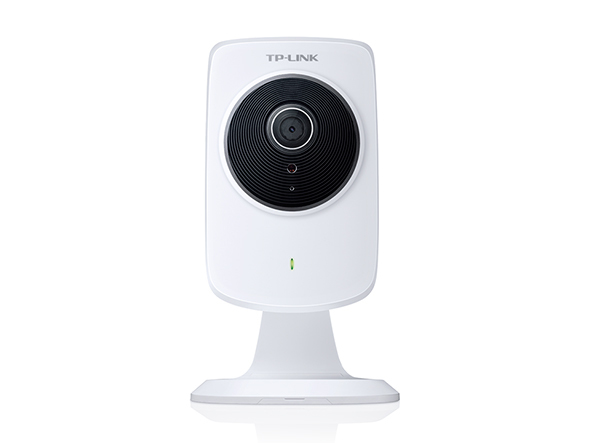

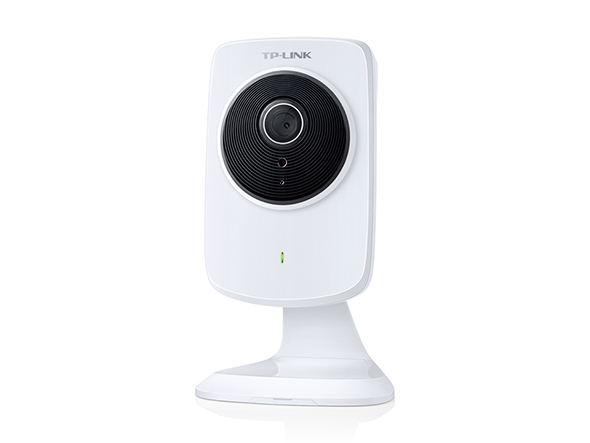

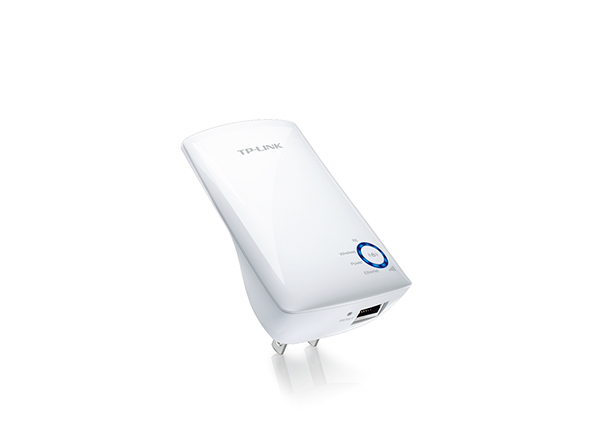

NC220+TL-WA850RE security camera Cube IP security camera Indoor
640 x 480 pixels Desk/Wall
Model NC220+TL-WA850RE
59 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- ColourWhite
- Form factorCube
- Minimum illumination0.5 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Colour
- White
- Form factor
- Cube
- Minimum illumination
- 0.5 lx
- Sensor type
- CMOS
- Brand
- TP-Link
- Category
- Security Camera
- Model
- NC220+TL-WA850RE
- Part number
- NC220+TL-WA850RE
- Also known as
- TP-Link NC220+TL-WA850RE security camera Cube IP security camera Indoor 640 x 480 pixels Desk/Wall
Specifications
59 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Antenna type | Internal |
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Mounting type | Desk/Wall |
| Product colour | White |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.5 lx |
| Field of view (FOV) angle | 64° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 4x |
| Focal length range | 2.8 - 3.85 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 640 x 480 pixels |
| Total megapixels | 0.3 MP |
| Video compression formats | H.264 |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA) |
| Frame rate | 30 fps |
| Full HD | No |
Audio
| Specification | Value |
|---|---|
| Audio system | 1-way |
| Audio formats supported | AAC |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP,DNS, UPnP, HTTP and UDP |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 5.4 W |
| DC output voltage | 9 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 69 mm |
| Height | 137 mm |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package width | 79.5 mm |
| Package depth | 223 mm |
| Package height | 128 mm |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
