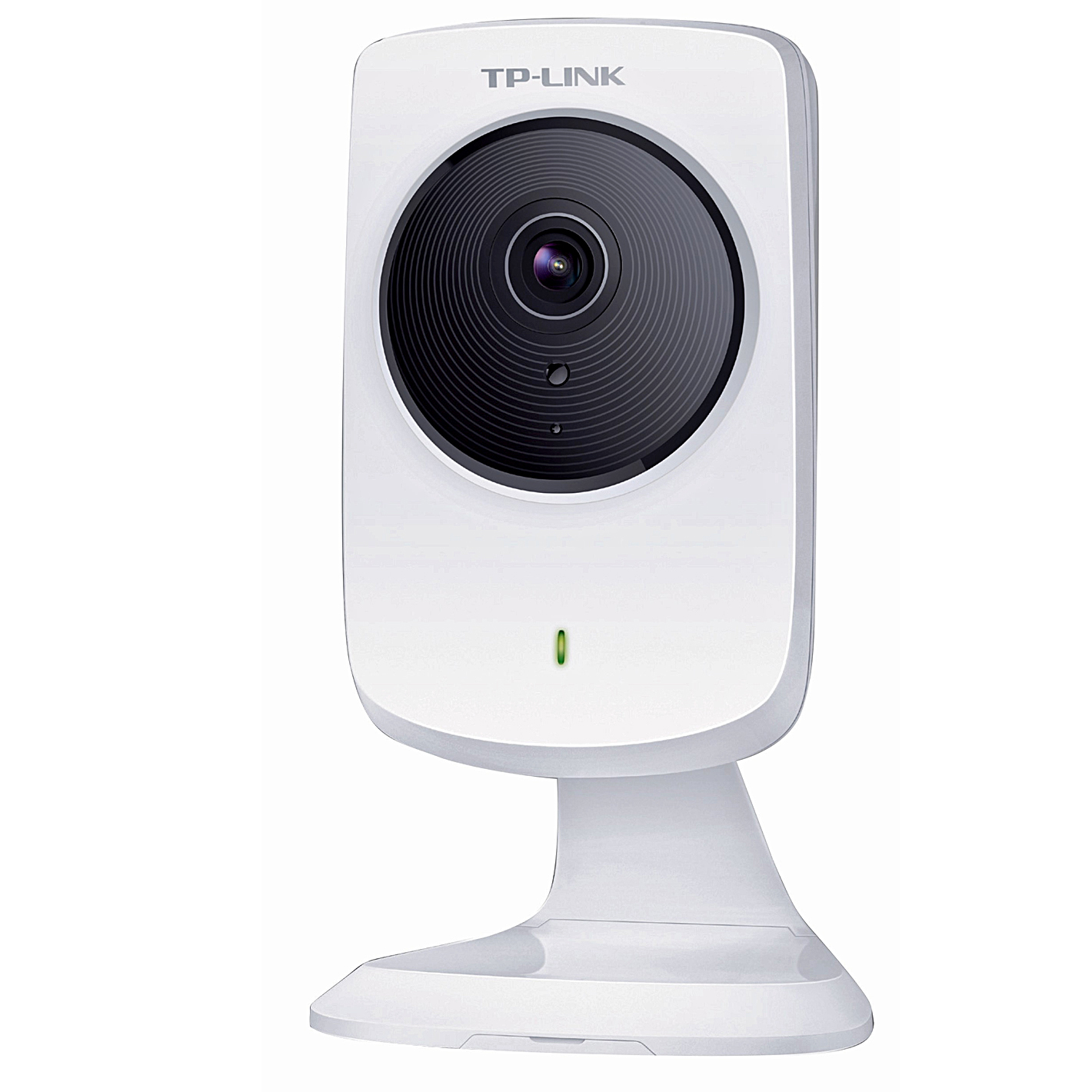

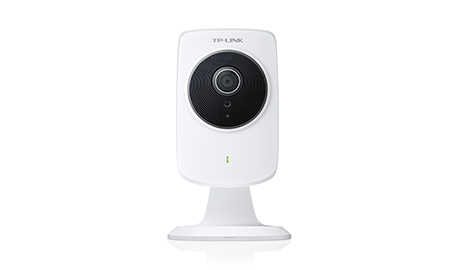

TP-Link NC220 security camera Cube IP security camera Indoor

TP-Link NC220 security camera Cube IP security camera Indoor

640 x 480 pixels Desk/Wall

Model NC220EAN 6935364092061

49 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • ColourWhite
  • Form factorCube
  • Minimum illumination0.5 lx
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Colour
White
Form factor
Cube
Minimum illumination
0.5 lx
Sensor type
CMOS
Brand
TP-Link
Model
NC220
Part number
NC220
EAN / UPC
6935364092061, 6935364092078
Also known as
TP-Link NC220 security camera Cube IP security camera Indoor 640 x 480 pixels Desk/Wall

Specifications

49 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired & Wireless
Antenna typeInternal
CertificationCE, FCC

Design

Form factorCube
Mounting typeDesk/Wall
Product colourWhite
LED indicatorsYes

Camera

Minimum illumination0.5 lx
Lens viewing angle, horizontal64°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")
Effective sensor resolution0.3 pixels

Lens system

Zoom capabilityYes
Digital zoom4x
Focal length range2.8 - 3.85 mm

Night vision

Night visionYes

Video

Maximum resolution640 x 480 pixels
Video formats supportedH.264
Supported graphics resolutions320 x 240
Frame rate30 fps
Full HDNo

Audio

Audio system1-way
Audio formats supportedAAC
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
Supported network protocolsBonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS,DNS, NTP, UPnP, HTTP, HTTPS, TCP, UDP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)300 Mbit/s
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1
InterfaceRJ-45

Security

Security algorithmsWEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Power

AC input voltage9 V
Power consumption (typical)5.4 W
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

System requirements

Windows operating systems supportedYes
Mac operating systems supportedMac OS X 10.7 Lion

Weight & dimensions

Width61 mm
Depth24 mm
Height96 mm

Sustainability

Compliance certificatesRoHS
