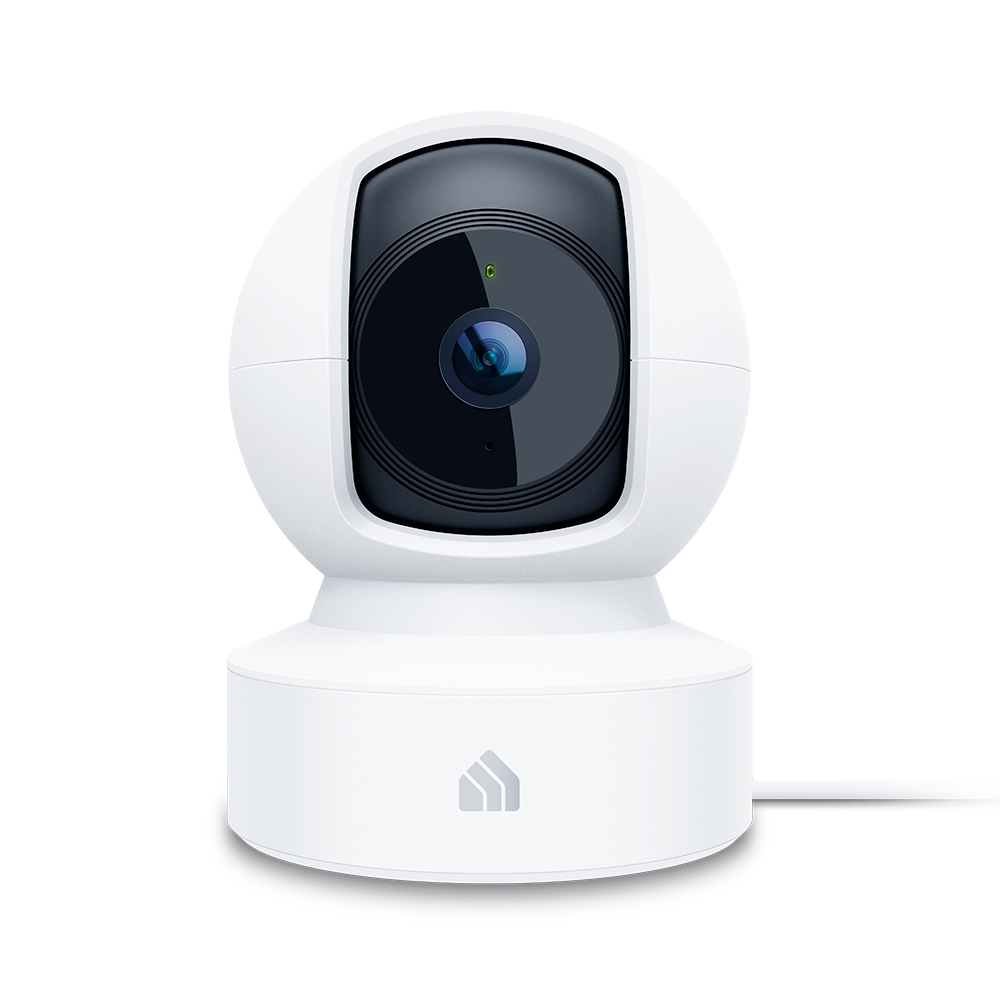

Kasa Spot Pan Tilt
Model KC110Part no. KC110 V1EAN 845973087142
62 specifications
- ConnectivityWireless
- TypeIP security camera
- ColourWhite
- Form factorSpherical
- Camera pan controlYes
- Sensor typeCMOS
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Colour
- White
- Form factor
- Spherical
- Camera pan control
- Yes
- Sensor type
- CMOS
- Brand
- TP-Link
- Category
- Security Camera
- Model
- KC110
- Part number
- KC110 V1
- EAN / UPC
- 845973087142, 6935364087166, 6935364087265
- Also known as
- TP-Link Kasa Spot Pan Tilt
Specifications
62 specifications in 21 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Day/night mode | Yes |
| Operating frequency | 2400 MHz |
| Certification | FCC, IC, CE |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Stand |
| Product colour | White |
| LED indicators | System |
Camera
| Specification | Value |
|---|---|

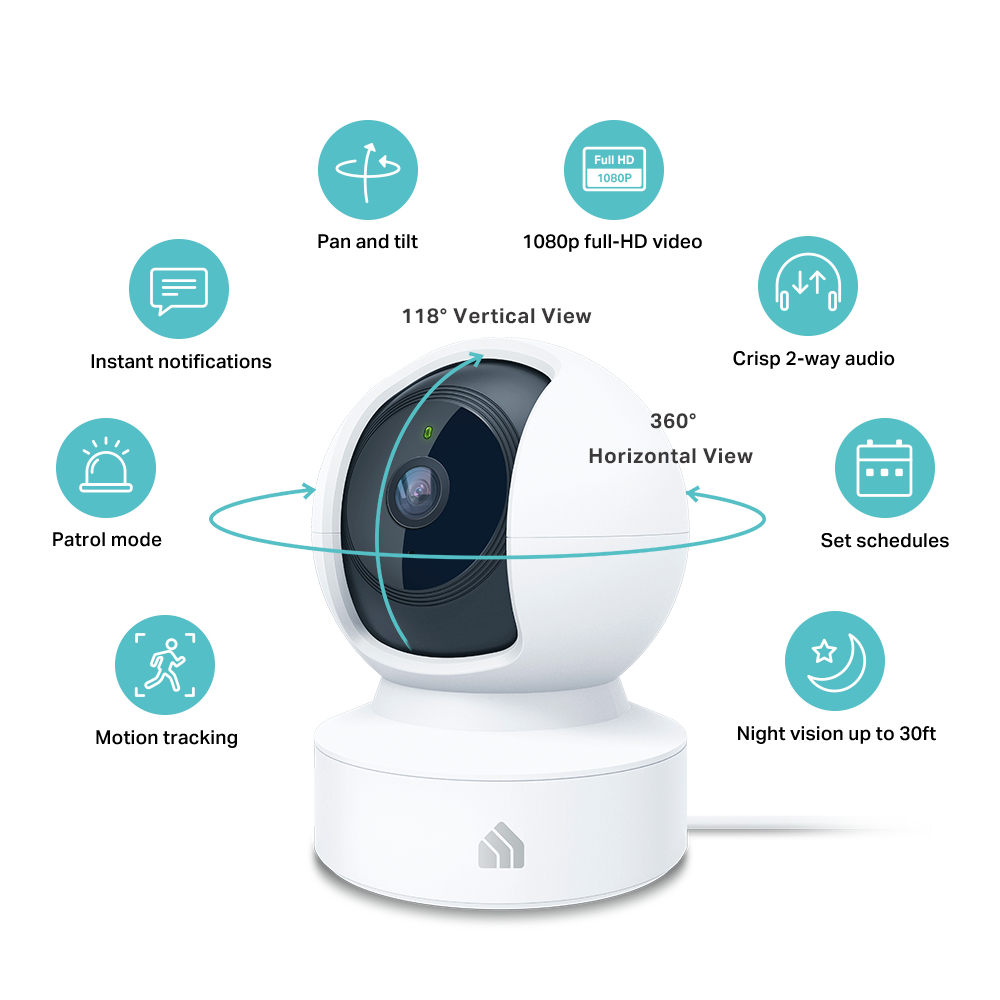

| Camera pan control | Yes |
| Camera tilt control | Yes |
| Tilt angle range | 0 - 120° |
| Pan range | 0 - 360° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 2.2 |
| Fixed focal length | 3.97 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 9 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264 |
| Supported video modes | 1080p |
| Video streaming | Yes |
| Full HD | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio formats supported | AAC |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | No |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | Wi-Fi |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 5 |
| DC output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 12 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82 mm |
| Depth | 82 mm |
| Height | 112.6 mm |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package width | 170 mm |
| Package depth | 170 mm |
| Package height | 100 mm |
| Package weight | 540 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Night mode | Yes |
