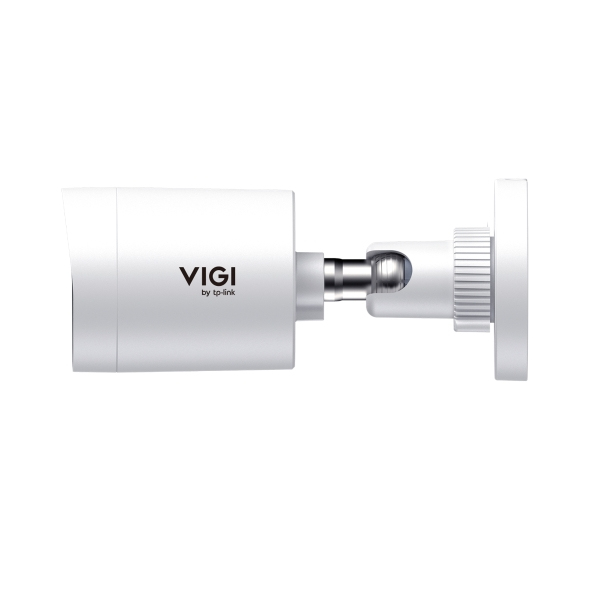

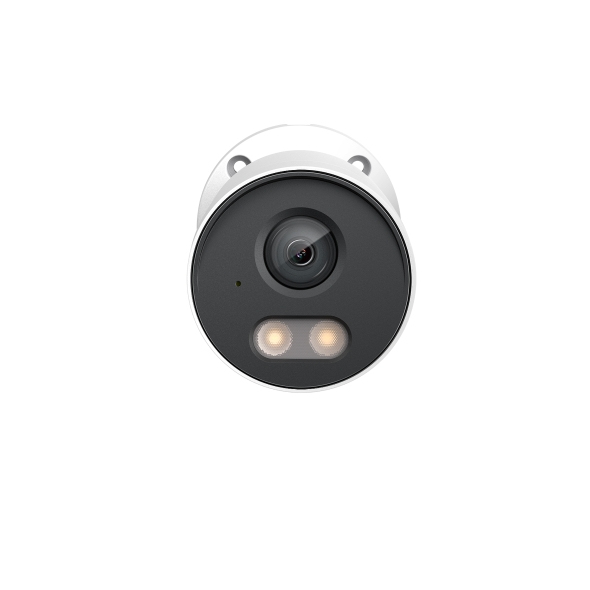

TP-Link InSight S325
TP-Link

InSight S325

Model InSight S325Part no. INSIGHT S325(2.8MM)EAN 1210002610322

75 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight353 g
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
353 g
Colour
White
Form factor
Bullet
Minimum illumination
0.005 lx
Brand
TP-Link
Model
InSight S325
Part numbers
INSIGHT S325(2.8MM), INSIGHT S325(4MM), INSIGHT S325 6MM
EAN / UPC
1210002610322, 1210002610728, 1210002607773
Also known as
TP-Link InSight S325 Bullet IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

75 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Infrared (IR) cut-off filterYes

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.005 lx
Angle of rotation360°
Lens viewing angle, horizontal98.8°
Lens viewing angle, vertical53.5°
Lens viewing angle, diagonal117°
Tilt angle range0 - 90°
Pan range0 - 360°
Camera shutter speed1/3 - 1/10000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Detect distance47 m
Observe distance19 m
Recognize distance9 m
Identify distance5 m
Maximum aperture number2
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR/White
Infra-red wavelength850 nm

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rateMain Stream: 256 Kbps - 4 Mbps; Sub-Stream: 64 Kbps - 512 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)52 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP

Storage

Built-in HDDNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Password protectionYes
Active tampering alarmYes
Digest authenticationYes
HTTPS encryptionYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresHuman detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Vehicle detection
Privacy protectionYes
Video motion detectionYes

Management features

Web browserYes
Cloud-managedYes

Power

Power source typeDC, PoE
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Diameter7.4 cm
Length169.8 mm
Weight353 g

Sustainability

Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), KC, VCCI

Packaging content

Number of cameras1
