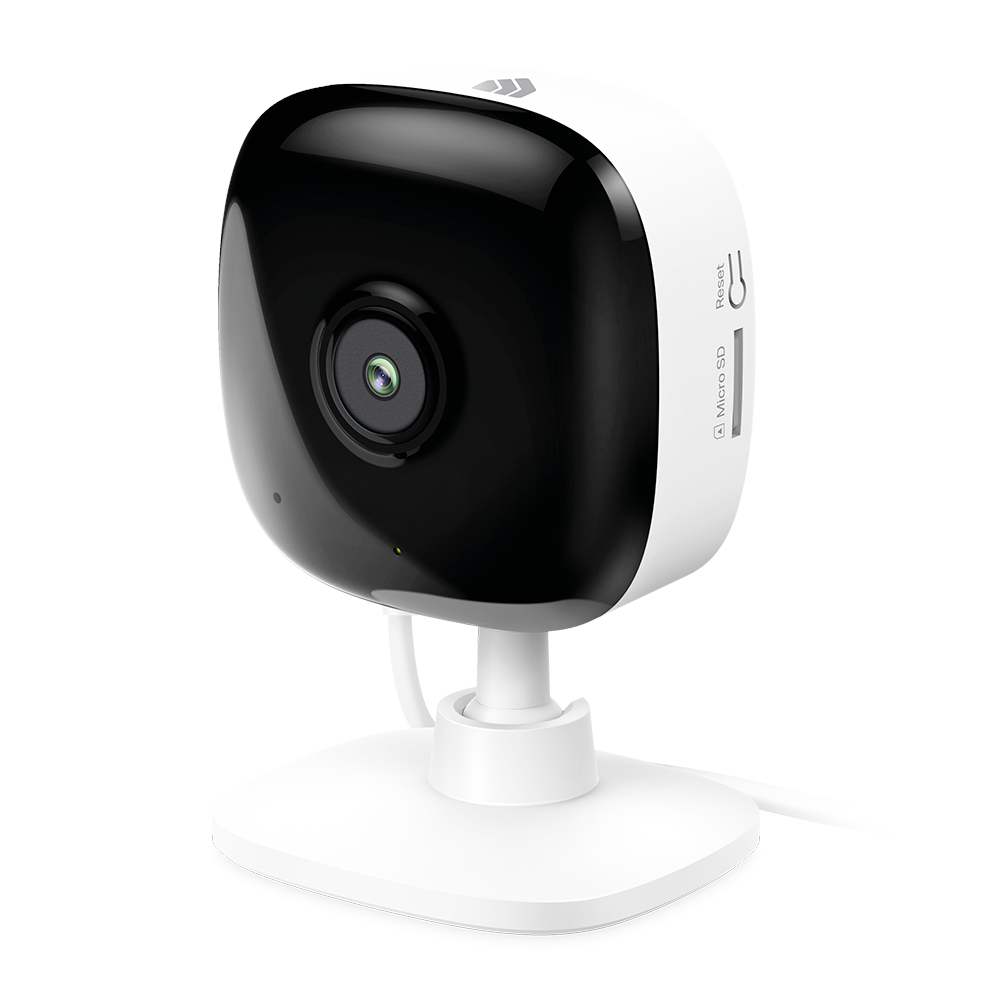

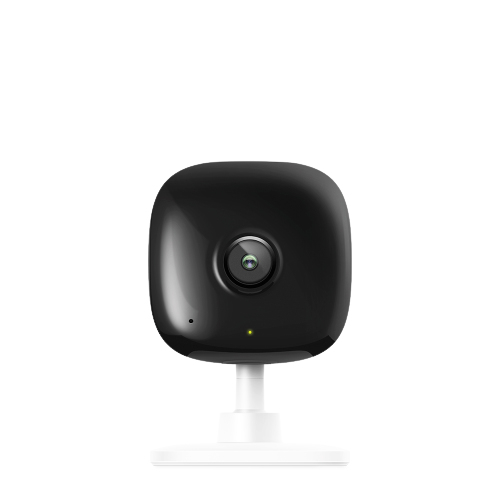

TP-Link EC60 security camera Cube IP security camera Indoor
TP-Link

EC60 security camera Cube IP security camera Indoor

1920 x 1080 pixels Ceiling/Wall/Desk

Model EC60EAN 840030701917

66 specifications
  • ConnectivityWired
  • TypeIP security camera
  • ColourWhite
  • Form factorCube
  • Field of view (FOV) angle130°
  • Number of sensors1
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Colour
White
Form factor
Cube
Field of view (FOV) angle
130°
Number of sensors
1
Brand
TP-Link
Model
EC60
Part number
EC60
EAN / UPC
840030701917
Also known as
TP-Link EC60 security camera Cube IP security camera Indoor 1920 x 1080 pixels Ceiling/Wall/Desk

Specifications

66 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Day/night modeYes
Remote viewingYes

Design

Form factorCube
Mounting typeCeiling/Wall/Desk
Product colourWhite
LED indicatorsSystem

Camera

Field of view (FOV) angle130°

Image sensor

Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Effective sensor resolution1080 pixels

Lens system

Number of lenses1
Focal length range3.3 mm
Maximum aperture number2

Night vision

Night visionYes
Night vision distance9.14 m
LED typeIR
Infra-red wavelength850 nm

Video

Maximum resolution1920 x 1080 pixels
Video formats supportedH.264
Frame rate15 fps

Audio

Built-in speaker(s)Yes
Audio system2-way
Built-in microphoneYes
Audio detectionYes

Network

Ethernet LANNo
Wi-FiYes
BluetoothNo
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)72.2 Mbit/s
Frequency band2.4 GHz
Live viewYes
Works with Amazon AlexaYes
Works with the Google AssistantYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size64 GB

Ports & interfaces

USB portYes

Security

Alert notification typePush notification
Security algorithms128-bit AES, WEP, WPA2-PSK
Video motion detectionYes

Management features

Reset buttonYes
Smartphone/tablet remote supportYes

Power

Power source typeAC, USB
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
DC output voltage5
DC output current1 A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

System requirements

Mobile operating systems supportedAndroid 10, Android 10.0, Android 11.0, Android 12.0, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 14, iOS 14.5, iOS 15
App required for full functionalityYes

Weight & dimensions

Width59 mm
Depth49.6 mm
Height88.6 mm

Packaging content

Number of cameras1
Cables includedUSB
Mounting kitYes
Screws includedYes
Packaging contentQuick Start Guide
