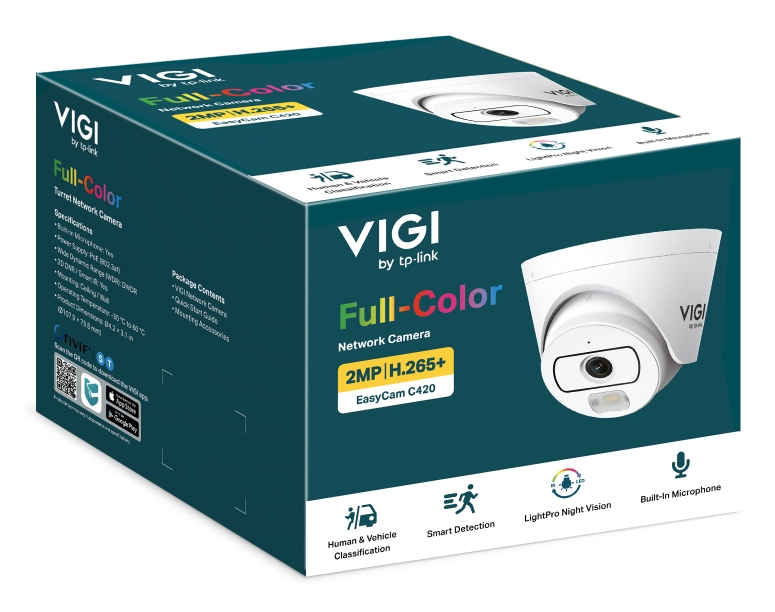

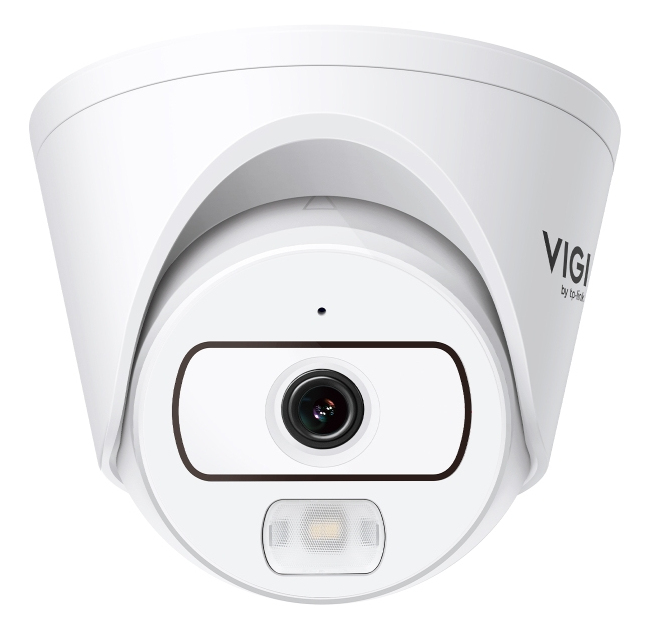

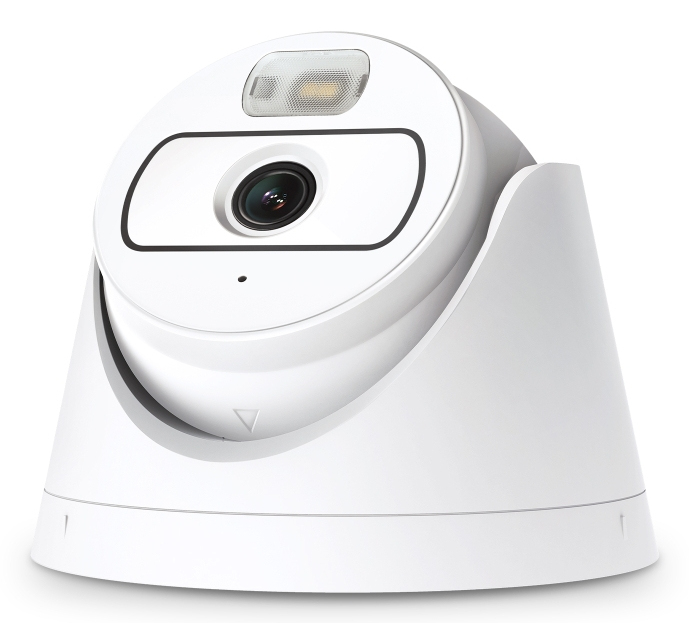

TP-Link EasyCam C420
TP-Link

EasyCam C420

Model EasyCam C420Part no. EASYCAM C420 4MMEAN 1210002607735

79 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight165 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
165 g
Colour
White
Form factor
Dome
Minimum illumination
0.005 lx
Brand
TP-Link
Model
EasyCam C420
Part numbers
EASYCAM C420 4MM, EASYCAM C420 2.8MM
EAN / UPC
1210002607735, 1210002606660
Also known as
TP-Link VIGI EasyCam C420 Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

79 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialPlastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.005 lx
Angle of rotation360°
Lens viewing angle, horizontal75.2°
Lens viewing angle, vertical40.8°
Lens viewing angle, diagonal88.3°
Tilt angle range0 - 75°
Pan range0 - 360°
Camera shutter speed1/3 - 1/10000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Detect distance59 m
Observe distance25 m
Recognize distance12 m
Identify distance6 m
Maximum aperture number2
Fixed focal length4 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR/White
Number of illumination LEDs2
Infra-red wavelength850 nm

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rateMain Stream: 256 Kbps - 4 Mbps; Sub-Stream: 64 Kbps - 512 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)52 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP

Storage

Built-in HDDNo

Security

Password protectionYes
Active tampering alarmYes
Digest authenticationYes
HTTPS encryptionYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresHuman detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Vehicle detection
Privacy protectionYes
Video motion detectionYes

Management features

Web browserYes
Cloud-managedYes

Power

Power source typeDC, PoE
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Diameter10.8 cm
Length79.8 mm
Weight165 g

Sustainability

Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), KC, VCCI

Packaging content

Number of cameras1
Mounting kitYes
ManualYes
