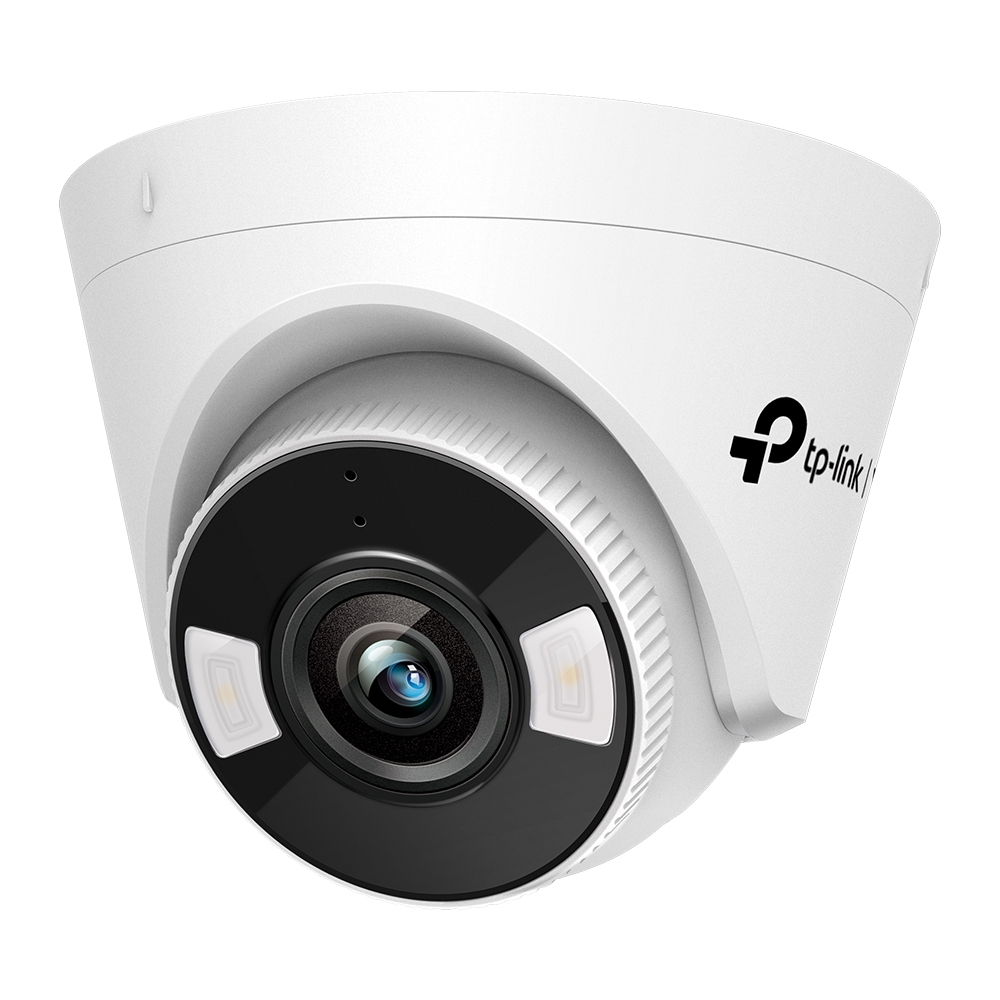

VIGI 5MP Full-Color Turret Network Camera
Model C450Part no. VIGI C450(2.8MM)EAN 4895252503036
102 specifications
- ConnectivityWired
- TypeIP security camera
- Weight240 g
- ColourBlack, White
- Form factorTurret
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 240 g
- Colour
- Black, White
- Form factor
- Turret
- Minimum illumination
- 0.005 lx
- Brand
- TP-Link
- Category
- Security Camera
- Model
- C450
- Part numbers
- VIGI C450(2.8MM), VIGI C450(4MM)
- EAN / UPC
- 4895252503036, 4895252503012, 4895252503029, 4895252503043
- Also known as
- TP-Link VIGI 5MP Full-Color Turret Network Camera
Specifications
102 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Built-in light | Yes |
| Dynamic range | 120 dB |
| Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 90° |
| Lens viewing angle, vertical | 48° |
| Lens viewing angle, diagonal | 107° |
| Tilt angle range | 0 - 85° |
| Pan range | 0 - 360° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Panoramic camera
| Specification | Value |
|---|---|
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 80 m |
| Observe distance | 33 m |
| Recognize distance | 16 m |
| Identify distance | 8 m |
| Maximum aperture number | 1.6 |
| Fixed focal length | 4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620 |
| Supported video modes | 720p, 1080p, 2560p, 2880p |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 64 Kbps - 6 Mbps |
| Bit rate control | Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Built-in microphone | Yes |
| Voice codecs | G.711 |
| Bit rate range | 0 - 64 Kbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Live view | Yes |
| Number of simultaneous live view channels | 6 channels |
| Client interoperability | VIGI App, VIGI Security Manager, Web UI |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Active tampering alarm | Yes |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 9 W |
| Power consumption (Power over Ethernet (PoE)) | 10.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 84 mm |
| Diameter | 12.3 cm |
| Weight | 240 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 163 mm |
| Package depth | 163 mm |
| Package height | 116 mm |
| Package weight | 400 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
