TP-Link C240I (4mm)
TP-Link

C240I (4mm)

Model C240I (4mm)Part no. VIGI C240I(4MM)EAN 4897098688915

69 specifications
  • ConnectivityWired
  • TypeIP security camera
  • ColourBlack, White
  • Form factorDome
  • Minimum illumination0 lx
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Colour
Black, White
Form factor
Dome
Minimum illumination
0 lx
Sensor type
CMOS
Brand
TP-Link
Model
C240I (4mm)
Part number
VIGI C240I(4MM)
EAN / UPC
4897098688915
Also known as

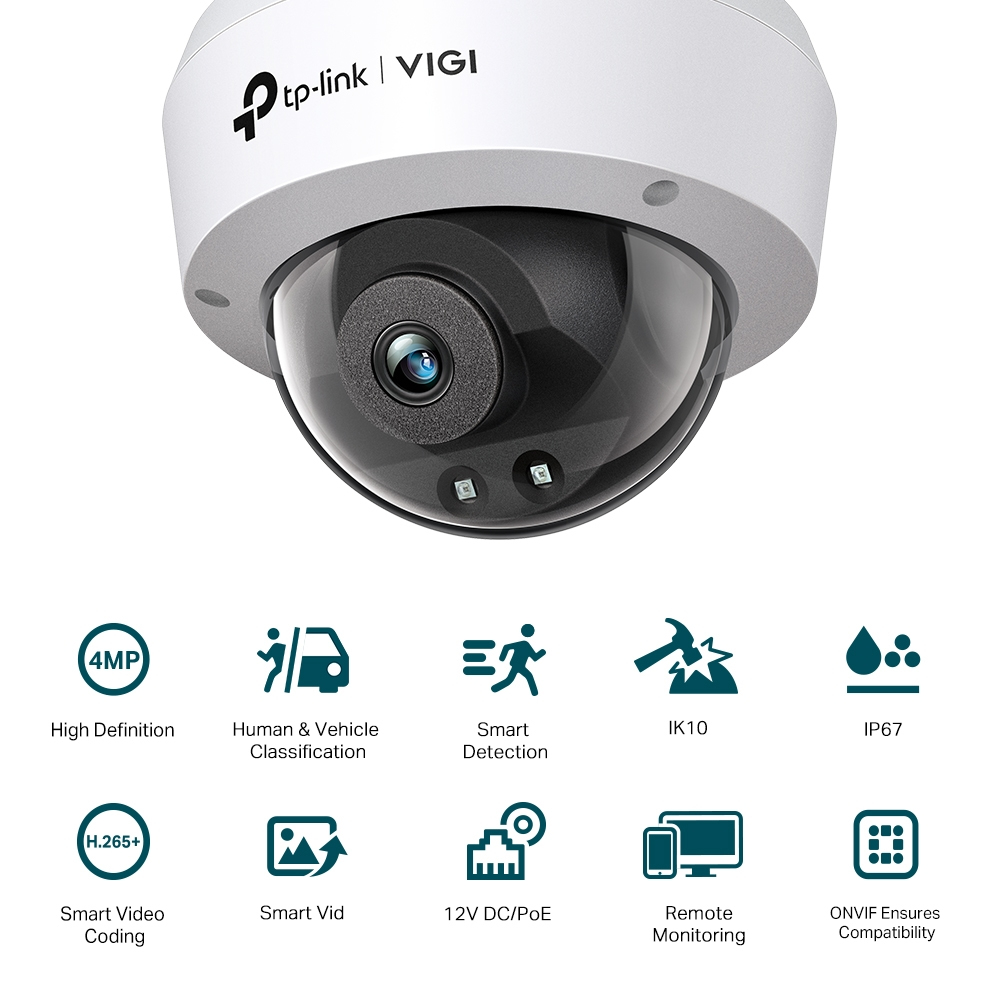

TP-Link VIGI 4MP IR Dome Network Camera

Specifications

69 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeYes
CertificationCE, BSMI, VCCI, ONVIF

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialPlastic

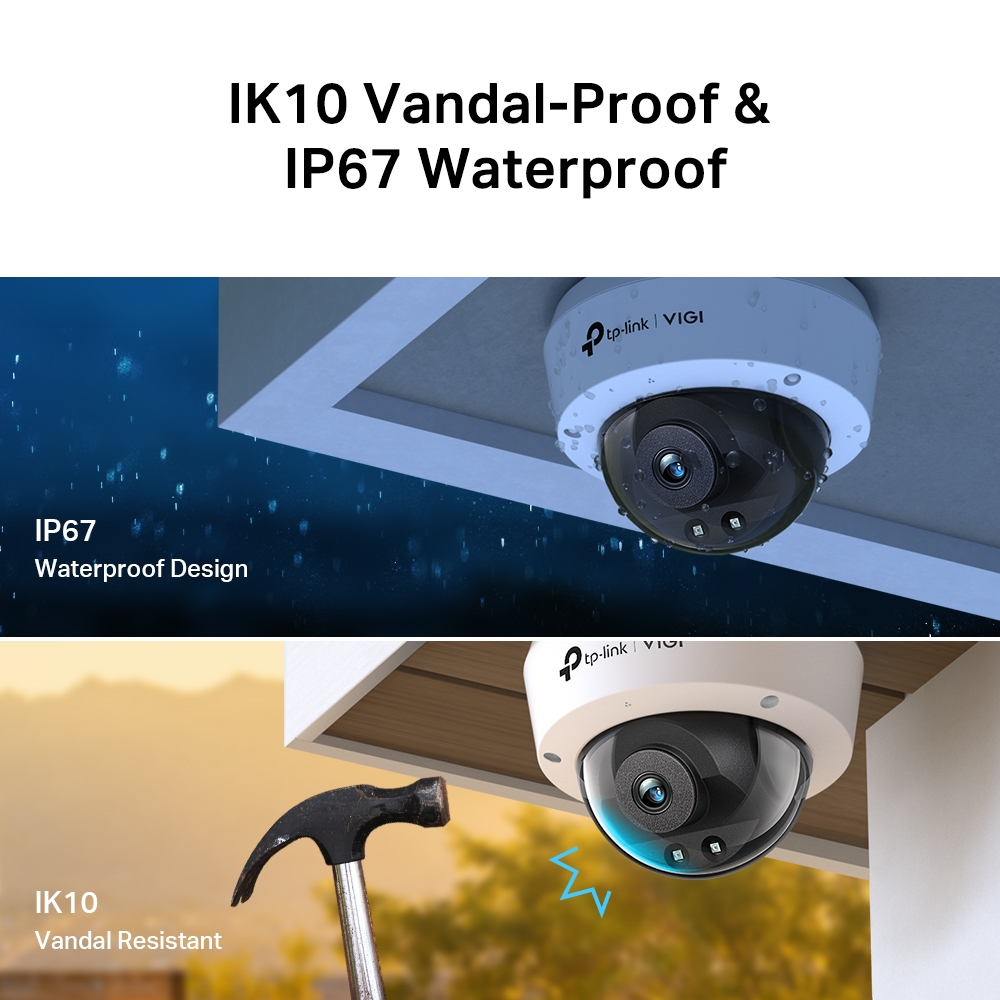

International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal75.1°
Lens viewing angle, vertical41.5°
Lens viewing angle, diagonal88.7°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")

Lens system

Number of lenses1
Lens diameter4 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1
Infra-red wavelength850 nm

Video

Maximum resolution2560 x 1440 pixels

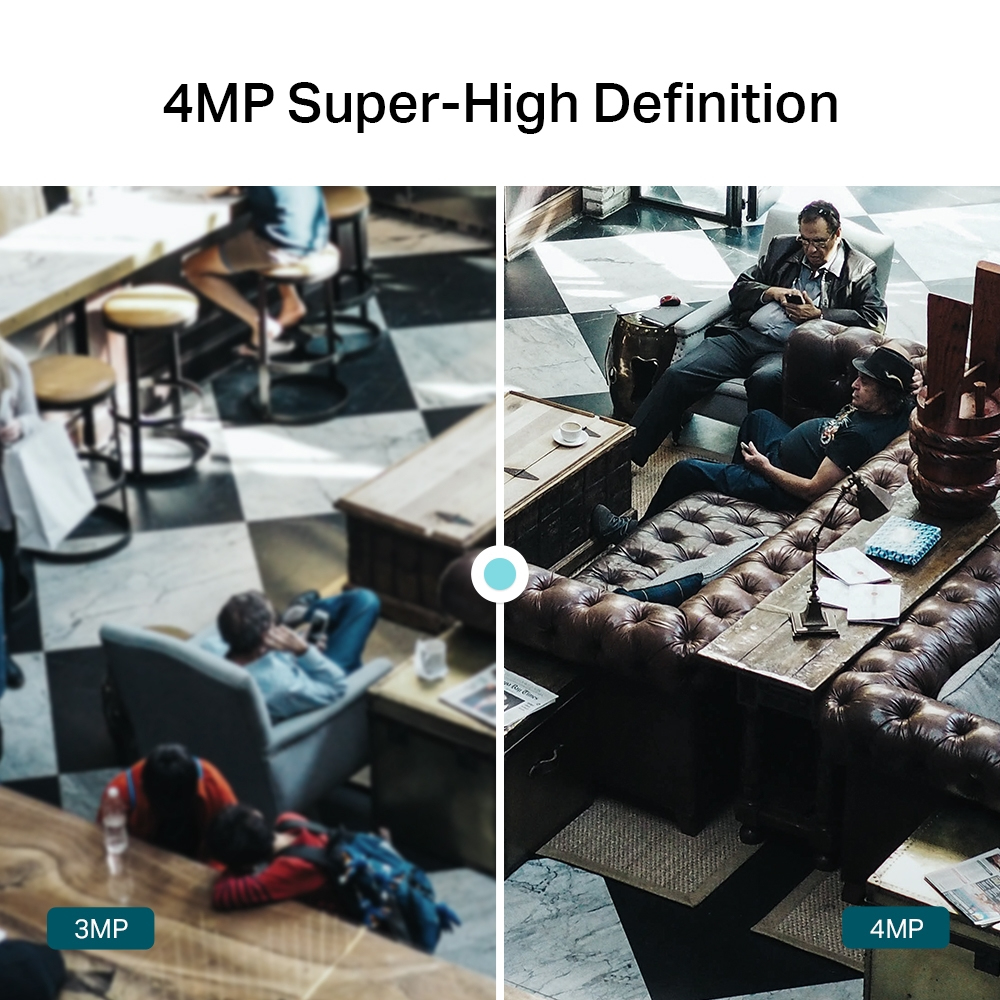

Total megapixels4 MP

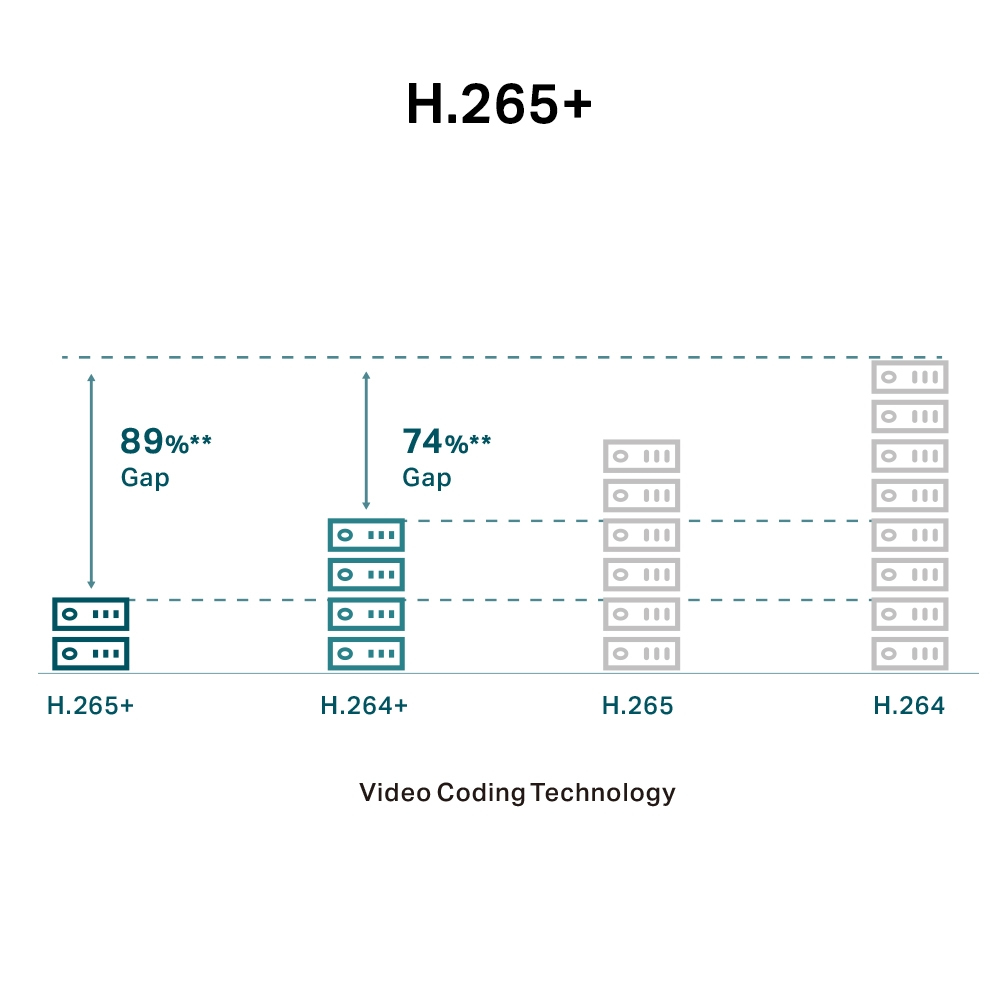

Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate30 fps
Video streamingYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rate64 Kbps - 4 Mbps

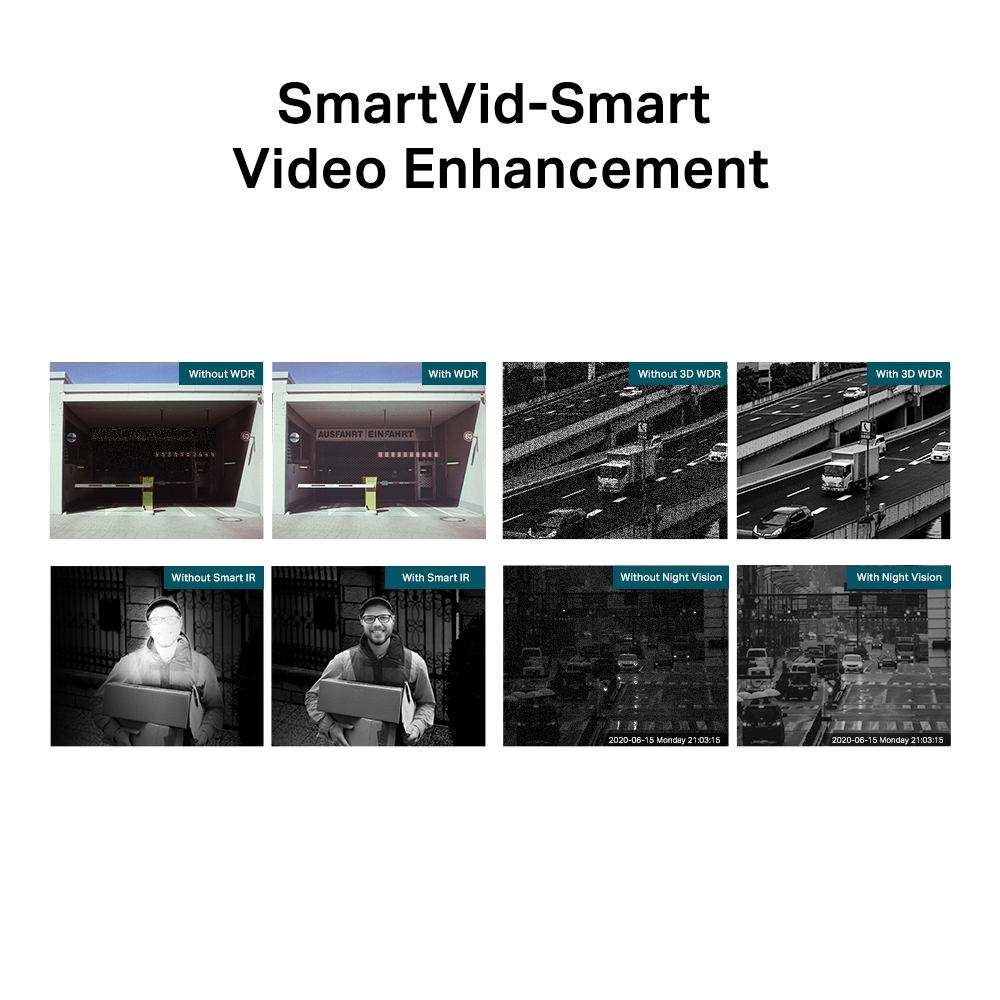

Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness, Contrast, Mirror, Saturation, Sharpness
Privacy maskingYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels3 channels

Storage

Built-in HDDNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Password protectionYes
Active tampering alarmYes
Digest authenticationYes
HTTPS encryptionYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Management softwareVIGI App, VIGI Security Manager, VIGI NVR

Power

Power source typePoE
Power consumption (max)5 W

Operational conditions

Operating temperature (T-T)-30 - 60 °C

Weight & dimensions

Width115 mm
Depth115 mm
Height86 mm

Features

Basic eventMotion Detection, Camera Tampering Detection, Exception

Sustainability

Compliance certificatesCE

Packaging data

Package width153 mm
Package depth193 mm
Package height120 mm
Package weight450 g

Packaging content

Number of cameras1
Mounting kitYes
