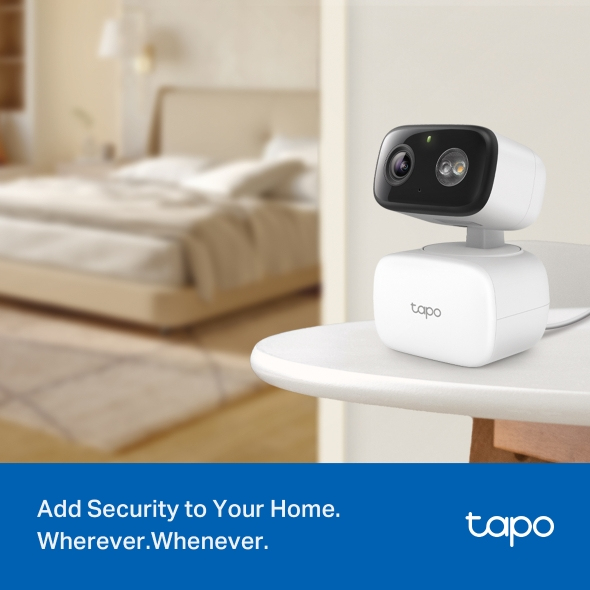

Tapo C206 IP security camera Indoor
1920 x 1080 pixels Desk
Model C206Part no. TAPO C206EAN 840460601207
59 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight220 g
- ColourWhite
- Mounting typeDesk
- Lens viewing angle, horizontal85°
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 220 g
- Colour
- White
- Mounting type
- Desk
- Lens viewing angle, horizontal
- 85°
- Brand
- TP-Link
- Category
- Security Camera
- Model
- C206
- Part number
- TAPO C206
- EAN / UPC
- 840460601207, 1210002602624, 1210002602655
- Also known as
- TP-Link Tapo C206 IP security camera Indoor 1920 x 1080 pixels Desk
Specifications
59 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
Design
| Specification | Value |
|---|---|
| Mounting type | Desk |
| Product colour | White |
| International Protection (IP) code | IP65 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 85° |
| Lens viewing angle, vertical | 73.5° |
| Lens viewing angle, diagonal | 41° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focal length | 4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 12 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264 |
| Video compression formats | H.264 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 72.2 Mbit/s |
| Live view | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Cloud-managed | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 2.3 W |
| Power consumption (max) | 5 W |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105.3 mm |
| Depth | 77.8 mm |
| Height | 69.8 mm |
| Weight | 220 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
