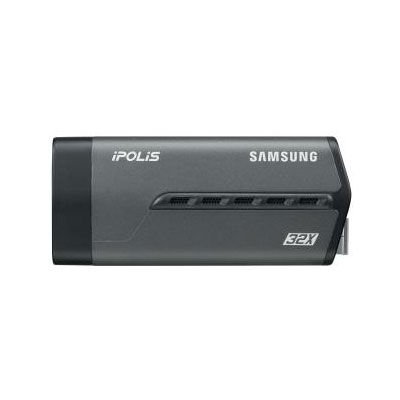

Samsung SNZ-6320 Box IP security camera Indoor

1952 x 1116 pixels Wall

Model SNZ-6320Part no. SNZ-6320P

74 specifications

ConnectivityWired
TypeIP security camera
Weight540 g
ColourGrey
Form factorBox
Minimum illumination0.015 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 540 g
Colour: Grey
Form factor: Box
Minimum illumination: 0.015 lx

Brand: Samsung
Category: Security Camera
Model: SNZ-6320
Part number: SNZ-6320P
Also known as: Samsung SNZ-6320 Box IP security camera Indoor 1952 x 1116 pixels Wall

Specifications

74 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Languages support	Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, SER, Swedish, Turkish
Plug and Play	Yes

Design

Specification	Value
Form factor	Box
Mounting type	Wall
Product colour	Grey
LED indicators	Yes
Housing material	Metal

Camera

Specification	Value
Minimum illumination	0.015 lx
Lens viewing angle, horizontal	62.8°
Lens viewing angle, vertical	36.8°
White balance	ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor
Camera shutter type	Electronic
Camera shutter speed	2 - 1/12000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	32x
Digital zoom	16x
Focal length range	4.44 - 142.6 mm
Auto focus	Yes
Focus adjustment	1.6

Night vision

Specification	Value
Night vision	No

Video

Specification	Value
Maximum resolution	1952 x 1116 pixels
Total megapixels	2.38 MP
Video formats supported	H.264, M-JPEG, MPEG4
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 180, 320 x 240, 640 x 480 (VGA), 720 x 576, 800 x 450, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes	720p, 1080p
Frame rate	60 fps
Noise reduction	Yes
Image stabilizer	Yes
Automatic gain control	Yes
Flip & mirror	Yes
Full HD	Yes
Privacy masking	Yes

Audio

Specification	Value
Audio formats supported	G.711, G.726
Signal-to-Noise Ratio (SNR)	50 dB
Voice codecs	G.711, G.726
Audio detection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Networking standards	IEEE 802.3af
Number of users	10 user(s)
Quality of Service (QoS) support	Yes

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Ports & interfaces

Specification	Value
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Active tampering alarm	Yes
Alert notification type	E-mail
HTTPS encryption	Yes
IP address filtering	Yes
Security algorithms	HTTPS, SNMP, SSL/TLS
Video motion detection	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (max)	9 W
Power consumption (Power over Ethernet (PoE))	10 W
DC output voltage	12
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-30 - 60 °C

Weight & dimensions

Specification	Value
Width	72 mm
Depth	135.4 mm
Height	59.9 mm
Weight	540 g

Packaging content

Specification	Value
Number of cameras	1

Technical details

Specification	Value
Iris	Yes
