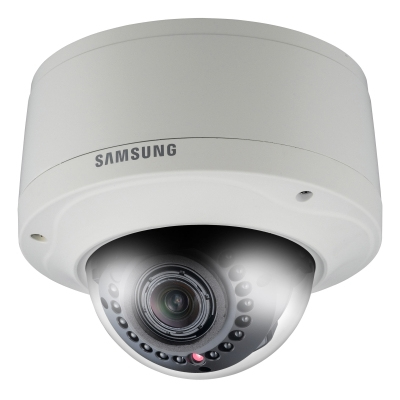

Samsung SNV-5080R Dome IP security camera Indoor & outdoor

1280 x 1024 pixels Ceiling

Model SNV-5080RPart no. SNV-5080RP

69 specifications

ConnectivityWired
TypeIP security camera
Weight1.4 kg
ColourIvory
Form factorDome
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 1.4 kg
Colour: Ivory
Form factor: Dome
Minimum illumination: 0 lx

Brand: Samsung
Category: Security Camera
Model: SNV-5080R
Part number: SNV-5080RP
Also known as: Samsung SNV-5080R Dome IP security camera Indoor & outdoor 1280 x 1024 pixels Ceiling

Specifications

69 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	Ivory
Housing material	Aluminium
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0 lx
Angle of rotation	355°
Lens viewing angle, horizontal	94°
Lens viewing angle, vertical	32.9°
Tilt angle range	0 - 90°
Pan range	0 - 355°
White balance	Manual
Camera shutter speed	1/30 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Optical zoom	2.8x
Focal length range	3 - 8.5 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	15 m
LED type	IR
Number of illumination LEDs	15

Video

Specification	Value
Maximum resolution	1280 x 1024 pixels
Total megapixels	3.1 MP
Video formats supported	H.264, MPEG, MPEG4
Supported graphics resolutions	320 x 240, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes	720p
Frame rate	30 fps

Audio

Specification	Value
Signal-to-Noise Ratio (SNR)	50 dB

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, ONVIF
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Card reader integrated	Yes
Compatible memory cards	SD, SDHC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
RS-485 ports	1
Composite video out	1
Microphone in	Yes
Interface	RJ-45

Security

Specification	Value
IP address filtering	Yes
Security algorithms	HTTPS
Video motion detection	Yes

Power

Specification	Value
Power source type	PoE
Power consumption	800 mA
Power consumption (typical)	11 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 50 °C
Operating relative humidity (H-H)	0 - 90%

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Height	134.5 mm
Diameter	16 cm
Weight	1.4 kg

Packaging content

Specification	Value
Manual	Yes
User guide	Yes
Bundled software	NET-i viewer

Other features

Specification	Value
Compliance industry standards	IEEE 802.1x, 802.3af
F-number (relative aperture)	1.2
Number of simultaneous users	10 user(s)
Power requirements	12V DC, 24V AC, PoE (IEEE802.3af)
I/O ports	Line in, Line out
