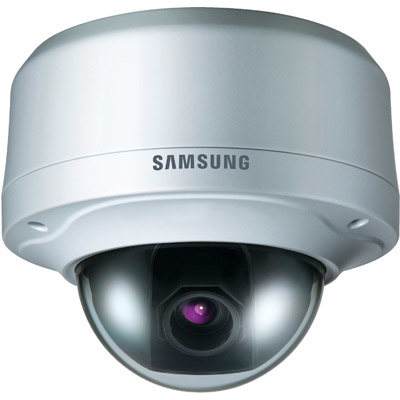

Samsung SNV-3120 Dome IP security camera Indoor & outdoor

Samsung SNV-3120 Dome IP security camera Indoor & outdoor

704 x 480 pixels Ceiling

Model SNV-3120Part no. SNV-3120PEAN 5055751512574

63 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.5 kg
  • ColourGrey
  • Form factorDome
  • Minimum illumination0.00023 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.5 kg
Colour
Grey
Form factor
Dome
Minimum illumination
0.00023 lx
Brand
Samsung
Model
SNV-3120
Part number
SNV-3120P
EAN / UPC
5055751512574, 6950207316845
Also known as
Samsung SNV-3120 Dome IP security camera Indoor & outdoor 704 x 480 pixels Ceiling

Specifications

63 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling
Product colourGrey
LED indicatorsYes
Housing materialAluminium
International Protection (IP) codeIP66

Camera

Minimum illumination0.00023 lx
Camera shutter speed1/60 s

Image sensor

Sensor typeCCD
Optical sensor size25.4 / 4 mm (1 / 4")
Progressive scanYes

Lens system

Optical zoom12x
Digital zoom16x

Night vision

Night visionYes
LED typeIR

Video

Maximum resolution704 x 480 pixels
Video formats supportedH.264, MPEG, MPEG4
Supported graphics resolutions704 x 576, 640 x 480 (VGA)
Frame rate30 fps
Analog signal format systemNTSC, PAL
NTSC resolutions811 x 508 pixels
PAL resolutions795 x 596 pixels
Number of TV lines600

Audio

Frequency range50 - 60 Hz
Signal-to-Noise Ratio (SNR)52 dB

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF TCP/IP, HTTP, HTTPS, SSL, DHCP
Cabling technology10/100Base-T(X)

Storage

Card reader integratedYes
Compatible memory cardsSD, SDHC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
InterfaceRJ-45

Security

Active tampering alarmYes
IP address filteringYes
Security algorithmsHTTPS
Video motion detectionYes

Power

Power source typePoE
AC input frequency50 - 60 Hz
Power consumption (typical)11 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 50 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes
Minimum RAM256 MB

Weight & dimensions

Width160 mm
Height34.5 mm
Weight1.5 kg

Sustainability

Compliance certificatesRoHS

Packaging content

ManualYes
User guideYes

Other features

Compliance industry standardsIEEE 802.1x, 802.3af
F-number (relative aperture)2.01
Number of simultaneous users20 user(s)
