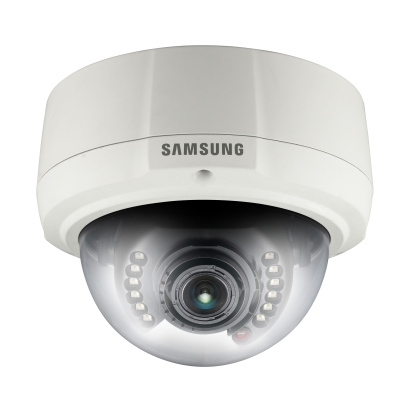

Samsung SNV-1080R security camera Dome IP security camera Indoor & outdoor

Samsung SNV-1080R security camera Dome IP security camera Indoor & outdoor

640 x 480 pixels Ceiling

Model SNV-1080REAN 6950207316982

56 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight786 g
  • ColourIvory
  • Form factorDome
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
786 g
Colour
Ivory
Form factor
Dome
Minimum illumination
0 lx
Brand
Samsung
Model
SNV-1080R
Part numbers
SNV-1080R, SNV-1080RP
EAN / UPC
6950207316982
Also known as
Samsung SNV-1080R security camera Dome IP security camera Indoor & outdoor 640 x 480 pixels Ceiling

Specifications

56 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Day/night modeYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling
Product colourIvory
Housing materialAluminium
International Protection (IP) codeIP66

Camera

Minimum illumination0 lx
Angle of rotation351°
Lens viewing angle, horizontal94°
Lens viewing angle, vertical70°
Tilt angle range17 - 90°
Pan range0 - 352°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Optical zoom3.5x
Focal length range2.2 - 7.7 mm

Night vision

Night visionYes
Night vision distance15 m
LED typeIR
Number of illumination LEDs12

Video

Maximum resolution640 x 480 pixels
Video formats supportedH.264, MPEG
Supported graphics resolutions160 x 120, 320 x 240, 640 x 480 (VGA)
Frame rate30 fps

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
Cabling technology10/100Base-T(X)

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), microSDHC

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

IP address filteringYes
Video motion detectionYes

Power

Power source typePoE
AC input voltage12 V
Power consumption (typical)6.2 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)-20 - 80%

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Height106 mm
Diameter13.7 cm
Weight786 g

Sustainability

Compliance certificatesRoHS

Packaging content

ManualYes
User guideYes

Other features

Compliance industry standardsIEEE 802.1x, 802.3af
F-number (relative aperture)1.2
Number of simultaneous users10 user(s)
