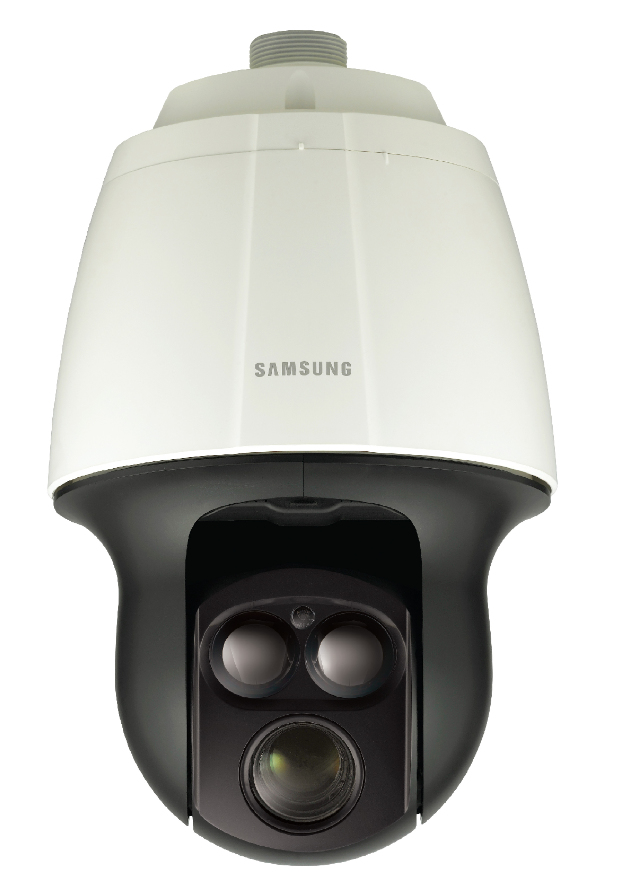

SNP-6200RH security camera Dome IP security camera
1920 x 1080 pixels Ceiling/wall
Model SNP-6200RHEAN 015568554230
60 specifications
- ConnectivityWired
- TypeIP security camera
- Weight6.6 kg
- ColourBlack, White
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 6.6 kg
- Colour
- Black, White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- Samsung
- Category
- Security Camera
- Model
- SNP-6200RH
- Part numbers
- SNP-6200RH, SNP-6200RHP
- EAN / UPC
- 015568554230, 6950207323515, 6950207323539
- Also known as
- Samsung SNP-6200RH security camera Dome IP security camera 1920 x 1080 pixels Ceiling/wall
Specifications
60 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Maximum operating distance | 100 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Tilt angle range | -5 - 185° |
| Tilt speed | 250 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 250 °/sec |
| White balance | Manual, Outdoor |
| Camera shutter speed | 1/25 - 1/33000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 20x |
| Digital zoom | 8x |
| Focal length range | 4.45 - 89 mm |
| Normal focusing range | 1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, M-JPEG |
| Supported graphics resolutions | 320 x 240, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes | 1080p, 720p |
| Frame rate | 25 fps |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 50 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Motion sensor | Yes |
| Security algorithms | HTTPS |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 24 V |
| Power consumption (typical) | 30 W |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -50 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 399.5 mm |
| Diameter | 24.8 cm |
| Weight | 6.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
