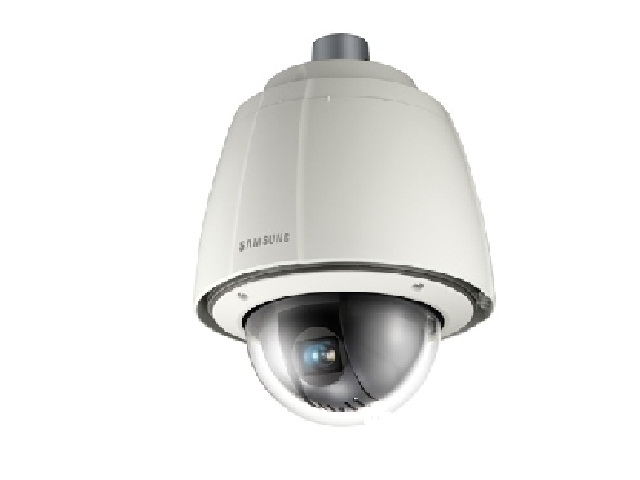

Samsung SNP-6200HP security camera Dome CCTV security camera Indoor & outdoor

Samsung SNP-6200HP security camera Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model SNP-6200HPEAN 6950207317842

66 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight4.6 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.1 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
4.6 kg
Colour
White
Form factor
Dome
Minimum illumination
0.1 lx
Brand
Samsung
Model
SNP-6200HP
Part number
SNP-6200HP
EAN / UPC
6950207317842
Also known as
Samsung SNP-6200HP security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

66 specifications in 15 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
GPS (satellite)No

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Protection featuresWater resistant
International Protection (IP) codeIP66

Camera

Minimum illumination0.1 lx
Lens viewing angle, horizontal55.5°
Lens viewing angle, vertical43.32°
Tilt angle range-5 - 185°
Tilt speed500 °/sec
Pan range0 - 360°
Pan speed500 °/sec
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/33000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Optical zoom20x
Digital zoom8x
Focal length range4.45 - 89 mm
Normal focusing range1 m

Night vision

Night visionYes
LED typeIR
Number of illumination LEDs50

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, M-JPEG
Supported graphics resolutions320 x 240, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080p
Frame rate30 fps
Analog signal format systemNTSC, PAL

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolstCP/iP, UdP/iP, rtP(UdP), rtP(tCP), rtsP, ntP, HttP, HttPs, ssL, dHCP, PPPoe, FtP, sMtP
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-422 ports1
RS-485 ports1
DC-in jackYes
InterfaceRJ-45

Power

Power source typePoE
Power consumption (typical)25 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width248 mm
Depth248 mm
Height316.5 mm
Diameter24.8 cm
Weight4.6 kg

Packaging content

ManualYes
