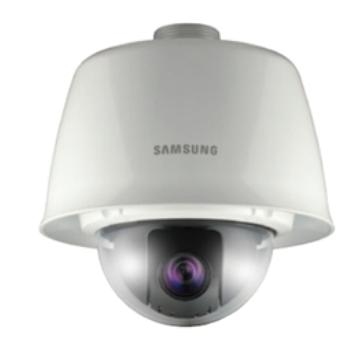

Samsung SNP-3120VH security camera Dome CCTV security camera Indoor & outdoor

811 x 508 pixels Ceiling/wall

Model SNP-3120VHEAN 854432530822

72 specifications

ConnectivityWired
TypeCCTV security camera
Weight1.2 kg
ColourIvory
Form factorDome
Minimum illumination0.001 lx

See all specifications

Overview

Connectivity: Wired
Type: CCTV security camera
Weight: 1.2 kg
Colour: Ivory
Form factor: Dome
Minimum illumination: 0.001 lx

Brand: Samsung
Category: Security Camera
Model: SNP-3120VH
Part number: SNP-3120VH
EAN / UPC: 854432530822
Also known as: Samsung SNP-3120VH security camera Dome CCTV security camera Indoor & outdoor 811 x 508 pixels Ceiling/wall

Specifications

72 specifications in 17 groups

Performance

Specification	Value
Type	CCTV security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Ivory
Housing material	Aluminium
Protection features	Vandal proof
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0.001 lx
Lens viewing angle, horizontal	54.44°
Lens viewing angle, vertical	42.32°
Tilt angle range	-85 - 185°
Tilt speed	650 °/sec
Pan range	0 - 360°
Pan speed	650 °/sec
White balance	ATW, AWC, Manual
Camera shutter type	Electronic
Camera shutter speed	1/10000 s

Image sensor

Specification	Value
Sensor type	CCD
Optical sensor size	25.4 / 4 mm (1 / 4")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	12x
Digital zoom	16x
Focal length range	3.69 - 44.32 mm

Night vision

Specification	Value
Night vision	Yes

Video

Specification	Value
Maximum resolution	811 x 508 pixels
Video formats supported	H.264, MPEG4
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 704 x 480, 768 x 494
Frame rate	30 fps
Analog signal format system	NTSC
Noise reduction	Yes
Automatic gain control	Yes
Flip & mirror	Yes
Image quality adjustment	Contrast
Privacy masking	Yes
Number of TV lines	600

Audio

Specification	Value
Signal-to-Noise Ratio (SNR)	50 dB
Voice codecs	G.711

Network

Specification	Value
Ethernet LAN	Yes
Networking standards	IEEE 802.3at
Supported network protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS
Cabling technology	10/100Base-T(X)
Number of users	10 user(s)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
RS-485 ports	1
Microphone in	Yes

Security

Specification	Value
IP address filtering	Yes
Motion sensor	Yes
Security algorithms	HTTPS

Power

Specification	Value
Power source type	PoE
AC input voltage	24 V
Power consumption (max)	15 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 90%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	174 mm
Height	168 mm
Weight	1.2 kg

Technical details

Specification	Value
Output impedance	75 Ω
