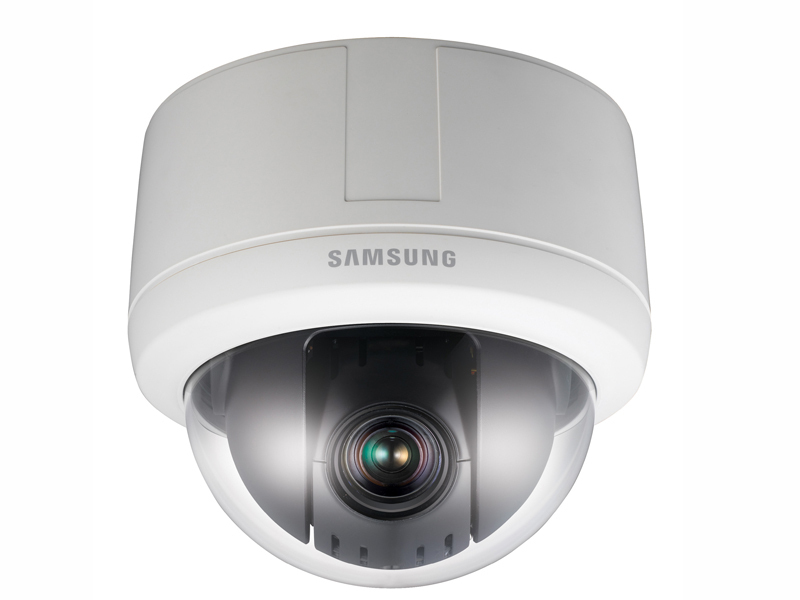

Samsung SNP-3120P security camera Dome CCTV security camera Indoor & outdoor

Samsung SNP-3120P security camera Dome CCTV security camera Indoor & outdoor

704 x 576 pixels Ceiling

Model SNP-3120PEAN 6950207312168

62 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight1.2 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.07 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
1.2 kg
Colour
White
Form factor
Dome
Minimum illumination
0.07 lx
Brand
Samsung
Model
SNP-3120P
Part number
SNP-3120P
EAN / UPC
6950207312168, 8801089047687
Also known as
Samsung SNP-3120P security camera Dome CCTV security camera Indoor & outdoor 704 x 576 pixels Ceiling

Specifications

62 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
GPS (satellite)No

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP66

Camera

Minimum illumination0.07 lx
Lens viewing angle, horizontal54.44°
Lens viewing angle, vertical42.32°
Tilt angle range-5 - 185°
Tilt speed650 °/sec
Pan range0 - 360°
Pan speed650 °/sec
White balanceManual
Camera shutter typeElectronic
Camera shutter speed1/100000 s

Image sensor

Sensor typeCCD
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Optical zoom12x
Digital zoom16x
Focal length range3.69 - 44.32 mm

Night vision

Night visionYes
LED typeIR
Number of illumination LEDs50

Video

Maximum resolution704 x 576 pixels
Video formats supportedH.264, M-JPEG, MPEG4
Supported graphics resolutions320 x 240, 704 x 576, 640 x 480 (VGA)
Frame rate25 fps
Analog signal format systemPAL
Number of TV lines600

Audio

Frequency range15.625 - 50 Hz
Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
DC-in jackYes
InterfaceRJ-45

Security

IP address filteringYes
Security algorithmsHTTPS
Video motion detectionYes

Power

Power source typePoE
Power consumption (typical)15 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-50 - 50 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width174 mm
Depth174 mm
Height168 mm
Diameter17.4 cm
Weight1.2 kg

Packaging content

ManualYes
User guideYes
