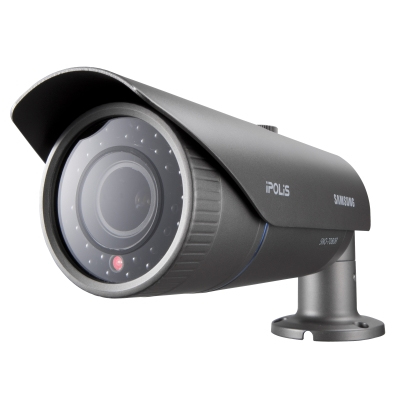

Samsung SNO-7080R Bullet IP security camera Indoor & outdoor

2048 x 1536 pixels Wall

Model SNO-7080REAN 8801089058997

61 specifications

ConnectivityWired
TypeIP security camera
Weight1.8 kg
ColourGrey
Form factorBullet
Minimum illumination0.017 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 1.8 kg
Colour: Grey
Form factor: Bullet
Minimum illumination: 0.017 lx

Brand: Samsung
Category: Security Camera
Model: SNO-7080R
Part numbers: SNO-7080R, SNO-7080RP
EAN / UPC: 8801089058997, 5711045420238, 6950207316265, 5060368951388 +1 more
Also known as: Samsung SNO-7080R Bullet IP security camera Indoor & outdoor 2048 x 1536 pixels Wall

Specifications

61 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes

Design

Specification	Value
Form factor	Bullet
Mounting type	Wall
Product colour	Grey
Housing material	Metal
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0.017 lx
Lens viewing angle, horizontal	94°
Lens viewing angle, vertical	69.86°
White balance	Manual
Camera shutter speed	1/30 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")

Lens system

Specification	Value
Optical zoom	2.8x
Focal length range	3 - 8.5 mm

Night vision

Specification	Value
Night vision	Yes
LED type	IR
Number of illumination LEDs	32

Video

Specification	Value
Maximum resolution	2048 x 1536 pixels
Total megapixels	3 MP
Video formats supported	H.264, MPEG
Supported graphics resolutions	320 x 240, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes	1080p

Audio

Specification	Value
Signal-to-Noise Ratio (SNR)	50 dB

Network

Specification	Value
Ethernet LAN	Yes
Supported network protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE,FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Flash memory	4096 MB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Composite video out	1
Microphone in	Yes
Interface	RJ-45

Security

Specification	Value
IP address filtering	Yes
Security algorithms	HTTPS
Video motion detection	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (typical)	16.5 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-50 - 50 °C
Operating relative humidity (H-H)	0 - 90%

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Height	388 mm
Diameter	11.4 cm
Weight	1.8 kg

Packaging content

Specification	Value
Manual	Yes
User guide	Yes
Bundled software	NET-i viewer

Other features

Specification	Value
Compatible operating systems	Windows XP, VISTA, 7, MAC OS
Compliance industry standards	IEEE 802.1x, 802.3af
Number of simultaneous users	10 user(s)
Power requirements	12V DC, 24V AC, PoE (IEEE802.3af)
I/O ports	Line in, Line out
