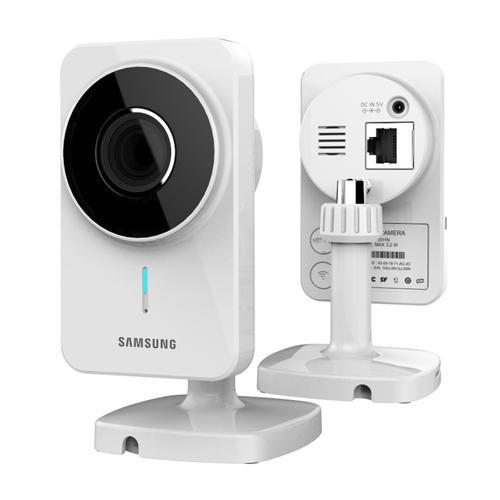

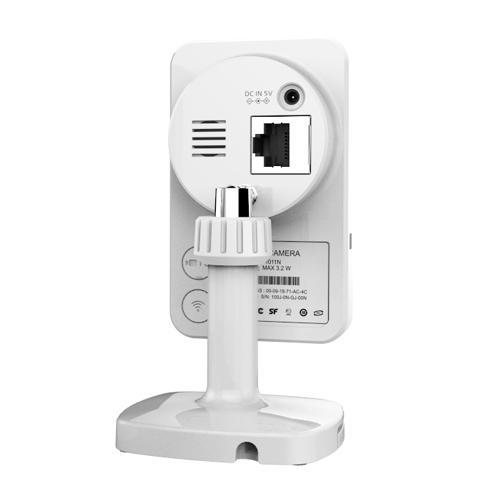

SNH-1011N Cube IP security camera Indoor
640 x 480 pixels
Model SNH-1011NPart no. SNH-1011NV/EXEAN 6950207317958
46 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight140 g
- ColourWhite
- Form factorCube
- Tilt angle range0 - 120°
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 140 g
- Colour
- White
- Form factor
- Cube
- Tilt angle range
- 0 - 120°
- Brand
- Samsung
- Category
- Security Camera
- Model
- SNH-1011N
- Part number
- SNH-1011NV/EX
- EAN / UPC
- 6950207317958, 6950207323867
- Also known as
- Samsung SNH-1011N Cube IP security camera Indoor 640 x 480 pixels
Specifications
46 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Product colour | White |
| LED indicators | Link, Power, Status |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Tilt angle range | 0 - 120° |
| Pan range | -15 - 15° |
| White balance | Auto |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 5 mm (1 / 5") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Fixed focal length | 2.87 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 640 x 480 pixels |
| Video formats supported | H.264, M-JPEG |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA) |
| Frame rate | 30 fps |
| Full HD | No |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Supported network protocols | TCP/IP, DHCP, SMTP, DNS, RTSP, RTCP, RTP, HTTP, TCP, UDP, STUN, XMPP, SIP, uPNP, ICE, SNTP, IPv4/v6, ICMP, Bonjour |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows Vista Home Basic, Windows XP Home |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 30.1 mm |
| Height | 90 mm |
| Weight | 140 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210 mm |
| Package depth | 140 mm |
| Package height | 105 mm |
| Package weight | 607 g |
