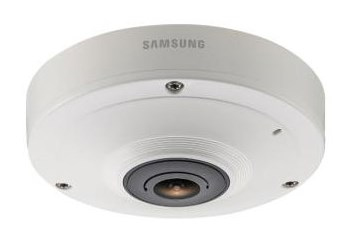

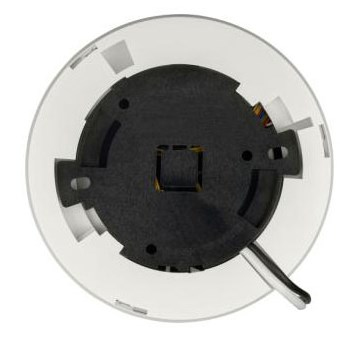

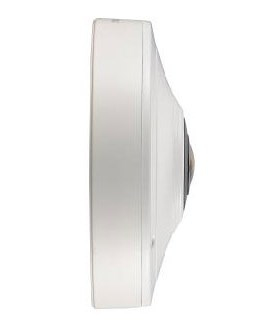

SNF-7010V security camera Dome IP security camera Indoor Ceiling
Model SNF-7010VEAN 6950207324536
46 specifications
- ConnectivityWired
- TypeIP security camera
- Weight550 g
- ColourWhite
- Form factorDome
- Minimum illumination1.3 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 550 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 1.3 lx
- Brand
- Samsung
- Category
- Security Camera
- Model
- SNF-7010V
- Part number
- SNF-7010V
- EAN / UPC
- 6950207324536
- Also known as
- Samsung SNF-7010V security camera Dome IP security camera Indoor Ceiling
Specifications
46 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 1.3 lx |
| Angle of rotation | 355° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.3 mm (1 / 2.3") |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | No |
| Optical zoom | 0x |
| Fixed focal length | 1.05 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | No |
Video
| Specification | Value |
|---|---|
| Video formats supported | H.264 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 20 fps |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 7.4 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 128.8 mm |
| Depth | 128.8 mm |
| Height | 58.8 mm |
| Weight | 550 g |
