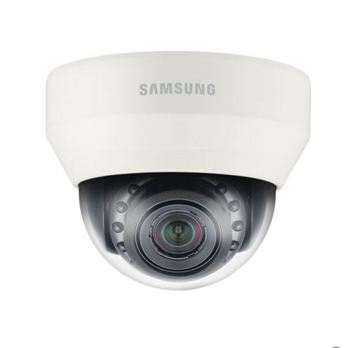

Samsung SND-7084R security camera Dome IP security camera Indoor & outdoor

2048 x 1536 pixels Ceiling/wall

Model SND-7084REAN 5712505345375

82 specifications

ConnectivityWired
TypeIP security camera
Weight575 g
ColourIvory, White
Form factorDome
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 575 g
Colour: Ivory, White
Form factor: Dome
Minimum illumination: 0 lx

Brand: Samsung
Category: Security Camera
Model: SND-7084R
Part number: SND-7084R
EAN / UPC: 5712505345375, 8801089102218
Also known as: Samsung SND-7084R security camera Dome IP security camera Indoor & outdoor 2048 x 1536 pixels Ceiling/wall

Specifications

82 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Languages support	Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Swedish, Turkish

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Ivory, White
Housing material	Aluminium

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	100.12°
Lens viewing angle, vertical	73.76°
Tilt angle range	0 - 67°
Pan range	0 - 354°
White balance	ATW, AWC, Manual
Camera shutter type	Electronic
Camera shutter speed	1/12000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	2.8x
Focal length range	3 - 8.5 mm
Maximum aperture number	1.2

Night vision

Specification	Value
Night vision	Yes
LED type	IR
Number of illumination LEDs	12

Video

Specification	Value
Maximum resolution	2048 x 1536 pixels
Total megapixels	3 MP
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 180, 320 x 240, 640 x 360, 640 x 480 (VGA), 800 x 450, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Supported video modes	720p, 1080p
Frame rate	60 fps
Noise reduction	Yes
Automatic gain control	Yes
Flip & mirror	Yes
Full HD	Yes
Image quality adjustment	Contrast
Privacy masking	Yes

Audio

Specification	Value
Audio formats supported	G.711
Signal-to-Noise Ratio (SNR)	50 dB
Built-in microphone	Yes
Voice codecs	G.726
Audio detection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Networking standards	IEEE 802.3af
Supported network protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Cabling technology	10/100Base-T(X)
Number of users	15 user(s)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Composite video out	1
Microphone in	Yes
DC-in jack	Yes

Security

Specification	Value
Active tampering alarm	Yes
Alert notification type	E-mail
IP address filtering	Yes
Motion sensor	Yes
Security algorithms	HTTPS

Power

Specification	Value
Power source type	PoE
Power consumption (max)	10 W
Power consumption (Power over Ethernet (PoE))	11 W
DC output voltage	12
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Mac operating systems supported	Mac OS X 10.7 Lion

Weight & dimensions

Specification	Value
Width	132.1 mm
Height	107.6 mm
Weight	575 g

Packaging content

Specification	Value
Mounting kit	Yes

Technical details

Specification	Value
Audio input	Yes
Output impedance	75 Ω
