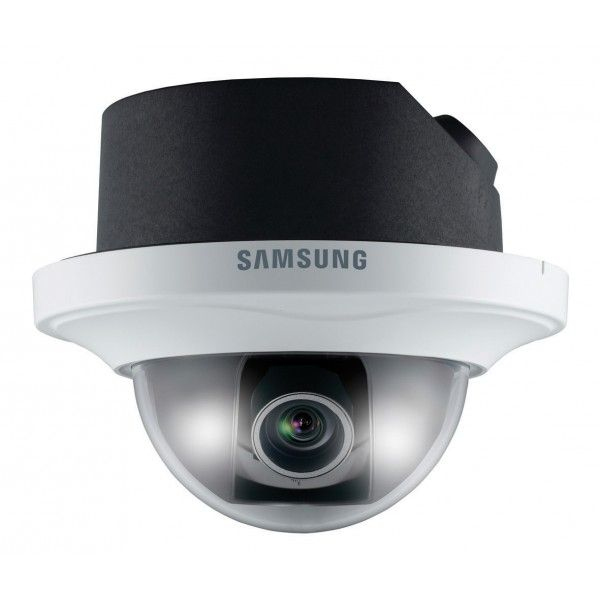

Samsung SND-7080F Dome IP security camera Indoor & outdoor

Samsung SND-7080F Dome IP security camera Indoor & outdoor

2048 x 1536 pixels Ceiling

Model SND-7080FPart no. SND-7080FPEAN 6950207314735

62 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight800 g
  • ColourIvory
  • Form factorDome
  • Minimum illumination0.001 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
800 g
Colour
Ivory
Form factor
Dome
Minimum illumination
0.001 lx
Brand
Samsung
Model
SND-7080F
Part number
SND-7080FP
EAN / UPC
6950207314735
Also known as
Samsung SND-7080F Dome IP security camera Indoor & outdoor 2048 x 1536 pixels Ceiling

Specifications

62 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling
Product colourIvory
Housing materialPlastic

Camera

Minimum illumination0.001 lx
Angle of rotation355°
Lens viewing angle, horizontal100°
Lens viewing angle, vertical74.6°
Tilt angle range0 - 90°
Pan range0 - 355°
White balanceManual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Optical zoom2.8x
Focal length range3 - 8.5 mm

Night vision

Night visionYes

Video

Maximum resolution2048 x 1536 pixels
Total megapixels3 MP
Video formats supportedH.264, MPEG
Supported graphics resolutions320 x 240, 640 x 400, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 800 x 600 (SVGA)
Supported video modes1080p, 720p
Frame rate30 fps

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS
Cabling technology10/100Base-T(X)

Storage

Card reader integratedYes
Compatible memory cardsSD, SDHC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
Composite video out1
Microphone inYes
InterfaceRJ-45

Security

IP address filteringYes
Security algorithmsHTTPS
Video motion detectionYes

Power

Power source typePoE
Power consumption (typical)8 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Height127 mm
Diameter16 cm
Weight800 g

Sustainability

Compliance certificatesRoHS

Packaging content

ManualYes
User guideYes

Other features

Compliance industry standardsIEEE 802.3af
F-number (relative aperture)1.2
Number of simultaneous users10 user(s)
Power requirements12V DC, 24V AC, PoE (IEEE802.3af)
