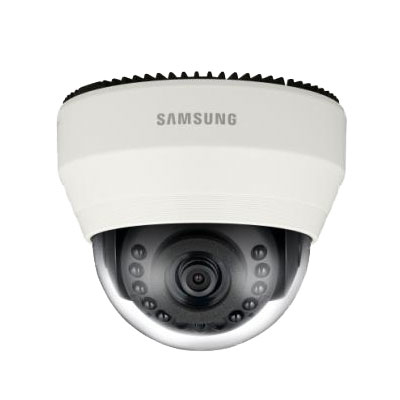

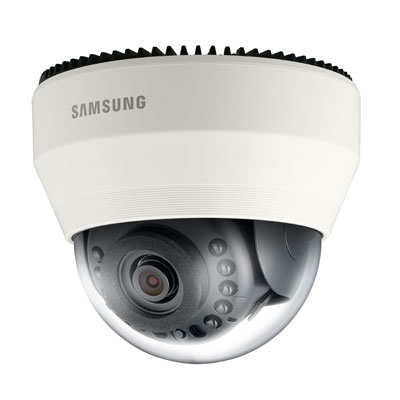

SND-6011R Dome IP security camera Indoor
1952 x 1236 pixels Ceiling
Model SND-6011RPart no. SND-6011RN
69 specifications
- ConnectivityWired
- TypeIP security camera
- Weight395 g
- ColourIvory
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 395 g
- Colour
- Ivory
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- Samsung
- Category
- Security Camera
- Model
- SND-6011R
- Part number
- SND-6011RN
- Also known as
- Samsung SND-6011R Dome IP security camera Indoor 1952 x 1236 pixels Ceiling
Specifications
69 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Swedish, Turkish |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Ivory |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 84.5° |
| Lens viewing angle, vertical | 45.8° |
| Lens viewing angle, diagonal | 98.8° |
| Tilt angle range | 0 - 67° |
| Pan range | 0 - 354° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30 - 1/12000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 3.8 mm |
| Focus adjustment | 2.0 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 10 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1952 x 1236 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, M-JPEG, MPEG4 |
| Video compression formats | H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 180, 320 x 240, 640 x 480 (VGA), 800 x 450, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Image stabilizer | Yes |
| Automatic gain control | Yes |
| Flip & mirror | Yes |
| Full HD | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 50 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking standards | IEEE 802.3af |
| Number of users | 15 user(s) |
| Quality of Service (QoS) support | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Active tampering alarm | Yes |
| Alert notification type | |
| HTTPS encryption | Yes |
| Security algorithms | HTTPS, SNMP, SSL/TLS |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 6.6 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 101.8 mm |
| Diameter | 12 cm |
| Weight | 395 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
