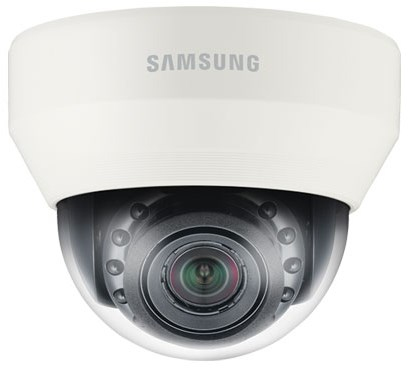

Samsung SND-5084R security camera Dome IP security camera Indoor

Samsung SND-5084R security camera Dome IP security camera Indoor

1312 x 1069 pixels Ceiling

Model SND-5084REAN 6950207335662

64 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight585 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
585 g
Colour
White
Form factor
Dome
Minimum illumination
0 lx
Brand
Samsung
Model
SND-5084R
Part number
SND-5084R
EAN / UPC
6950207335662, 634991211123, 6950207323676, 6950207336195 +1 more
Also known as
Samsung SND-5084R security camera Dome IP security camera Indoor 1312 x 1069 pixels Ceiling

Specifications

64 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite

Camera

Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal93.4°
Lens viewing angle, vertical73.8°
Tilt angle range0 - 67°
Pan range0 - 354°
White balanceATW, AWC, Indoor, Manual, Outdoor
Camera shutter typeElectronic

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")

Lens system

Zoom capabilityYes
Focal length range3 - 8.5 mm
Focus adjustment2.8
Normal focusing range0.5 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution1312 x 1069 pixels
Total megapixels1.37 MP
Video formats supportedH.264, M-JPEG, MPEG4
Supported graphics resolutions320 x 240, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes720p
Frame rate60 fps

Audio

Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Composite video out1
Microphone inYes
Headphone outputs1
InterfaceRJ-45

Security

Active tampering alarmYes
Motion sensorYes

Management features

Web-based managementYes

Power

Power source typePoE
Power consumption (max)10.5 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width132.1 mm
Depth132.1 mm
Height107.6 mm
Weight585 g

Packaging content

ManualYes

Other features

Compliance industry standardsIEEE 802.3af

Technical details

IrisYes
