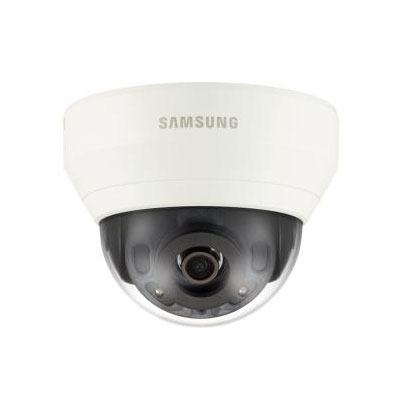

Samsung QND-6030R security camera Dome IP security camera Indoor

Samsung QND-6030R security camera Dome IP security camera Indoor

2000 x 1121 pixels Ceiling

Model QND-6030REAN 8801089078001

87 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight290 g
  • ColourIvory
  • Form factorDome
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
290 g
Colour
Ivory
Form factor
Dome
Minimum illumination
0 lx
Brand
Samsung
Model
QND-6030R
Part number
QND-6030R
EAN / UPC
8801089078001, 8801089100993
Also known as
Samsung QND-6030R security camera Dome IP security camera Indoor 2000 x 1121 pixels Ceiling

Specifications

87 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Remote viewingYes
Languages supportMulti
Number of languages17

Design

Form factorDome
Mounting typeCeiling
Product colourIvory
Housing materialPlastic
Protection featuresVandal proof
International Protection (IP) codeIP66
WeatherproofYes

Camera

Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal52.54°
Lens viewing angle, vertical28.86°
Lens viewing angle, diagonal61.14°
Tilt angle range0 - 67°
Pan range0 - 350°
White balanceATW, AWC, Indoor, Manual, Outdoor
Camera shutter typeElectronic

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes

Lens system

Zoom capabilityYes
Maximum aperture number1.8
Fixed focal length6 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR

Video

Maximum resolution2000 x 1121 pixels
Total megapixels2 MP
Video formats supportedH.264, H.265, M-JPEG
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes240p, 360p, 480p, 576p, 720p, 1080p
Frame rate15 fps
Noise reductionYes
Automatic gain controlYes
Flip & mirrorYes
Full HDYes
Privacy maskingYes

Audio

Audio system1-way
Audio system full duplexNo
Audio formats supportedG.711, G.726
Built-in microphoneYes
Voice codecsG.711, G.726

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Cabling technology10/100Base-T(X)
Number of users6 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inNo
InterfaceRJ-45

Security

Active tampering alarmYes
Alert notification typeE-mail
HTTPS encryptionYes
IP address filteringYes
Motion sensorYes
Security algorithmsHTTPS, SNMP, SSL/TLS

Management features

Web-based managementYes

Power

Power source typePoE
Power consumption (max)5.43 W
Power consumption (Power over Ethernet (PoE))6.5 W
DC output voltage12
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks

Weight & dimensions

Height86 mm
Diameter11 cm
Weight290 g

Packaging content

Number of cameras1

Other features

Browser supportedGoogle Chrome 47, MS Edge 20, S Explore 11, Mozilla Firefox 43, Apple Safari 9
