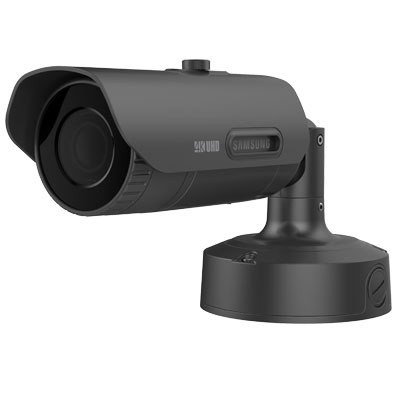

Samsung PNO-9080R security camera Bullet IP security camera Outdoor

Samsung PNO-9080R security camera Bullet IP security camera Outdoor

4168 x 3062 pixels Wall

Model PNO-9080REAN 8801089101068

95 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.4 kg
  • ColourGrey
  • Form factorBullet
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.4 kg
Colour
Grey
Form factor
Bullet
Minimum illumination
0 lx
Brand
Samsung
Model
PNO-9080R
Part number
PNO-9080R
EAN / UPC
8801089101068, 8801089124562
Also known as
Samsung PNO-9080R security camera Bullet IP security camera Outdoor 4168 x 3062 pixels Wall

Specifications

95 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Remote viewingYes
Languages supportMulti
Number of languages16

Design

Form factorBullet
Mounting typeWall
Product colourGrey
Housing materialAluminium
Protection featuresVandal proof
International Protection (IP) codeIP66
WeatherproofYes

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal100.3°
Lens viewing angle, vertical49.7°
White balanceATW, AWC, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed2 - 1/12000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.7 mm (1 / 1.7")
Progressive scanYes

Lens system

Zoom capabilityYes
Focal length range4.5 - 10 mm
Maximum aperture number1.6

Night vision

Night visionYes
Night vision distance40 m
LED typeIR

Video

Maximum resolution4168 x 3062 pixels
Total megapixels12.4 MP
Video formats supportedH.264, H.265, M-JPEG
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2592 x 1944, 3840 x 2160, 4096 x 2160
Supported video modes240p, 360p, 480p, 576p, 720p, 1080p, 2160p
Frame rate2 fps
Noise reductionYes
Flip & mirrorYes
Full HDYes
Privacy maskingYes

Audio

Audio system2-way
Audio system full duplexYes
Audio formats supportedG.711, G.726
Sample rate16 kHz
Signal-to-Noise Ratio (SNR)50 dB
Voice codecsG.711, G.726
Audio detectionYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
InterfaceRJ-45

Security

Active tampering alarmYes
Alert notification typeE-mail
HTTPS encryptionYes
IP address filteringYes
Motion sensorYes
Security algorithmsHTTPS, SNMP, SSL/TLS

Management features

Web-based managementYes

Power

Power source typePoE
AC input voltage24 V
AC input frequency50 - 60 Hz
Power consumption (max)11.55 W
Power consumption (Power over Ethernet (PoE))12.95 W
DC output voltage12
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 55 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks

Weight & dimensions

Width82.4 mm
Depth348.3 mm
Height87 mm
Weight1.4 kg

Packaging content

Number of cameras1
Sun shield includedNo

Other features

Audio output1
Browser supportedGoogle Chrome 47, MS Edge 20, S Explore 11, Mozilla Firefox 43, Apple Safari 9

Technical details

IrisYes
Maximum output level1 Vpp
Output impedance75 Ω
Video out1
