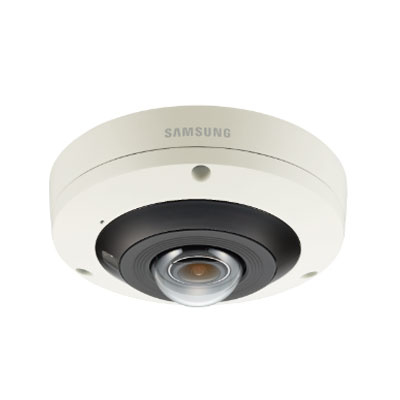

Samsung PNF-9010R security camera Dome IP security camera Indoor

Samsung PNF-9010R security camera Dome IP security camera Indoor

4168 x 3062 pixels Ceiling

Model PNF-9010REAN 8801089079640

93 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight805 g
  • ColourIvory
  • Form factorDome
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
805 g
Colour
Ivory
Form factor
Dome
Minimum illumination
0 lx
Brand
Samsung
Model
PNF-9010R
Part number
PNF-9010R
EAN / UPC
8801089079640, 8801089124524
Also known as
Samsung PNF-9010R security camera Dome IP security camera Indoor 4168 x 3062 pixels Ceiling

Specifications

93 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Remote viewingYes
Languages supportMulti
Number of languages17

Design

Form factorDome
Mounting typeCeiling
Product colourIvory
Housing materialPlastic
Protection featuresVandal proof
WeatherproofNo

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal180°
Lens viewing angle, vertical180°
Lens viewing angle, diagonal180°
White balanceATW, AWC, Indoor, Manual, Outdoor
Camera shutter typeElectronic

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.7 mm (1 / 1.7")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom16x
Maximum aperture number2.2
Fixed focal length2.1 mm

Night vision

Night visionYes
Night vision distance15 m
LED typeIR

Video

Maximum resolution4168 x 3062 pixels
Total megapixels12 MP
Video formats supportedH.264, H.265, M-JPEG
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions640 x 360, 640 x 480 (VGA), 704 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1920
Supported video modes360p, 480p, 576p, 720p, 1080p, 1440p
Frame rate15 fps
Noise reductionYes
Flip & mirrorYes
Full HDYes
Privacy maskingYes

Audio

Built-in speaker(s)No
Audio system2-way
Audio system full duplexYes
Audio formats supportedG.711, G.726
Sample rate16 kHz
Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes
Voice codecsG.711, G.726
Audio detectionYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
InterfaceRJ-45

Security

Active tampering alarmYes
Alert notification typeE-mail
HTTPS encryptionYes
IP address filteringYes
Motion sensorYes
Security algorithmsHTTPS, SNMP, SSL/TLS

Management features

Web-based managementYes

Power

Power source typePoE
Power consumption (max)11 W
Power consumption (Power over Ethernet (PoE))12 W
DC output voltage12
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks

Weight & dimensions

Height63.4 mm
Diameter14.6 cm
Weight805 g

Packaging content

Number of cameras1

Other features

Audio output1
Browser supportedGoogle Chrome 47, MS Edge 20, S Explore 11, Mozilla Firefox 43, Apple Safari 9

Technical details

Maximum output level1 Vpp
Output impedance75 Ω
Video out1
