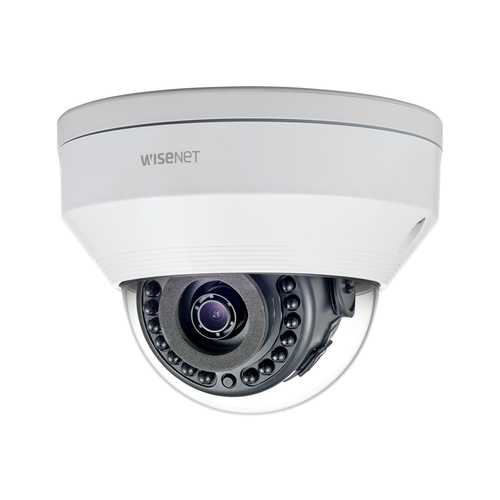

Samsung LNV-6010R security camera Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling

Model LNV-6010R

67 specifications

ConnectivityWired
TypeIP security camera
Weight395 g
ColourWhite
Form factorDome
Minimum illumination0.18 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 395 g
Colour: White
Form factor: Dome
Minimum illumination: 0.18 lx

Brand: Samsung
Category: Security Camera
Model: LNV-6010R
Part number: LNV-6010R
Also known as: Samsung LNV-6010R security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling

Specifications

67 specifications in 16 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Languages support	Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Swedish, Turkish
Number of languages	23

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White
Housing material	Aluminium, Plastic
International Protection (IP) code	IP66
IK code	IK10

Camera

Specification	Value
Minimum illumination	0.18 lx
Angle of rotation	355°
Lens viewing angle, horizontal	102°
Lens viewing angle, vertical	54°
Lens viewing angle, diagonal	120°
Tilt angle range	0 - 67°
Pan range	0 - 350°
White balance	ATW, AWC, Indoor, Manual, Outdoor

Image sensor

Specification	Value
Sensor type	CMOS
Number of sensors	1
Optical sensor size	25.4 / 2.9 mm (1 / 2.9")
Progressive scan	Yes
Number of effective pixels (H x V)	1984 x 1105 pixels

Lens system

Specification	Value
Number of lenses	1
Maximum aperture number	2
Closest focusing distance	0.5 m
Fixed focal length	3 mm

Night vision

Specification	Value
Night vision	Yes
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2.19 MP
Video formats supported	H.264
Video compression formats	H.264
Supported graphics resolutions	320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Back Light Compensation (BLC)	Yes
Flip & mirror	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Cabling technology	10/100Base-T(X)
Number of users	6 user(s)
Streaming method	Multicast, Unicast

Storage

Specification	Value
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	32 GB

Security

Specification	Value
Mirror	Yes

Management features

Specification	Value
Web-based management	Yes
Web browser	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (Power over Ethernet (PoE))	6.5 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%

System requirements

Specification	Value
Mac compatibility	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra

Weight & dimensions

Specification	Value
Depth	91.7 mm
Diameter	12 cm
Weight	395 g

Packaging content

Specification	Value
Number of cameras	1
