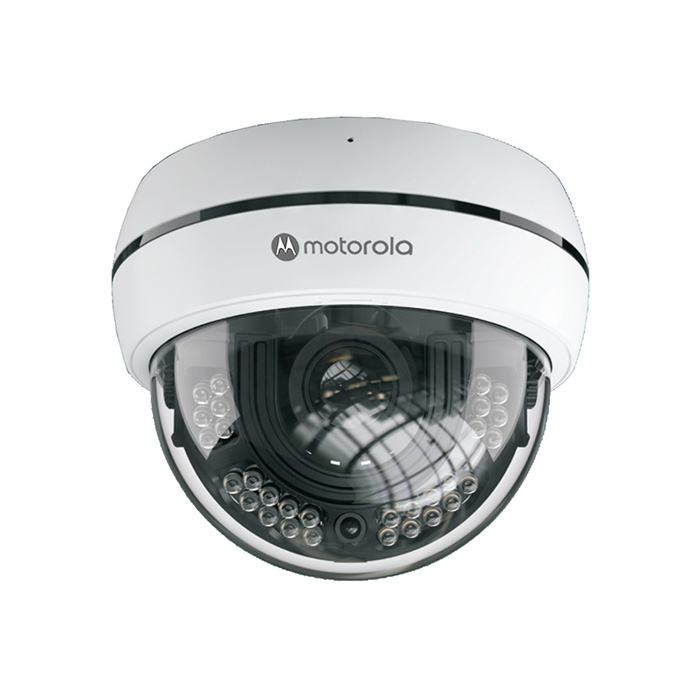

Motorola MTIDP042611 security camera Dome IP security camera Indoor & outdoor
Motorola

MTIDP042611 security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model MTIDP042611

85 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight350 g
  • ColourBlack, White
  • Form factorDome
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
350 g
Colour
Black, White
Form factor
Dome
Minimum illumination
0 lx
Brand
Motorola
Model
MTIDP042611
Part number
MTIDP042611
Also known as
Motorola MTIDP042611 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

85 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialPlastic
International Protection (IP) codeIP66
WeatherproofYes

Camera

Minimum illumination0 lx
Angle of rotation360°
Tilt angle range0 - 77°
Pan range0 - 360°
Auto flipYes
Camera shutter typeElectronic
Camera shutter speed1/25 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Focal length range2.8 - 12 mm
FocusManual
Maximum aperture number1.4

Night vision

Night visionYes
Night vision distance40 m

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.265
Video compression formatsH.264, H.265
Supported graphics resolutions480 x 240, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video intelligence analyticYes
Thermal frame rate (NTSC)60 Hz
Thermal frame rate (PAL)50 Hz
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rate256 Kbps - 5 Mbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness, Contrast, DNR, Saturation, Sharpness
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedNot supported
Built-in microphoneNo

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsTCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, HTTPS, SNMP,
Number of users3 user(s)

Storage

Built-in HDDNo
Card reader integratedNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Password protectionYes
Digital watermarkYes
HeartbeatYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresCrossing line, Intrusion
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Behavior analysisLine crossing detection
Firmware upgradeableYes
Management softwareMVMS AI, MVMS ENTERPRISE

Power

Power source typeDC, PoE
Power consumption (max)5.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-20 - 40 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Diameter12.2 cm
Length95.9 mm
Weight350 g

Packaging content

Number of cameras1
