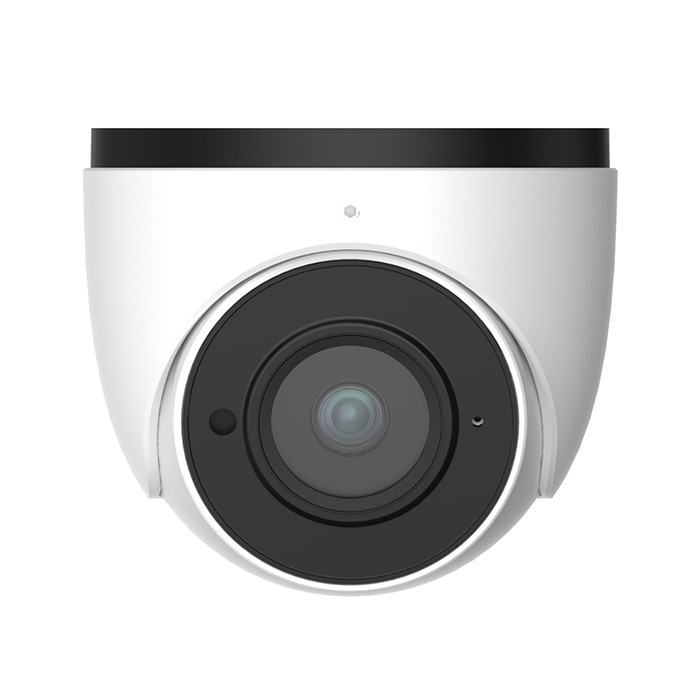

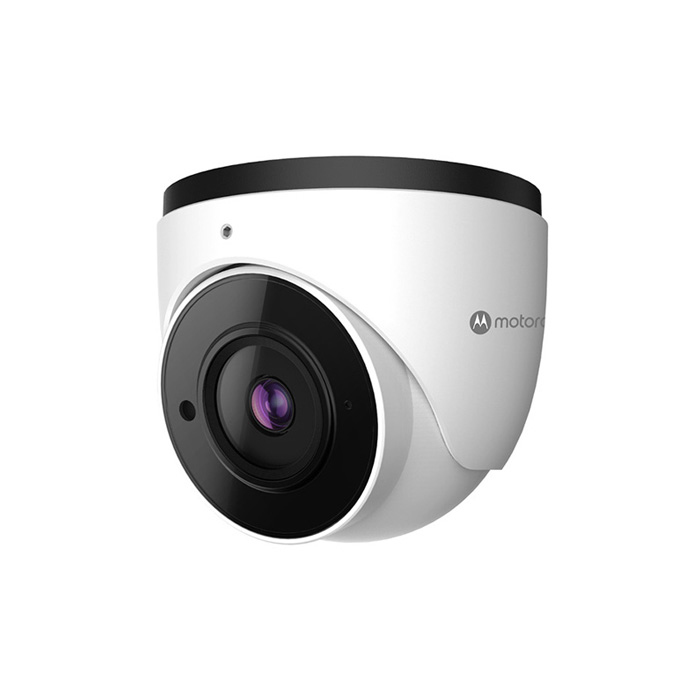

MTIDM045702 security camera Dome IP security camera Indoor & outdoor
2592 x 1944 pixels Ceiling
Model MTIDM045702
42 specifications
- ConnectivityWired
- TypeIP security camera
- Weight460 g
- ColourBlack, White
- Form factorDome
- Angle of rotation360°
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 460 g
- Colour
- Black, White
- Form factor
- Dome
- Angle of rotation
- 360°
- Brand
- Motorola
- Category
- Security Camera
- Model
- MTIDM045702
- Part number
- MTIDM045702
- Also known as
- Motorola MTIDM045702 security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling
Specifications
42 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Angle of rotation | 360° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 360° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Frame rate | 30 fps |
| Back Light Compensation (BLC) | Yes |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 82.8 mm |
| Diameter | 9.46 cm |
| Weight | 460 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
