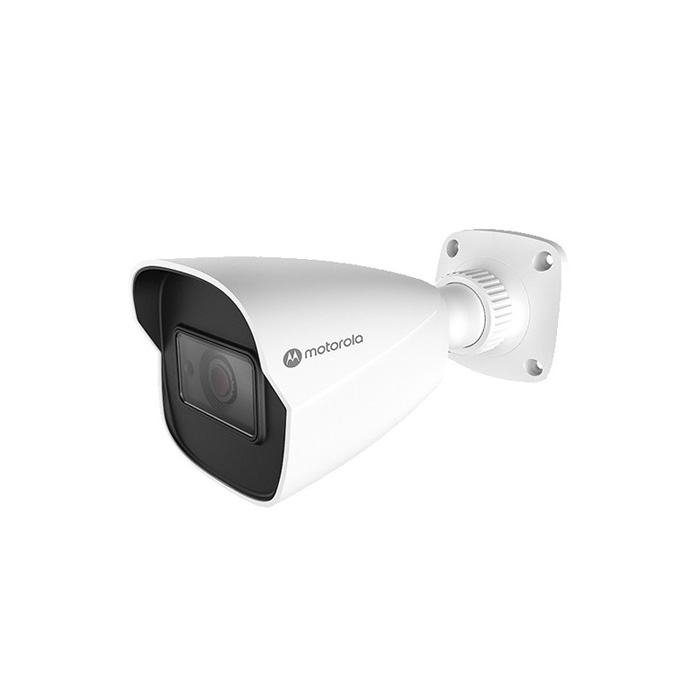

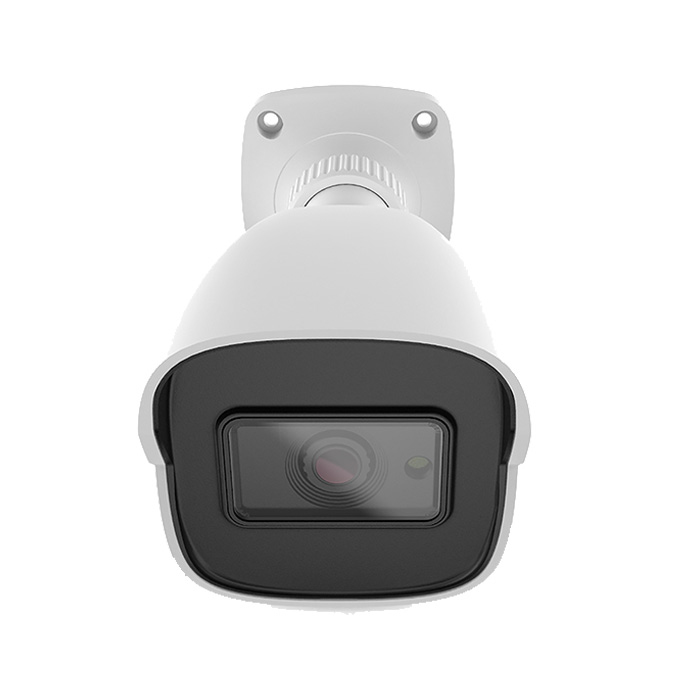

MTIBM045701 security camera Bullet IP security camera Indoor & outdoor
2592 x 1944 pixels Wall
Model MTIBM045701
46 specifications
- ConnectivityWired
- TypeIP security camera
- Weight390 g
- ColourBlack, White
- Form factorBullet
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 390 g
- Colour
- Black, White
- Form factor
- Bullet
- Minimum illumination
- 0 lx
- Brand
- Motorola
- Category
- Security Camera
- Model
- MTIBM045701
- Part number
- MTIBM045701
- Also known as
- Motorola MTIBM045701 security camera Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Wall
Specifications
46 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black, White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 80° |
| Pan range | 0 - 360° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of effective pixels (H x V) | 2592 x 1944 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 3.8 mm |
| Fixed focus | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.265 |
| Frame rate | 30 fps |
| Thermal frame rate (NTSC) | 60 Hz |
| Thermal frame rate (PAL) | 50 Hz |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 167.5 mm |
| Depth | 74.5 mm |
| Height | 74.5 mm |
| Weight | 390 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
