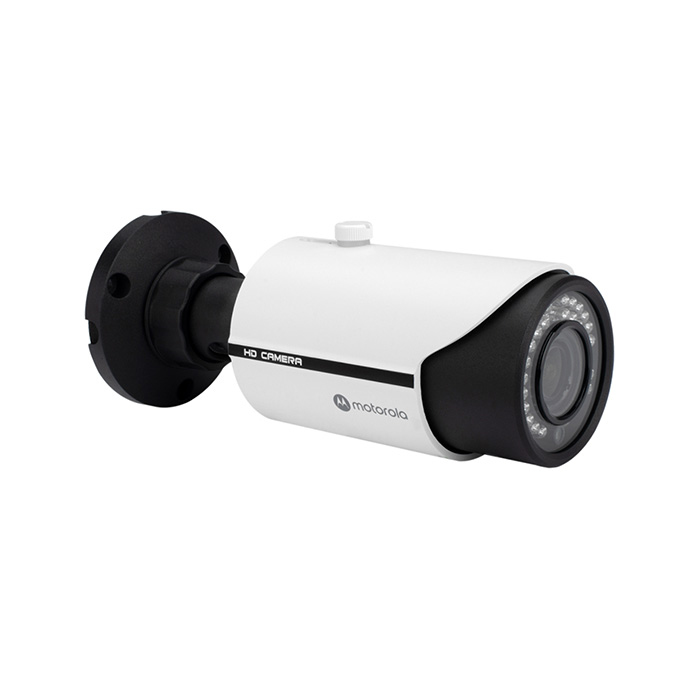

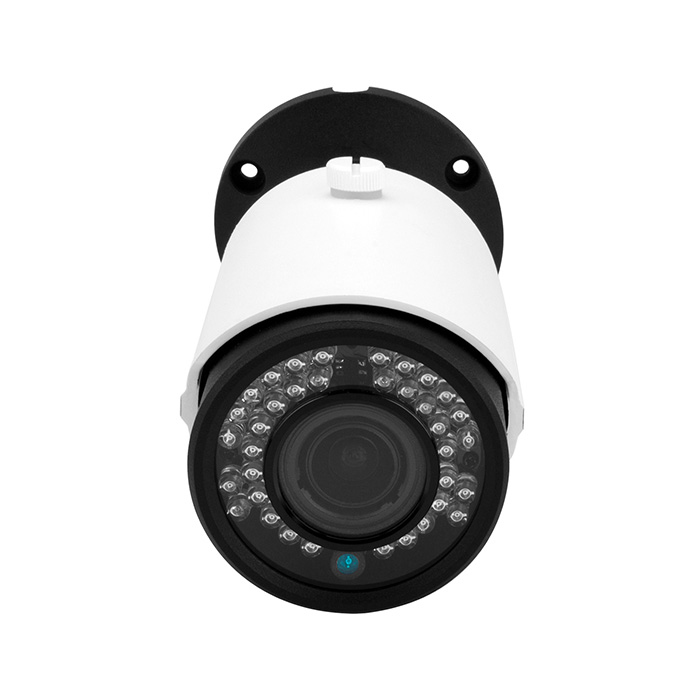

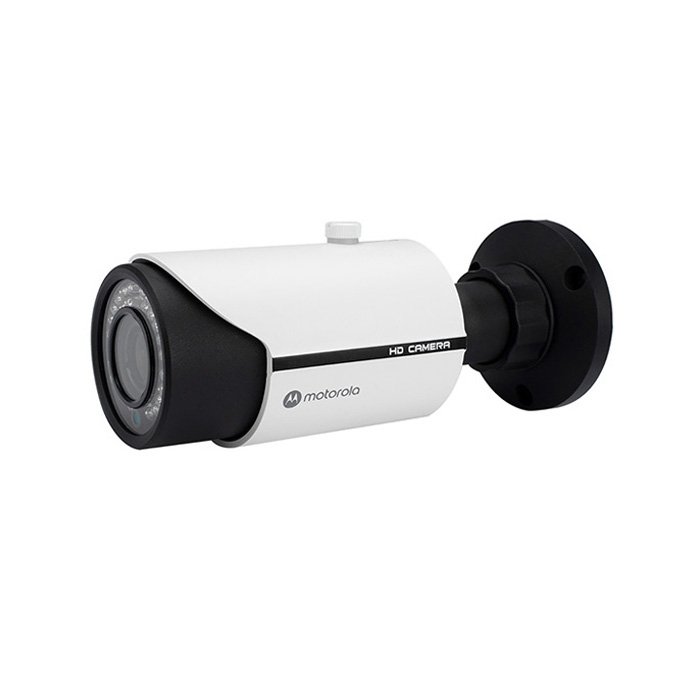

MTABM042611 security camera Bullet CCTV security camera Indoor & outdoor
1920 x 1080 pixels Wall
Model MTABM042611
53 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight580 g
- ColourBlack, White
- Form factorBullet
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 580 g
- Colour
- Black, White
- Form factor
- Bullet
- Minimum illumination
- 0 lx
- Brand
- Motorola
- Category
- Security Camera
- Model
- MTABM042611
- Part number
- MTABM042611
- Also known as
- Motorola MTABM042611 security camera Bullet CCTV security camera Indoor & outdoor 1920 x 1080 pixels Wall
Specifications
53 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black, White |
| Housing material | Metal |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/50 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 2.8 - 12 mm |
| Focus | Manual |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Thermal frame rate (NTSC) | 60 Hz |
| Thermal frame rate (PAL) | 50 Hz |
| Analog signal format system | NTSC, PAL |
| NTSC resolutions | 1920 x 1080 pixels |
| PAL resolutions | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 1 W |
| Power consumption (max) | 4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 8.67 cm |
| Length | 221.1 mm |
| Weight | 580 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
