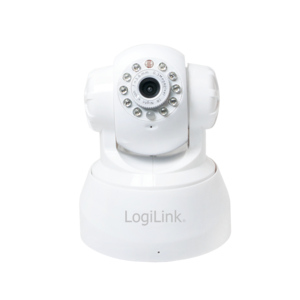

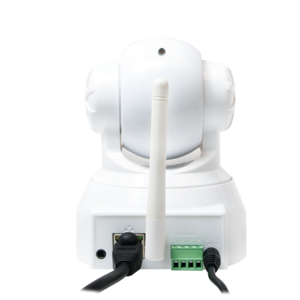

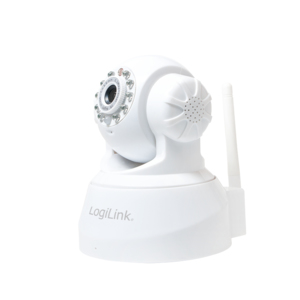

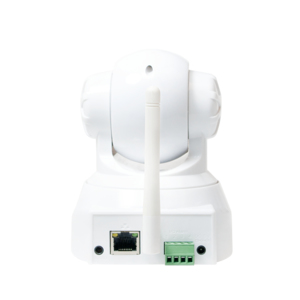

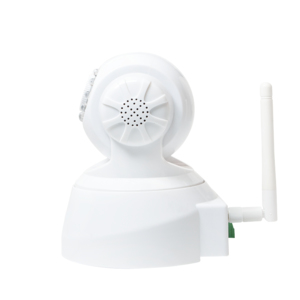

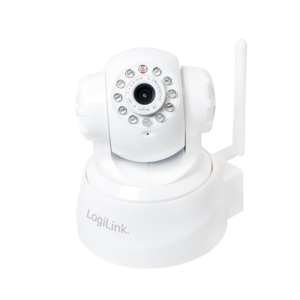

LogiLink WC0030W security camera Box IP security camera

LogiLink WC0030W security camera Box IP security camera

640 x 480 pixels Ceiling/wall

Model WC0030WEAN 4052792035230

52 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • ColourWhite
  • Form factorBox
  • Minimum illumination0.5 lx
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Colour
White
Form factor
Box
Minimum illumination
0.5 lx
Sensor type
CMOS
Brand
LogiLink
Model
WC0030W
Part number
WC0030W
EAN / UPC
4052792035230
Also known as
LogiLink WC0030W security camera Box IP security camera 640 x 480 pixels Ceiling/wall

Specifications

52 specifications in 16 groups

Performance

TypeIP security camera
Connectivity technologyWired & Wireless
Alarm input/outputYes
CertificationCE

Design

Form factorBox
Mounting typeCeiling/wall
Product colourWhite

Camera

Minimum illumination0.5 lx
Tilt angle range0 - 120°
Pan range0 - 270°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")

Video

Maximum resolution640 x 480 pixels
Video compression formatsM-JPEG
Supported graphics resolutions320 x 240, 640 x 480 (VGA)
Frame rate30 fps
Full HDNo

Audio

Built-in speaker(s)Yes
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3u
Supported network protocolsHTTP/TCP/IP/UDP/ SMTP/DDNS/SNTP/DHCP/FTP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Password protection typeUser
Motion sensorYes
Security algorithms64-bit WEP, 128-bit WEP, AES, TKIP, WPA, WPA2

Management features

Web-based managementYes
Firmware upgradeableYes
Remotely operatedYes

Power

Power consumption (max)5 W
DC output voltage5
DC output current2 A
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 85%
Storage relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes
Mobile operating systems supportedAndroid, iOS

Sustainability

Compliance certificatesRoHS

Packaging content

Cables includedLAN (RJ-45)
AC adapter includedYes
Quick start guideYes
Resource CDYes
