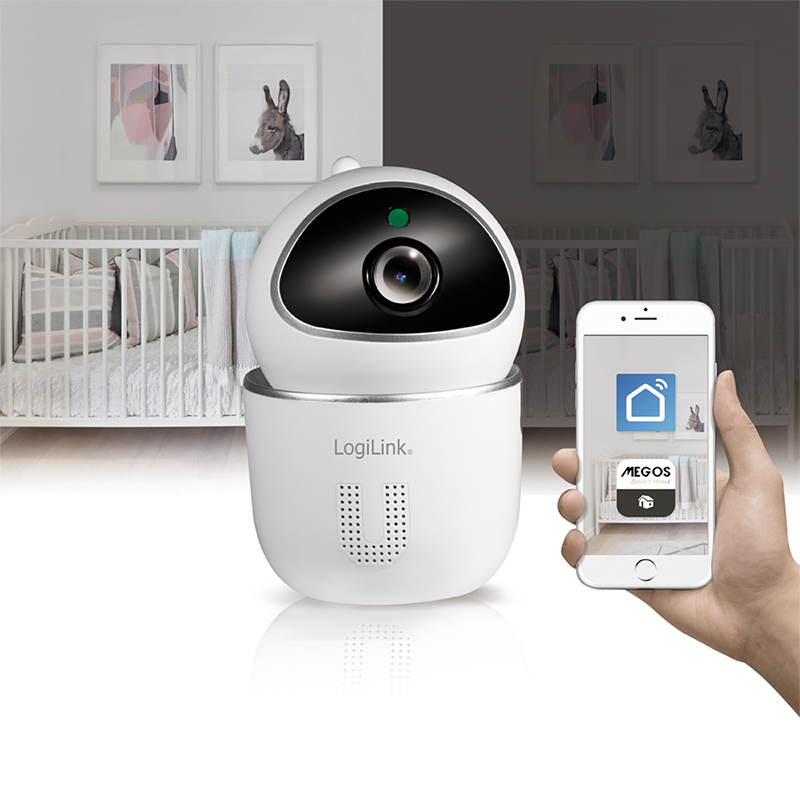

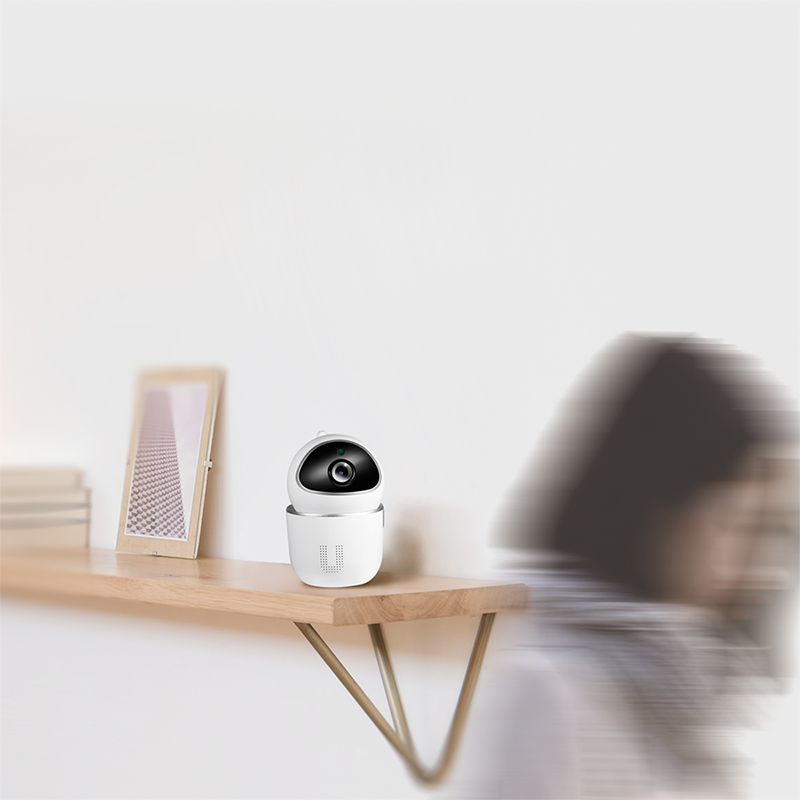

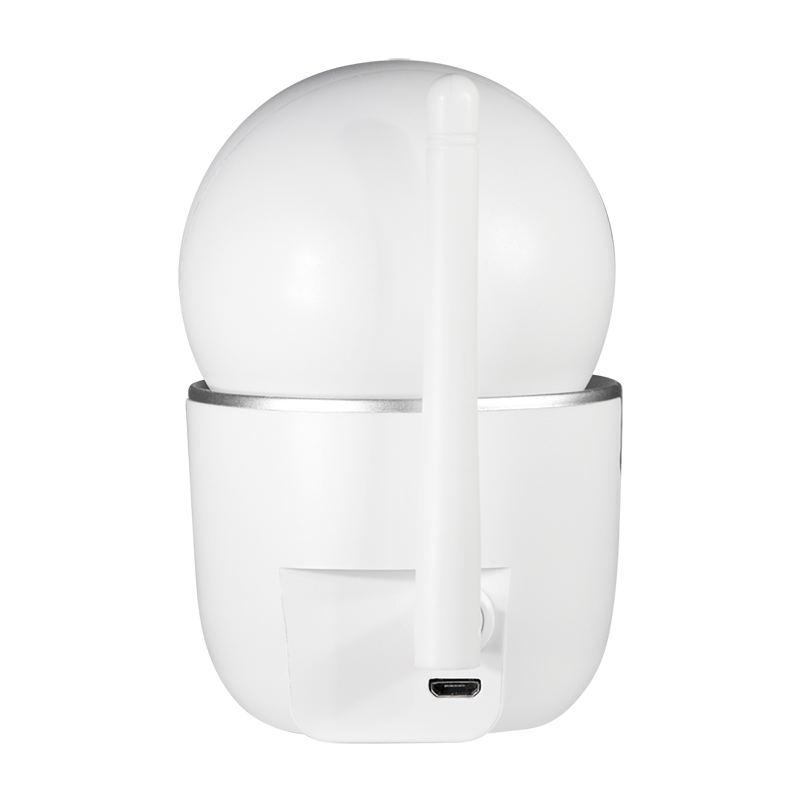

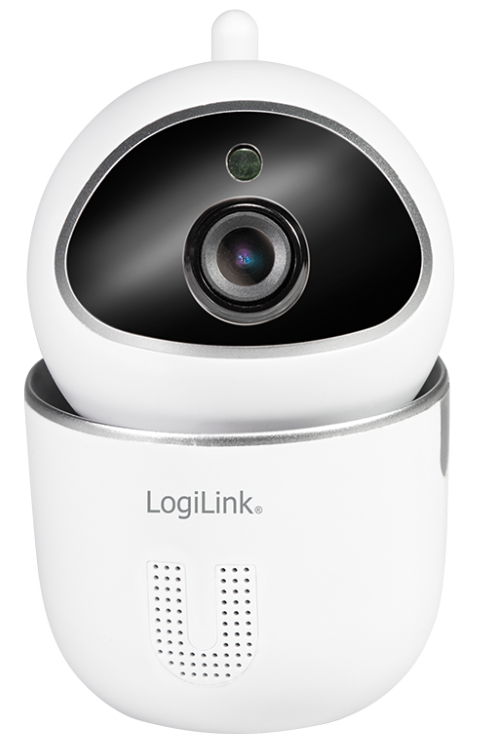

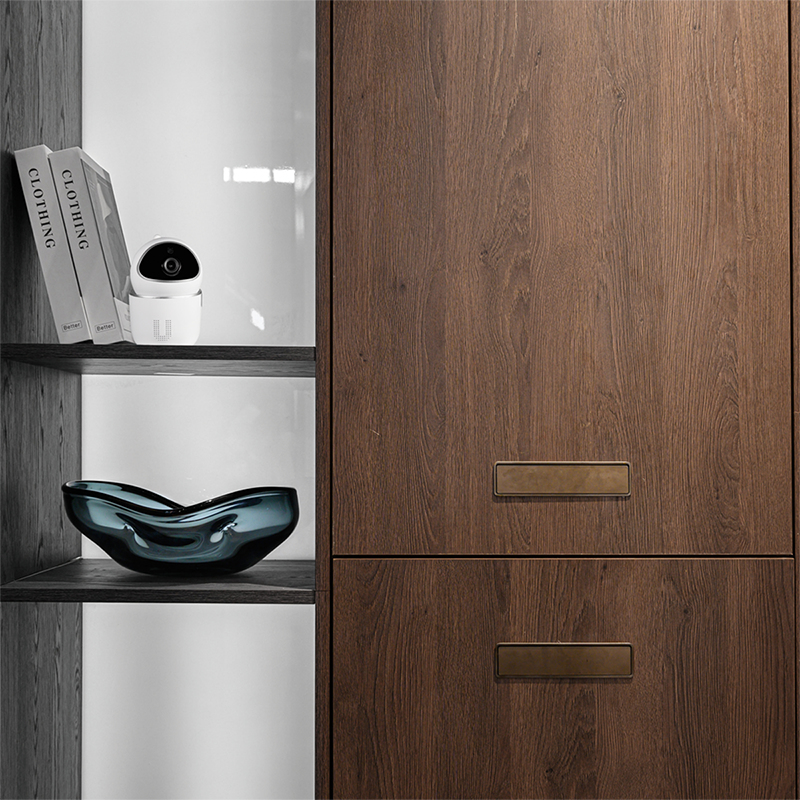

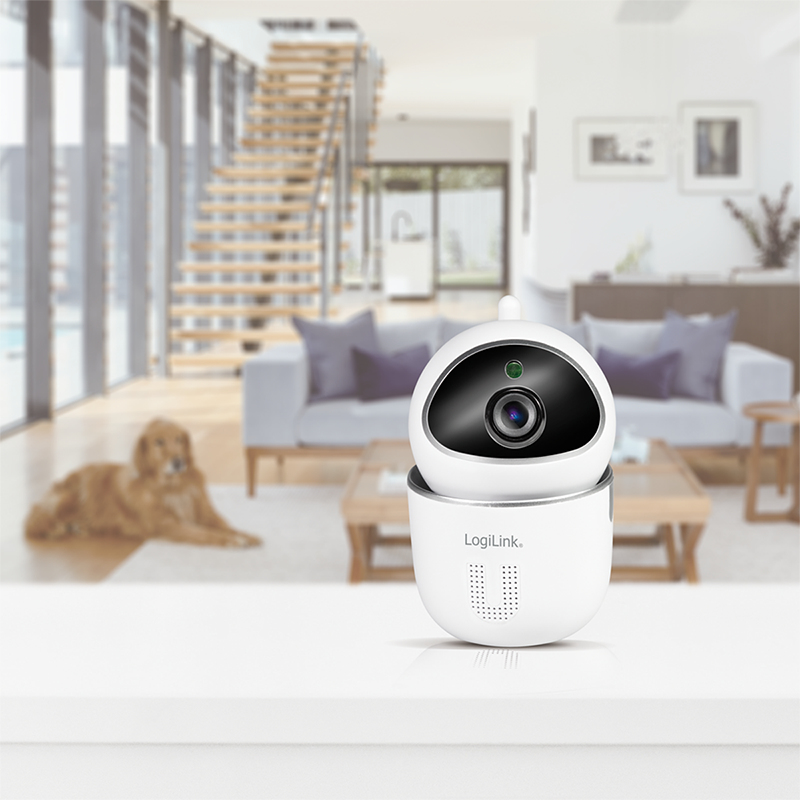

SH0117 security camera Bulb IP security camera Indoor
1920 x 1080 pixels Ceiling/Wall/Desk
Model SH0117EAN 4052792067286
58 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight170 g
- ColourWhite
- Form factorBulb
- Camera pan controlYes
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 170 g
- Colour
- White
- Form factor
- Bulb
- Camera pan control
- Yes
- Brand
- LogiLink
- Category
- Security Camera
- Model
- SH0117
- Part number
- SH0117
- EAN / UPC
- 4052792067286
- Also known as
- LogiLink SH0117 security camera Bulb IP security camera Indoor 1920 x 1080 pixels Ceiling/Wall/Desk
Specifications
58 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Day/night mode | Yes |

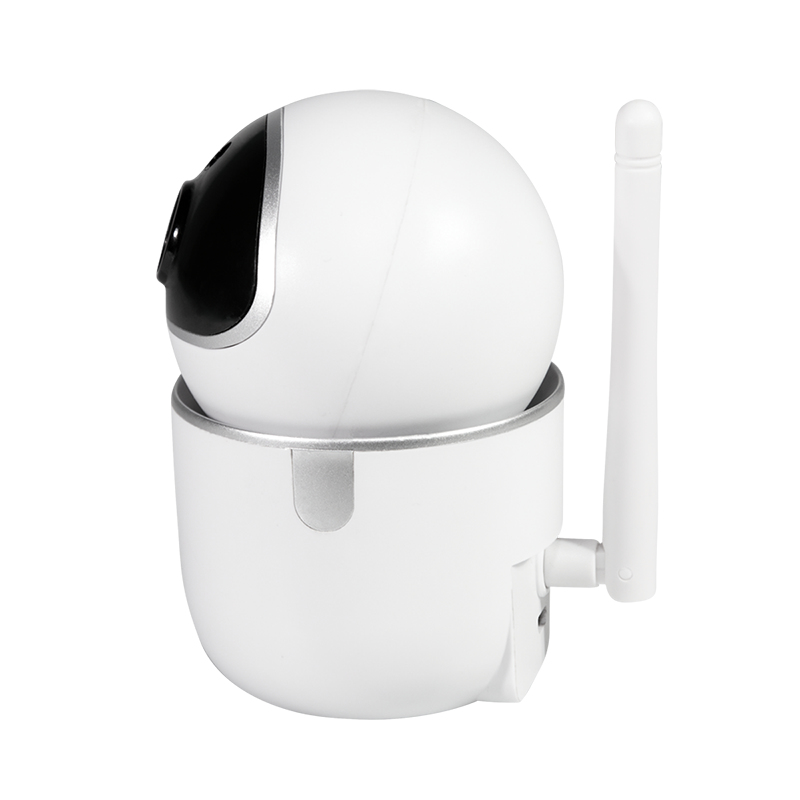

| Antenna type | External |
| Antennas quantity | 1 |
Design
| Specification | Value |
|---|---|
| Form factor | Bulb |
| Mounting type | Ceiling/Wall/Desk |
| Product colour | White |
| International Protection (IP) code | IP20 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.02 lx |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 3.6 mm |
| Maximum aperture number | 1.2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264+ |
| Supported graphics resolutions | 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Video recording | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio codecs | G.711A |
| Signal-to-Noise Ratio (SNR) | 58 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | No |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4 W |
| DC output voltage | 5 |
| DC output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 95 °C |
| Operating relative humidity (H-H) | 10 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 85 mm |
| Height | 65 mm |
| Weight | 170 g |
| Cable length | 1.2 m |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | DC |
| Mounting kit | Yes |
| Screws included | Yes |
| Manual | Yes |

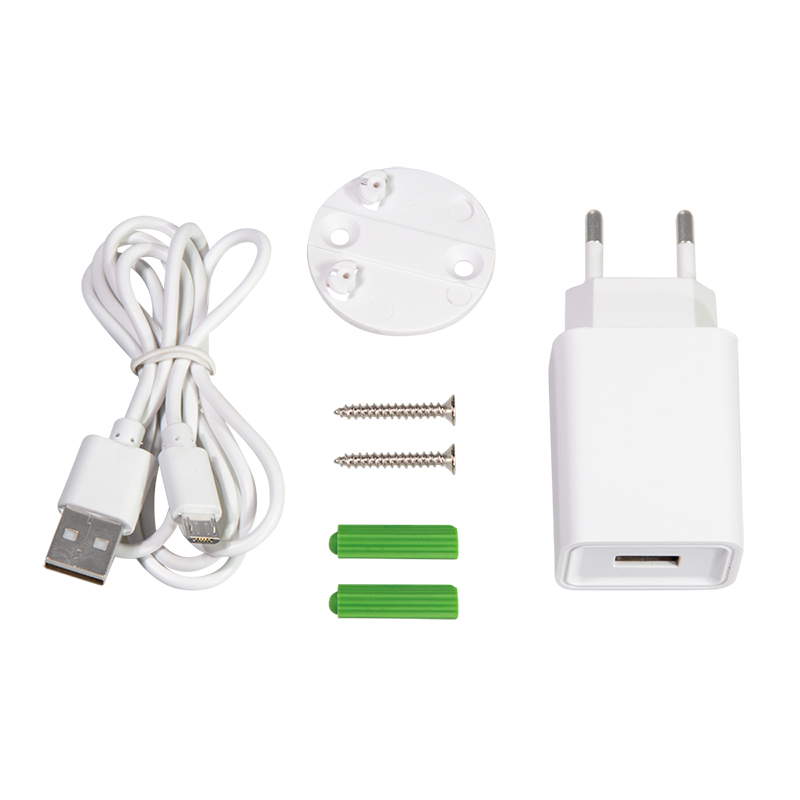

| Packaging content | 1x Wi-Fi IP Camera 1x Power Adapter 1x USB Charging Cable 1x Screw Package 1x User Manual |
