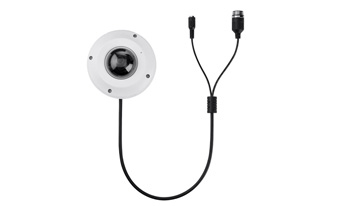

LCAM03360D security camera Dome IP security camera Indoor & outdoor
2048 x 1536 pixels
Model LCAM03360D
32 specifications
- ConnectivityWired
- TypeIP security camera
- Weight400 g
- ColourBlack, White
- Form factorDome
- Minimum illumination0.1 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 400 g
- Colour
- Black, White
- Form factor
- Dome
- Minimum illumination
- 0.1 lx
- Brand
- Linksys
- Category
- Security Camera
- Model
- LCAM03360D
- Part number
- LCAM03360D
- Also known as
- Linksys LCAM03360D security camera Dome IP security camera Indoor & outdoor 2048 x 1536 pixels
Specifications
32 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Certification | FCC/IC, CE |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Product colour | Black, White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.1 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 182° |
| Lens viewing angle, vertical | 182° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 0.98 - 1.02 mm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Total megapixels | 3 MP |
| Video formats supported | H.264, MPEG, MPEG4 |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AMR |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 400 g |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3af |
