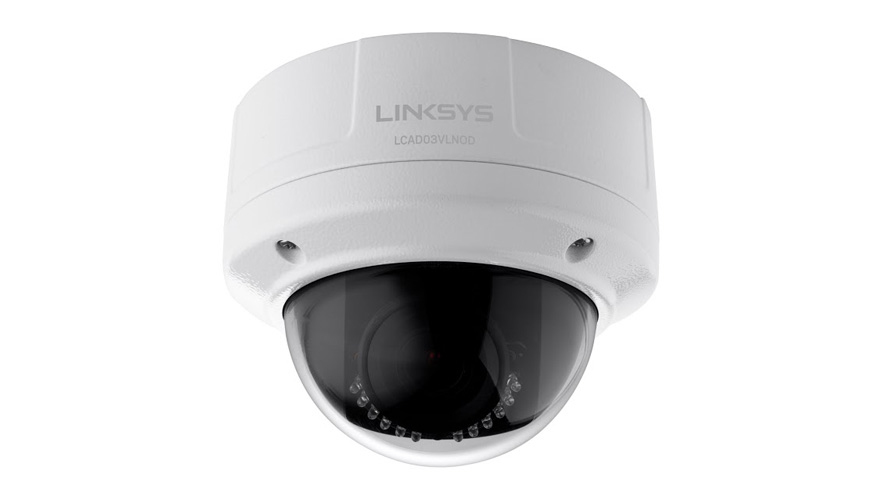

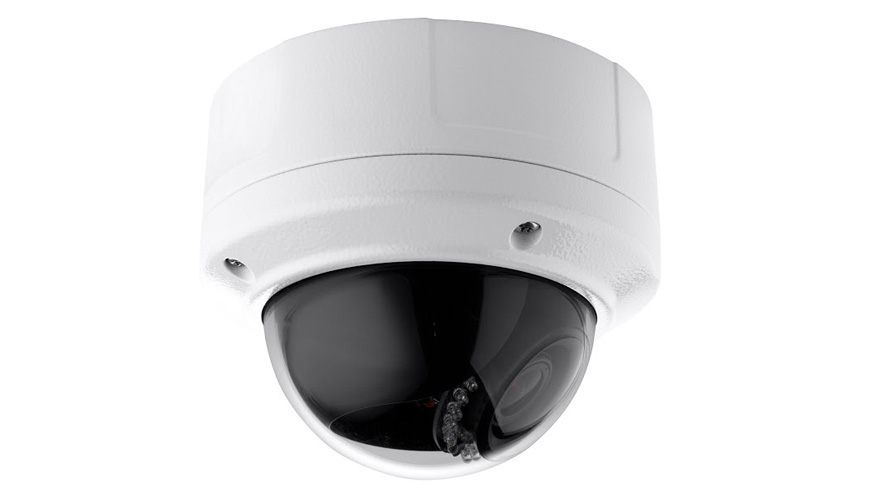

LCAD03VLNOD Dome IP security camera Outdoor
2048 x 1536 pixels
Model LCAD03VLNODPart no. LCAD03VLNOD-APEAN 7458836357882
46 specifications
- ConnectivityWired
- TypeIP security camera
- Weight900 g
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 900 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- Linksys
- Category
- Security Camera
- Model
- LCAD03VLNOD
- Part numbers
- LCAD03VLNOD-AP, LCAD03VLNOD-UK, LCAD03VLNOD-EU, LCAD03VLNOD
- EAN / UPC
- 7458836357882, 745883635801, 745883635795, 851975723698 +2 more
- Also known as
- Linksys LCAD03VLNOD Dome IP security camera Outdoor 2048 x 1536 pixels
Specifications
46 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | FCC/IC Class A CE Class A |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 3.3 - 10.5 mm |
| Focus adjustment | 1.4 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Audio formats supported | AMR |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 900 g |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3af |
