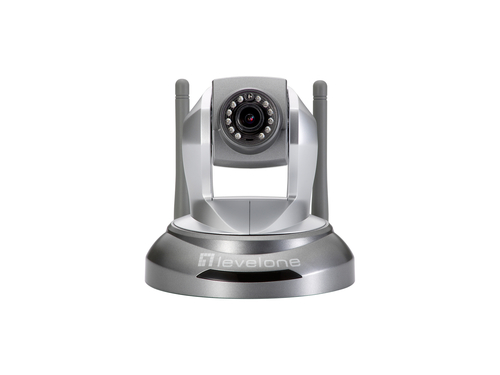

LevelOne PT Network Camera, 5-Megapixel, 150Mbps 802.11b/g/n, Day & Night, IR LEDs
Model WCS-6050EAN 846359024195
92 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight135 g
- ColourSilver
- Form factorBox
- Minimum illumination1 lx
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 135 g
- Colour
- Silver
- Form factor
- Box
- Minimum illumination
- 1 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- WCS-6050
- Part number
- WCS-6050
- EAN / UPC
- 846359024195, 4015867184196, 8463590241956
- Also known as
- LevelOne PT Network Camera, 5-Megapixel, 150Mbps 802.11b/g/n, Day & Night, IR LEDs
Specifications
92 specifications in 21 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Auto pan mode | Yes |
| Auto patrol mode | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level (max) | 2 dBi |
| Detachable antenna(s) | Yes |
| Light exposure modes | Auto |
| Certification | CE, RoHS, FCC, Onvif |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Desk/Wall |
| Product colour | Silver |
| LED indicators | Link, Power |
| Country of origin | Taiwan |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 1 lx |
| Field of view (FOV) angle | 62° |
| Tilt angle range | -45 - 90° |
| Pan range | -177.5 - 177.5° |
| White balance | Auto |
| Camera shutter speed | 1 - 0.0001 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 2 |
| Fixed focal length | 4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1920 pixels |
| Total megapixels | 5 MP |
| Video formats supported | MPEG4 |
| Video compression formats | H.264, M-JPEG |
| Frame rate | 30 fps |
| Flip & mirror | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Time stamp overlay | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Supported network protocols | TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, NTP, PPPoE, DNS, DHCP, RTSP, Samba |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| USB port | Yes |
| DC-in jack | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Password protection type | User |
| Alert notification type | E-mail, Snapshot alert message |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Light sensor | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12 W |
| DC output voltage | 12 |
| DC output current | 1.5 A |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 110 mm |
| Height | 105 mm |
| Weight | 135 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Resource CD | Yes |
Other features
| Specification | Value |
|---|---|
| USB connectivity | Yes |
Technical details
| Specification | Value |
|---|---|
| Removable IR-cut filter | Yes |
