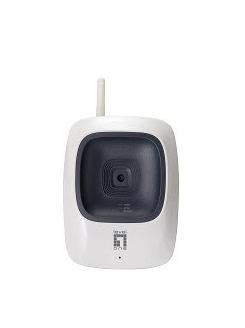

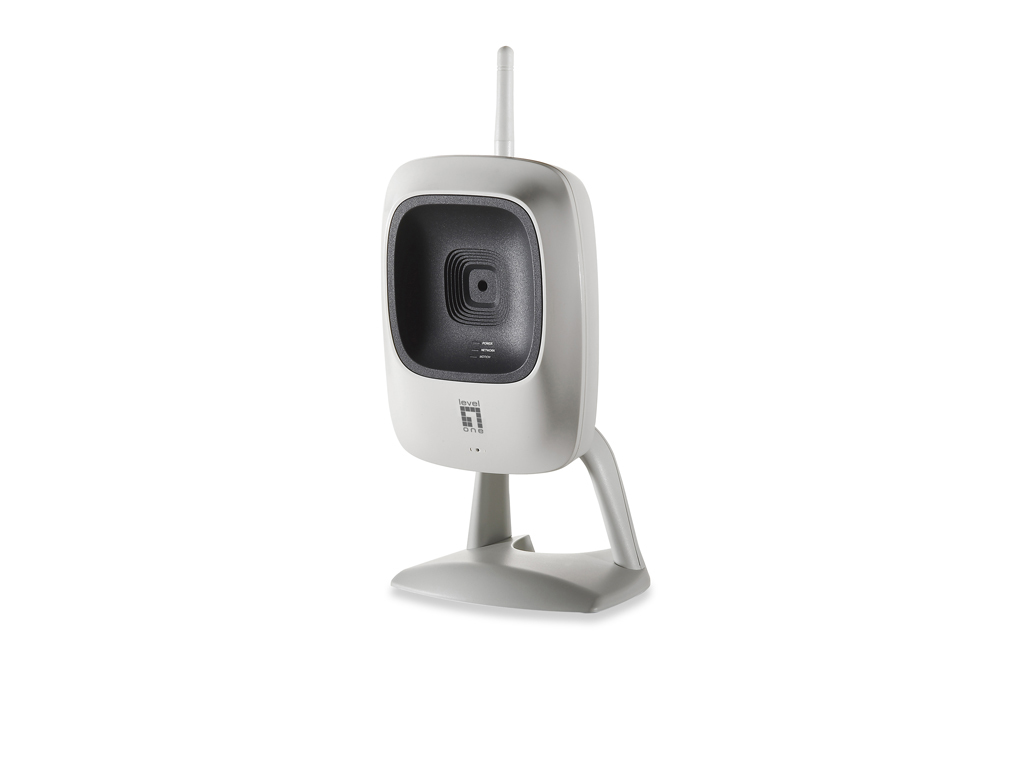

LevelOne Fixed IP Network Camera, 1.3-Megapixel, 300Mbps Wireless 802.11n

Model WCS-0040EAN 4015867159248

71 specifications

Memory128 MB
ConnectivityWired & Wireless
TypeIP security camera
Weight235 g
ColourWhite
Form factorBox

See all specifications

Overview

Memory: 128 MB
Connectivity: Wired & Wireless
Type: IP security camera
Weight: 235 g
Colour: White
Form factor: Box

Brand: LevelOne
Category: Security Camera
Model: WCS-0040
Part number: WCS-0040
EAN / UPC: 4015867159248
Also known as: LevelOne Fixed IP Network Camera, 1.3-Megapixel, 300Mbps Wireless 802.11n

Specifications

71 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
PTZ control	No
Antenna type	Internal & external
Antennas quantity	2
Antenna gain level (max)	2 dBi
Detachable antenna(s)	Yes
Light exposure modes	Auto
Certification	CE, FCC

Design

Specification	Value
Form factor	Box
Mounting type	Desk/Wall
Product colour	White
LED indicators	Activity, Network, Power, WPS
Country of origin	Taiwan

Camera

Specification	Value
Minimum illumination	3 lx
Lens viewing angle, horizontal	50.5°
Lens viewing angle, vertical	39.1°
White balance	Auto

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 5 mm (1 / 5")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	16x
Fixed focal length	2 mm

Night vision

Specification	Value
Night vision	No

Video

Specification	Value
Maximum resolution	1280 x 960 pixels
Total megapixels	1.3 MP
Video formats supported	AVI
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 960
Frame rate	30 fps
Automatic gain control	Yes
Image quality adjustment	Sharpness
Text caption overlay	Yes
Time stamp overlay	Yes

Audio

Specification	Value
Audio system	2-way
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	TCP/IP, HTTP, HTTPS, DHCP, SMTP, FTP, UPnP, DDNS, NTP, RTP, RTCP, RTSP, SMB
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Flash memory	8 MB
Internal memory	128 MB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Security

Specification	Value
Password protection type	User
HTTPS encryption	Yes
IP address filtering	Yes
Motion sensor	Yes
Security algorithms	WEP, WPA-PSK, WPA2-PSK

Management features

Specification	Value
Web-based management	Yes
WPS push button	Yes

Power

Specification	Value
Power consumption (max)	8 W
DC output voltage	12
DC output current	1 A
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	0 - 90%

System requirements

Specification	Value
Windows operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	114.3 mm
Depth	41.4 mm
Height	141.6 mm
Weight	235 g

Packaging content

Specification	Value
AC adapter included	Yes
