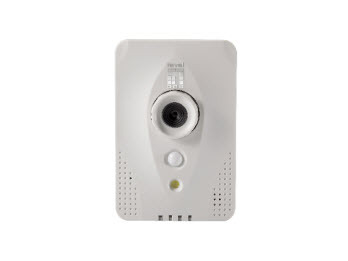

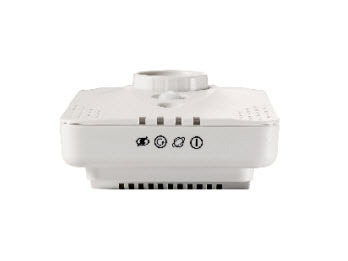

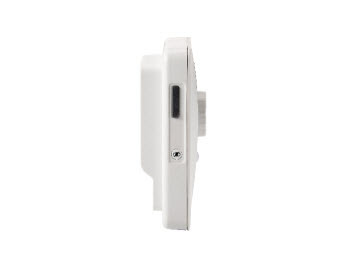

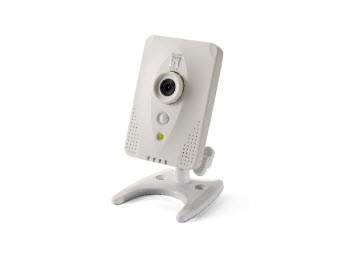

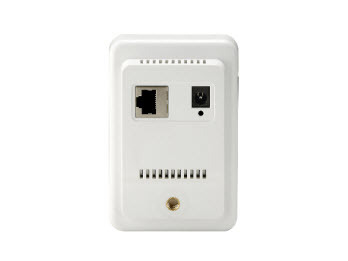

LevelOne Megapixel PIR Lighting PoE Network Camera

LevelOne Megapixel PIR Lighting PoE Network Camera

Model Megapixel PIR Lighting PoE Network CameraPart no. FCS-0031EAN 4015867163573

49 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeBox
  • ColourWhite
  • Placement supportedIndoor
  • Minimum illumination0 lx
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
Box
Colour
White
Placement supported
Indoor
Minimum illumination
0 lx
Brand
LevelOne
Model
Megapixel PIR Lighting PoE Network Camera
Part numbers
FCS-0031, FCS-0031-v1
EAN / UPC
4015867163573, 4056572586875
Also known as
LevelOne Megapixel PIR Lighting PoE Network Camera Box Indoor 1280 x 800 pixels

Specifications

49 specifications in 17 groups

Performance

Placement supportedIndoor
Connectivity technologyWired
Day/night modeYes
CertificationFCC, CE

Design

Form factorBox
Product colourWhite
LED indicatorsYes

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal55.7°
Lens viewing angle, vertical36.5°
White balanceAuto

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")
Progressive scanYes

Lens system

Digital zoom4x

Night vision

Night visionYes
Night vision distance6 m

Video

Maximum resolution1280 x 800 pixels
Video formats supportedH.264, M-JPEG, MPEG4
Supported graphics resolutions1280 x 800 (WXGA)
Frame rate30 fps

Audio

Audio codecsG.711/AMR
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSDHC
Flash memory16 MB
Internal memory64 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-422 ports0
RS-485 ports0

Management features

Reset buttonYes

Power

Power source typePoE
Power consumption (typical)2.5 W
DC output voltage+12V
DC output current1 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 80%

Weight & dimensions

Width60 mm
Depth29 mm
Height95 mm

Packaging content

Bundled softwareIP CamSecure Lite

Other features

Compatible operating systemsWindows 2000/XP/Vista
Compliance industry standardsIEEE 802.3af
