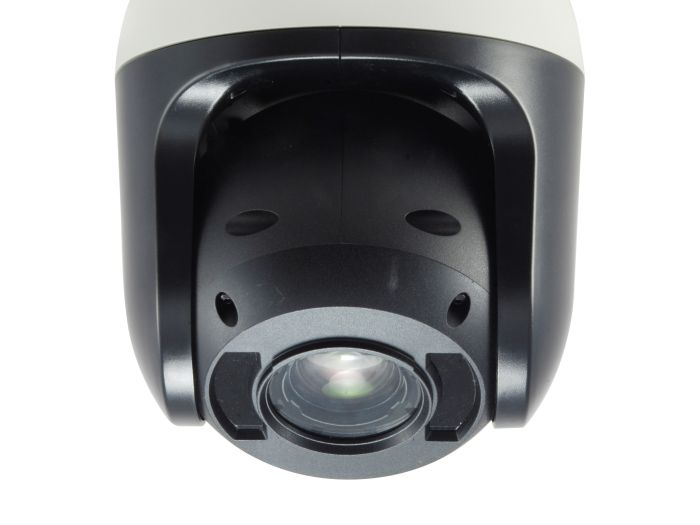

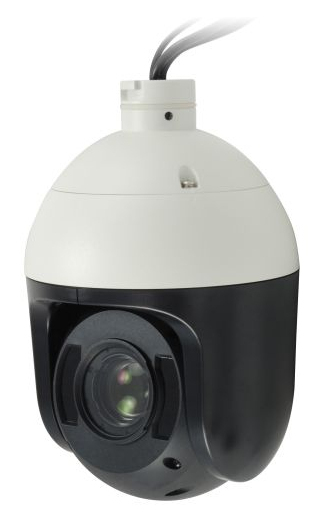

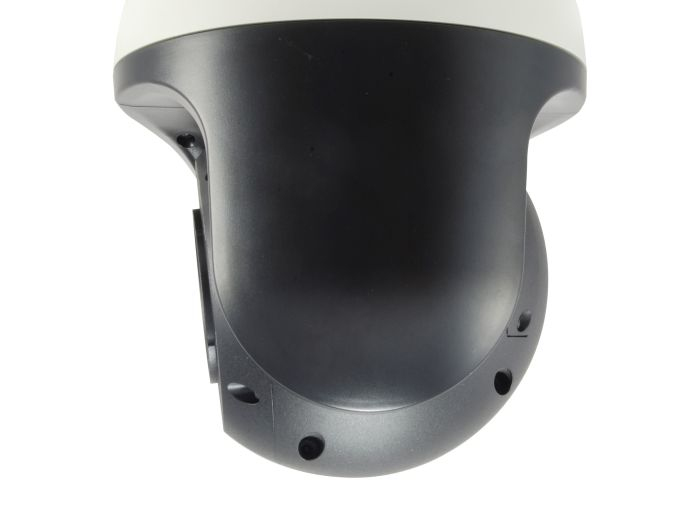

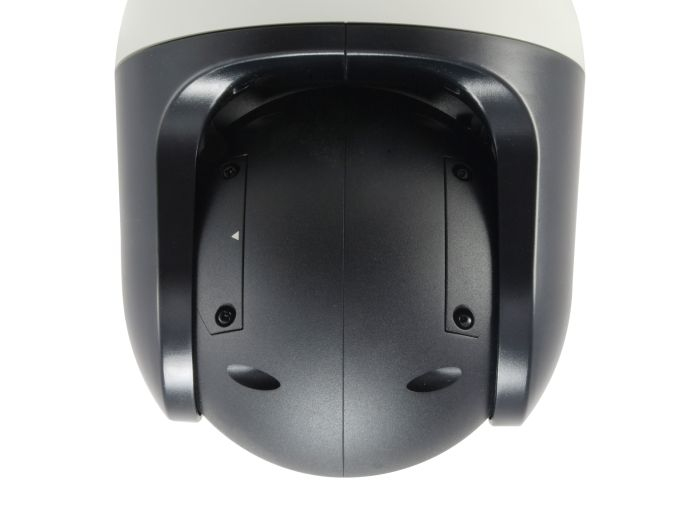

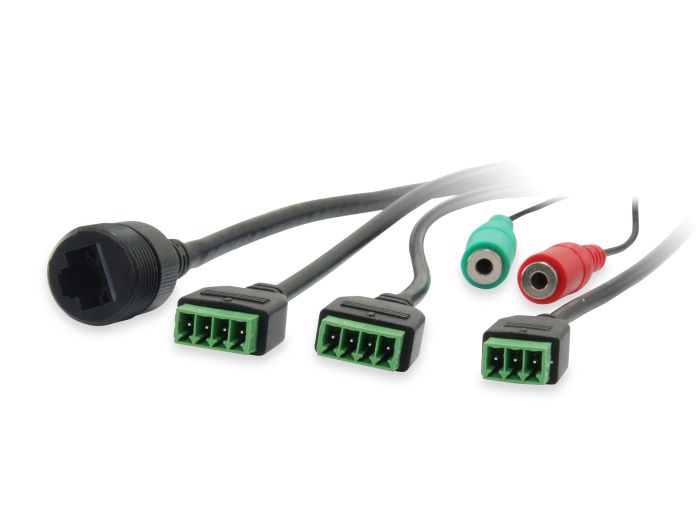

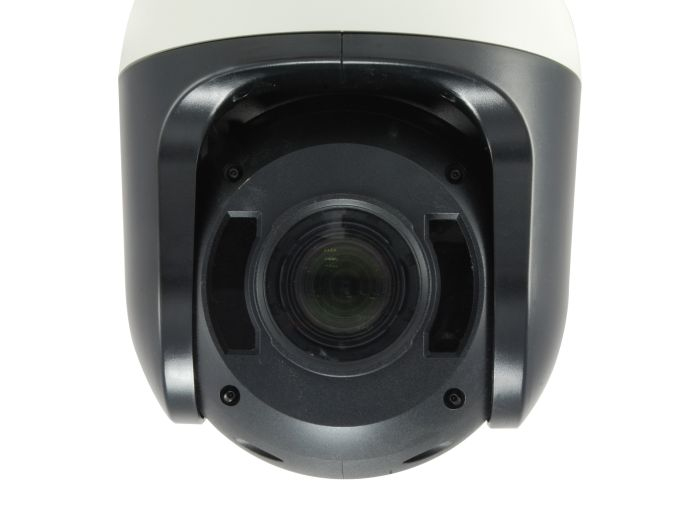

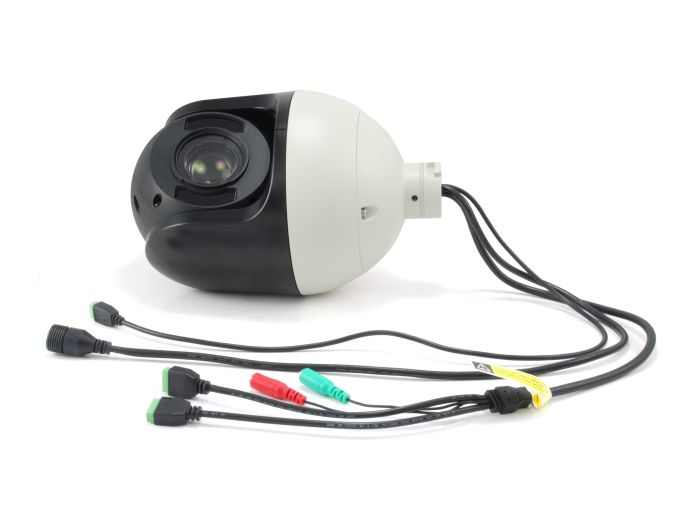

LevelOne HUBBLE 5MP Panoramic Zoom PTZ IP Camera, PoE, 36X Zoom, H.265, IR LEDs, WDR, IP66, Vandalproof
LevelOne

HUBBLE 5MP Panoramic Zoom PTZ IP Camera, PoE, 36X Zoom, H.265, IR LEDs, WDR, IP66, Vandalproof

Model HUBBLEPart no. FCS-4080EAN 4015867209332

80 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.75 kg
  • ColourWhite
  • Form factorDome
  • Lens viewing angle, horizontal51.14 - 2.17°
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
2.75 kg
Colour
White
Form factor
Dome
Lens viewing angle, horizontal
51.14 - 2.17°
Brand
LevelOne
Model
HUBBLE
Part number
FCS-4080
EAN / UPC
4015867209332
Also known as
LevelOne HUBBLE 5MP Panoramic Zoom PTZ IP Camera, PoE, 36X Zoom, H.265, IR LEDs, WDR, IP66, Vandalproof

Specifications

80 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
Auto-trackingYes
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes
CertificationCF

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
LED indicatorsPower
Protection featuresVandal proof
International Protection (IP) codeIP66
IK codeIK10
WeatherproofYes

Camera

Lens viewing angle, horizontal51.14 - 2.17°
Lens viewing angle, vertical39.62 - 1.62°
Tilt manual speed0.16 - 54.4 °/sec
Pan manual speed0.16 - 54.4 °/sec
Camera shutter typeElectronic, Mechanical
Camera shutter speed1/5- 1/64000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom36x
Focal length range4.6 - 165.6 mm
Maximum aperture number1.55
Minimum aperture number5

Night vision

Night visionYes
Night vision distance150 m
LED typeIR

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video compression formatsH.265, H.264, M-JPEG
Supported graphics resolutions2592 x 1944, 2048 x 1536 (QXGA), 1920 x 1080 (HD 1080), 1280 x 960, 1280 x 720 (HD 720), 800 x 600 (SVGA), 640 x 480 (VGA), 320 x 240
Supported video modes1944p, 1536p, 1080p, 960p, 720p, 600p, 480p, 240p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Image stabilizer typeElectronic Image Stabilization (EIS)
Region of Interest (ROI) encodingYes

Audio

Audio system2-way
Audio codecsPCM, G.711
Sample rate8 kHz

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3af
Supported network protocolsTCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo

Ports & interfaces

Terminal block portYes

Security

Video motion detectionYes

Management features

Web browserYes

Power

Power source typePoE, DC
Power consumption (typical)62 W
Power consumption (Power over Ethernet (PoE))56 W
DC output voltage24

Operational conditions

Operating temperature (T-T)-40 - 55 °C
Storage temperature (T-T)10 - 80 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedWindows 8, Windows 10

Weight & dimensions

Width191 mm
Depth191 mm
Height282 mm
Weight2.75 kg

Sustainability

Compliance certificatesFederal Communications Commission (FCC)

Packaging content

Number of cameras1
Screws includedYes
ManualYes
AC adapter includedYes

Other features

Browser supportedInternet Explorer 9 above

Logistics data

Customs product code (TARIC)8525890000
Harmonized System (HS) code852589
