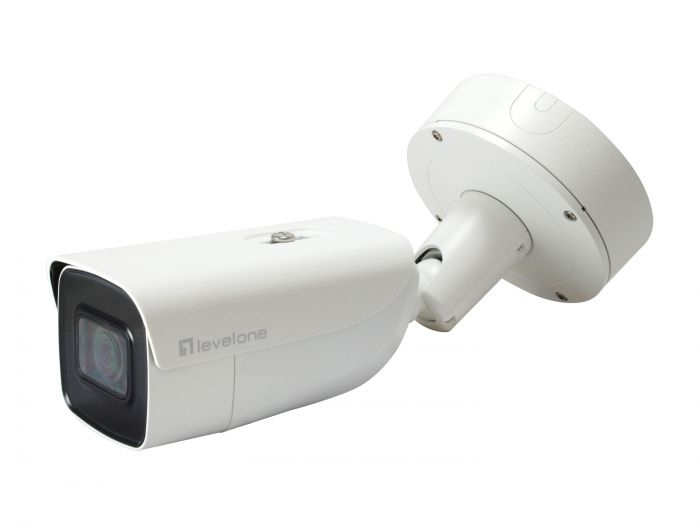

Gemini Zoom IP Camera, 6-Mp, H.265, 802.3At, PoE, IR Leds, Indoor/Outdoor, Two-Way Audio
Model FCS-5212EAN 846359052785
90 specifications
- ConnectivityWired
- TypeIP security camera
- Weight1.89 kg
- ColourWhite
- Form factorBullet
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.89 kg
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-5212
- Part number
- FCS-5212
- EAN / UPC
- 846359052785, 4015867207772, 4015867229569
- Also known as
- LevelOne Gemini Zoom IP Camera, 6-Mp, H.265, 802.3At, PoE, IR Leds, Indoor/Outdoor, Two-Way Audio
Specifications
90 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | No |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Floor/wall |
| Product colour | White |
| LED indicators | Activity, Link, Power |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
| Country of origin | China |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 32 - 106° |
| Lens viewing angle, vertical | 18 - 56° |
| Lens viewing angle, diagonal | 37 - 127° |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 4.3x |
| Focal length range | 2.8 - 12 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3200 x 1800 pixels |
| Total megapixels | 6 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1520, 3200 x 1800 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Voice codecs | G.711, G.722.1, G.726, MP2L2, PCM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.3at |
| Number of simultaneous live view channels | 3 channels |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDHC, MicroSDXC |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
Security
| Specification | Value |
|---|---|
| Active tampering alarm | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Face detection, Intrusion |
| Mirror | Yes |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 13 W |
| Power consumption (Power over Ethernet (PoE)) | 15 W |
| DC output voltage | 12 |
| DC output current | 1.08 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 300 mm |
| Height | 80 mm |
| Weight | 1.89 kg |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 180 mm |
| Package height | 385 mm |
| Package weight | 2.01 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Screws included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8525890000 |
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 168.8 cm |
| Master (outer) case width | 560 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 590 mm |
| Master (outer) case gross weight | 19 kg |
| Products per master (outer) case | 9 pc(s) |
