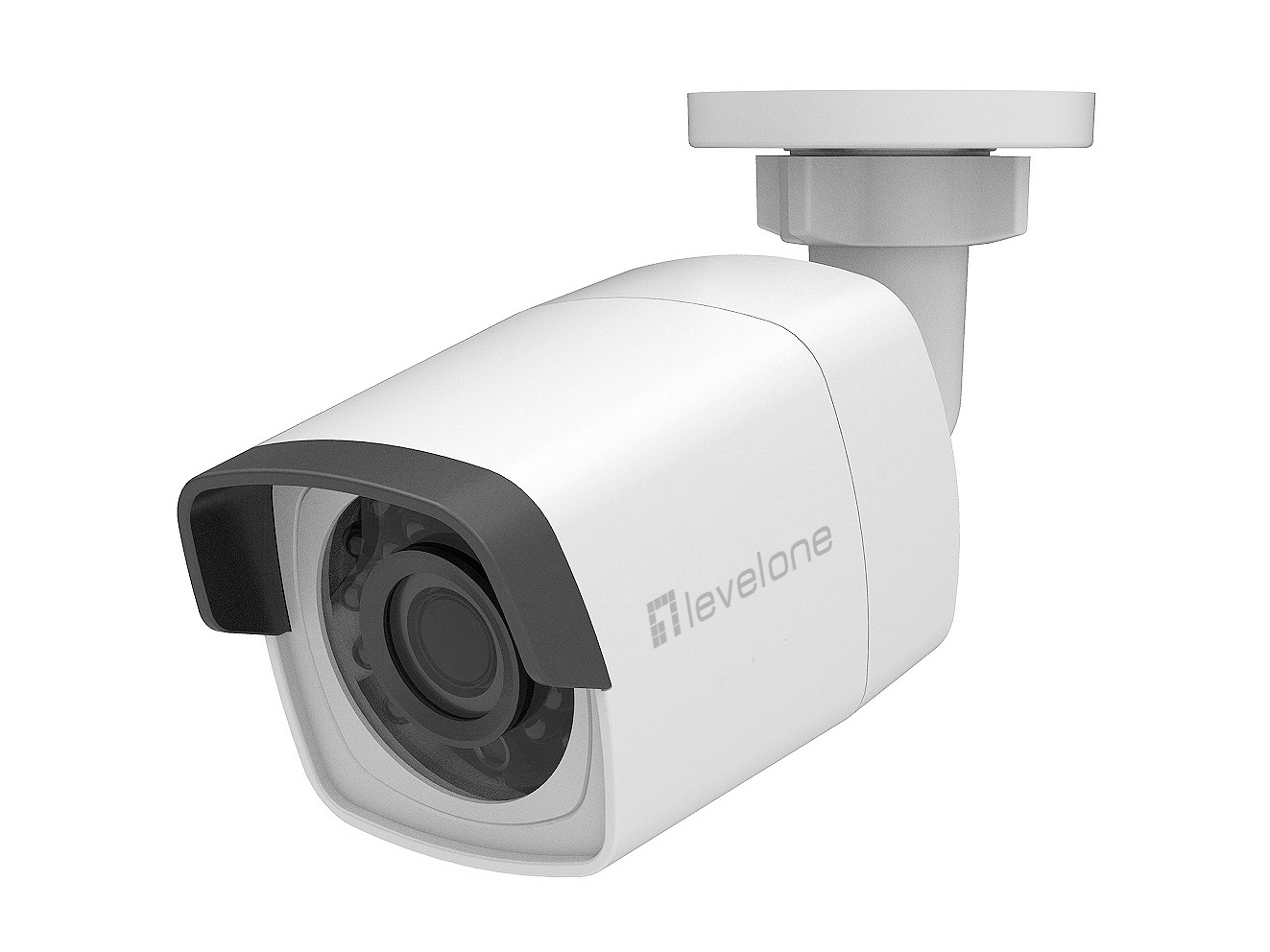

GEMINI Fixed IP Network Camera, 4-Megapixel, IR LEDs, 802.3af PoE, Indoor/Outdoor
Model FCS-5202Part no. 57304907201EAN 4015867231340
92 specifications
- ConnectivityWired
- TypeIP security camera
- Weight500 g
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 500 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-5202
- Part numbers
- 57304907201, FCS-5202
- EAN / UPC
- 4015867231340, 846359052761, 4015867207758
- Also known as
- LevelOne GEMINI Fixed IP Network Camera, 4-Megapixel, IR LEDs, 802.3af PoE, Indoor/Outdoor
Specifications
92 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Dynamic range | 120 dB |
| Certification | CE/FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Power |
| International Protection (IP) code | IP67 |
| Weatherproof | Yes |
| Country of origin | China |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 83° |
| Lens viewing angle, vertical | 45° |
| Lens viewing angle, diagonal | 99° |
| White balance | Auto |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 8x |
| Fixed focal length | 4 mm |
| Focus adjustment | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 256 Kbps - 16 Mbps |
| Flip & mirror | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Region of Interest (ROI) encoding | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Number of users | 20 user(s) |
| User access level | Administrator, Operator, User |
| Live view | Yes |
| Number of simultaneous live view channels | 6 channels |
| Quality of Service (QoS) support | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Active tampering alarm | Yes |
| Anti-flicker | Yes |
| Digest authentication | Yes |
| Digital watermark | Yes |
| Heartbeat | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Intrusion |
| Mirror | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 154 mm |
| Depth | 60.5 mm |
| Height | 70 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 101 mm |
| Package depth | 111 mm |
| Package height | 174 mm |
| Package weight | 734 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Screws included | Yes |
| Manual | Yes |
| Resource CD | Yes |
Other features
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 8.0+ |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
| Master (outer) case width | 535 mm |
| Master (outer) case length | 352 mm |
| Master (outer) case height | 385 mm |
| Master (outer) case gross weight | 22 kg |
| Products per master (outer) case | 30 pc(s) |
