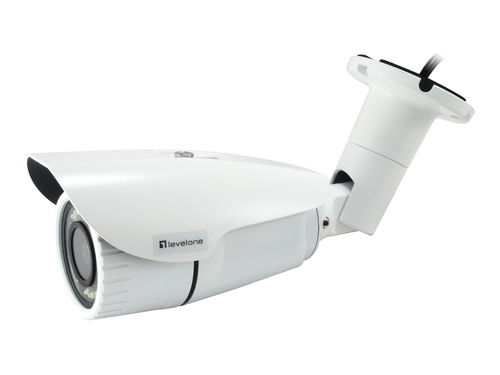

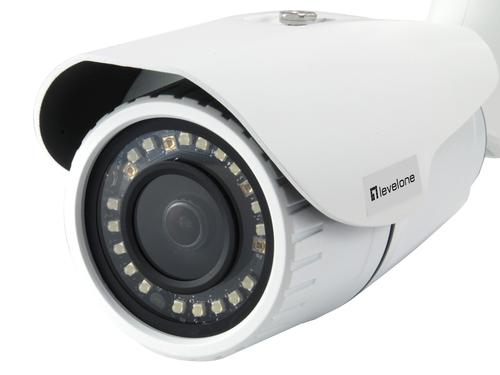

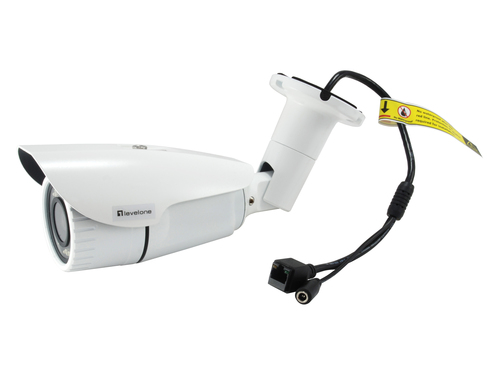

LevelOne HUBBLE Fixed IP Network Camera, H.265, 3-Megapixel, 802.3af PoE, IR LEDs, Indoor/Outdoor, Vandalproof
Model FCS-5101EAN 4015867202753
86 specifications
- ConnectivityWired
- TypeIP security camera
- Weight771 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.01 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 771 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.01 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-5101
- Part number
- FCS-5101
- EAN / UPC
- 4015867202753
- Also known as
- LevelOne HUBBLE Fixed IP Network Camera, H.265, 3-Megapixel, 802.3af PoE, IR LEDs, Indoor/Outdoor, Vandalproof
Specifications
86 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE/FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Power |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
| Country of origin | Taiwan |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.01 lx |
| Field of view (FOV) angle | 106.9° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/5 - 1/16000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focus | Yes |
| Maximum aperture number | 1.85 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Total megapixels | 3 MP |
| Video formats supported | Raw |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) |
| Frame rate | 30 fps |
| Noise reduction technology | Ultra 2D noise reduction, Ultra 3D noise reduction |
| Image stabilizer | Yes |
| Automatic gain control | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| Cabling technology | 10/100Base-T(X) |
| Number of users | 16 user(s) |
| Quality of Service (QoS) support | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |

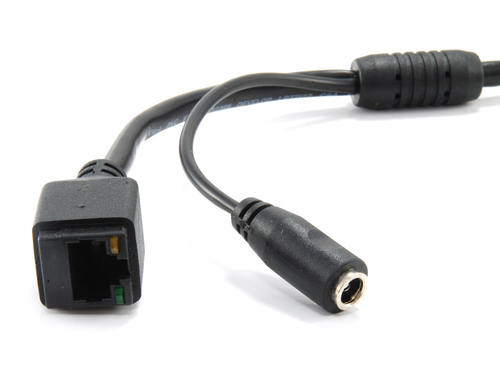

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Password protection type | User |
| Active tampering alarm | Yes |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 8 W |
| DC output voltage | 12 |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88.8 mm |
| Depth | 284.1 mm |
| Height | 83.6 mm |
| Weight | 771 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 350 mm |
| Package height | 120 mm |
| Package weight | 1.03 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Screws included | Yes |
| Resource CD | Yes |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 16 Mbit/s |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 408 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 490 mm |
| Master (outer) case gross weight | 14.4 kg |
| Products per master (outer) case | 12 pc(s) |
