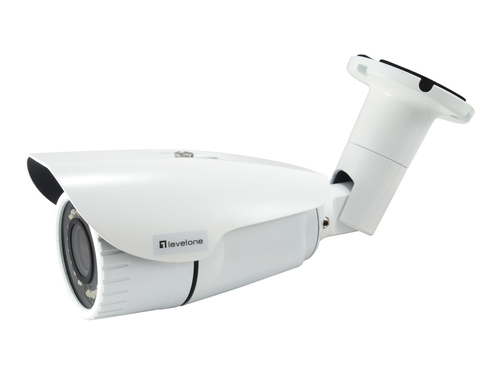

LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, H.265, 802.3at PoE, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor, Vandalproof

LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, H.265, 802.3at PoE, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor, Vandalproof

Model FCS-5096EAN 4015867205334

101 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.89 kg
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.89 kg
Colour
White
Form factor
Bullet
Minimum illumination
0.005 lx
Brand
LevelOne
Model
FCS-5096
Part number
FCS-5096
EAN / UPC
4015867205334
Also known as
LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, H.265, 802.3at PoE, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor, Vandalproof

Specifications

101 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE/FCC

Design

Form factorBullet

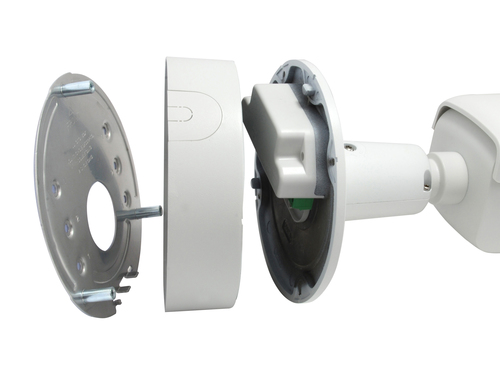

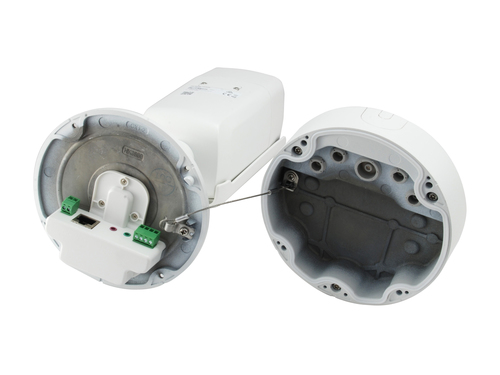

Mounting typeCeiling/wall
Product colourWhite
LED indicatorsPower
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP67
IK codeIK10
Country of originChina

Camera

Minimum illumination0.005 lx
Lens viewing angle, horizontal105°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal126°
White balanceAuto
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4.3x
Focal length range2.8 - 12 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedAVI
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes240p, 360p, 480p, 720p, 960p, 1080p
Frame rate60 fps
3D NR (Noise Reduction)Yes
Back Light Compensation (BLC)Yes
Full HDYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio codecsG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour
Cabling technology10/100Base-T(X)
Number of users32 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SDHC, SDXC
Maximum memory card size128 GB

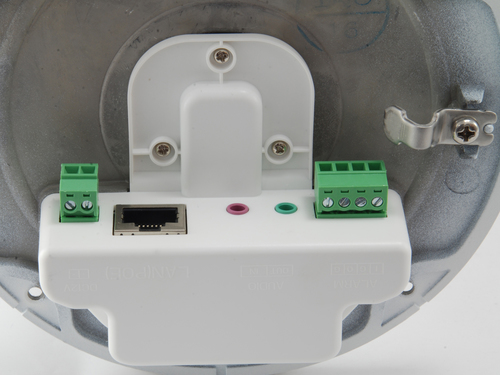

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Composite video out1
Terminal block portYes
DC-in jackYes
InterfaceRJ-45

Security

Password protectionYes
Anti-flickerYes
Digital watermarkYes
HeartbeatYes
Intelligent Video Surveillance (IVS) system featuresFace detection
MirrorYes
Video motion detectionYes

Management features

Behavior analysisIntrusion detection, Line crossing detection

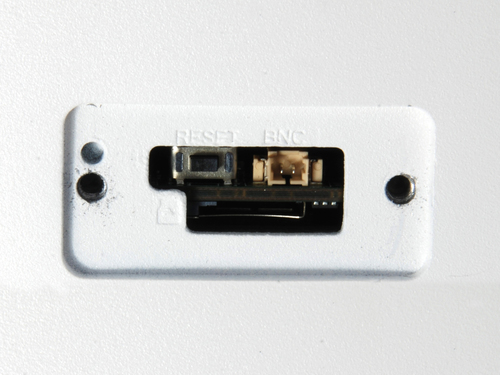

Reset buttonYes

Power

Power source typeDC, PoE
Power consumption (max)15.5 W
Power consumption (Power over Ethernet (PoE))17.5 W
DC output voltage12
DC output current1.3 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width332.7 mm
Depth332.7 mm
Height144.1 mm
Weight1.89 kg

Packaging data

Package width185 mm
Package depth200 mm
Package height385 mm
Package weight2.28 kg
Package typeBox

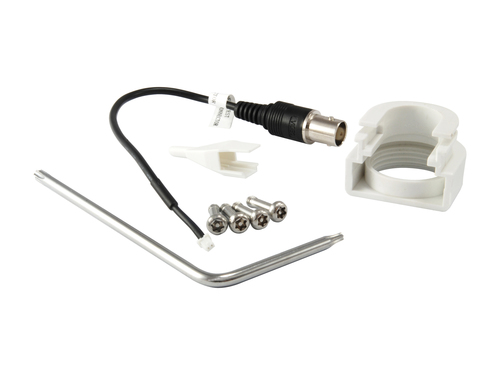

Packaging content

Number of cameras1
Screws includedYes
Resource CDYes

Other features

Browser supportedIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Logistics data

Harmonized System (HS) code85258900
Master (outer) case width570 mm
Master (outer) case length410 mm
Master (outer) case height595 mm
Master (outer) case gross weight15.5 kg
Products per master (outer) case9 pc(s)
