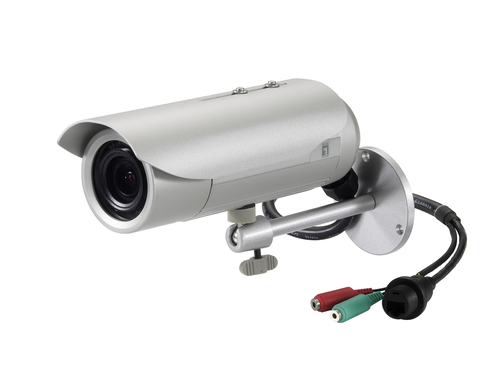

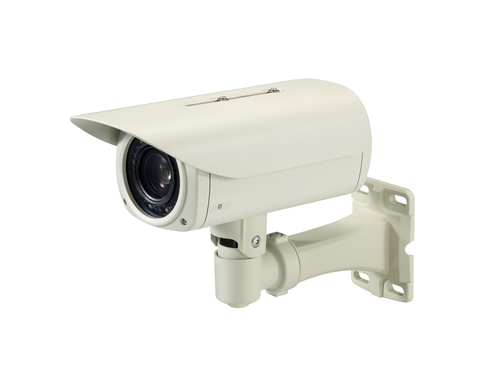

LevelOne HUBBLE Varifocal IP Network Camera, 3-Megapixel, 802.3af PoE, IR LEDs, Vandalproof, two-way audio, Indoor/Outdoor

Model FCS-5057EAN 4015867190142

91 specifications

ConnectivityWired
TypeIP security camera
Weight955 g
ColourSilver
Form factorBullet
Minimum illumination0.1 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 955 g
Colour: Silver
Form factor: Bullet
Minimum illumination: 0.1 lx

Brand: LevelOne
Category: Security Camera
Model: FCS-5057
Part number: FCS-5057
EAN / UPC: 4015867190142
Also known as: LevelOne HUBBLE Varifocal IP Network Camera, 3-Megapixel, 802.3af PoE, IR LEDs, Vandalproof, two-way audio, Indoor/Outdoor

Specifications

91 specifications in 21 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CE, FCC, ONVIF, IP68, IK10, NEMA 4X

Design

Specification	Value
Form factor	Bullet
Mounting type	Wall
Product colour	Silver
LED indicators	Power
Protection features	Vandal proof
International Protection (IP) code	IP68
IK code	IK10
Weatherproof	Yes
Country of origin	Taiwan

Camera

Specification	Value
Minimum illumination	0.1 lx
Lens viewing angle, horizontal	70.5°
White balance	Auto
Camera shutter type	Electronic
Camera shutter speed	1/5 - 1/10000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3.2 mm (1 / 3.2")
Progressive scan	Yes

Lens system

Specification	Value
Number of lenses	1
Zoom capability	Yes
Focal length range	2.8 - 12 mm
Focus	Manual
Focus adjustment	1.4

Night vision

Specification	Value
Night vision	Yes
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	15

Video

Specification	Value
Maximum resolution	2048 x 1536 pixels
Total megapixels	3 MP
Video formats supported	Raw
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Supported video modes	240p, 480p, 720p, 1080p
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Automatic gain control	Yes
Back Light Compensation (BLC)	Yes
Full HD	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness

Audio

Specification	Value
Built-in microphone	No
Voice codecs	G.711

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Headphone outputs	1
Terminal block port	Yes
Interface	RJ-45

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (typical)	4.32 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 50 °C
Operating relative humidity (H-H)	10 - 85%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Weight & dimensions

Specification	Value
Width	77 mm
Depth	193 mm
Height	73 mm
Weight	955 g

Sustainability

Specification	Value
Compliance certificates	RoHS

Packaging data

Specification	Value
Package width	285 mm
Package depth	202 mm
Package height	100 mm
Package weight	414 g
Package type	Box

Packaging content

Specification	Value
Number of cameras	1
Quick installation guide	Yes
Resource CD	Yes
Wall mounting kit	Yes

Technical details

Specification	Value
Iris	Yes
Back light compensation method	Yes
Number of video streams	2

Logistics data

Specification	Value
Harmonized System (HS) code	85258900
Master (outer) case width	565 mm
Master (outer) case length	410 mm
Master (outer) case height	205 mm
Master (outer) case gross weight	11.9 kg
Products per master (outer) case	8 pc(s)
