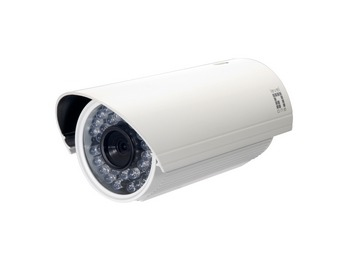

LevelOne FCS-5052 security camera Bullet IP security camera Outdoor

LevelOne FCS-5052 security camera Bullet IP security camera Outdoor

2032 x 1536 pixels Ceiling/wall

Model FCS-5052EAN 846359024065

65 specifications

ConnectivityWired
TypeIP security camera
Weight985 g
ColourWhite
Form factorBullet
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 985 g
Colour: White
Form factor: Bullet
Minimum illumination: 0 lx

Brand: LevelOne
Category: Security Camera
Model: FCS-5052
Part number: FCS-5052
EAN / UPC: 846359024065, 4015867184110
Also known as: LevelOne FCS-5052 security camera Bullet IP security camera Outdoor 2032 x 1536 pixels Ceiling/wall

Specifications

65 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Day/night mode	Yes
Alarm input/output	Yes

Design

Specification	Value
Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	White
LED indicators	Yes
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0 lx
Camera shutter speed	0.00005 - 0.5 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.5 mm (1 / 2.5")
Progressive scan	Yes

Lens system

Specification	Value
Digital zoom	4x
Fixed focal length	4 mm
Focus adjustment	1.8

Night vision

Specification	Value
Night vision	Yes
Night vision distance	20 m
LED type	IR
Number of illumination LEDs	35

Video

Specification	Value
Maximum resolution	2032 x 1536 pixels
Total megapixels	3 MP
Video formats supported	ASF
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes	1080p
Frame rate	30 fps

Audio

Specification	Value
Audio system	2-way
Audio formats supported	AMR
Audio detection	No

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
RS-485 ports	1
Composite video out	1
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes

Security

Specification	Value
HTTPS encryption	Yes
IP address filtering	Yes
Video motion detection	Yes

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (typical)	8 W
DC output voltage	+12V
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 80%

System requirements

Specification	Value
Windows operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	95 mm
Depth	210 mm
Height	102 mm
Weight	985 g

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Mounting brackets included	Yes
Manual	Yes
AC adapter included	Yes
Quick start guide	Yes

Other features

Specification	Value
Compliance industry standards	802.3af PoE
