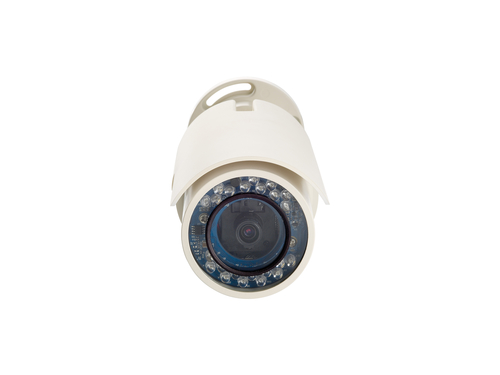

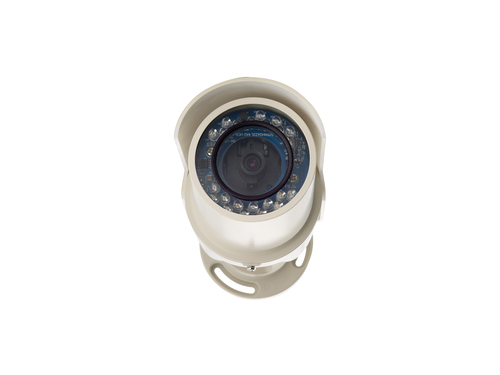

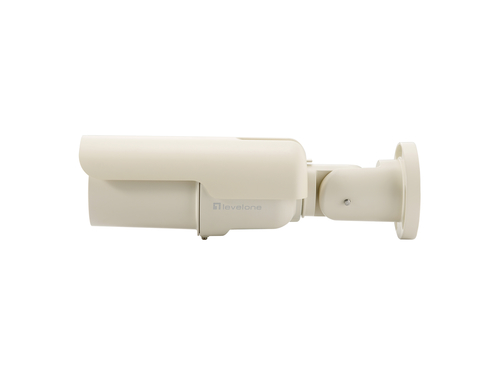

LevelOne Fixed Network Camera, 2-Megapixel, Outdoor, 802.3af PoE, Day & Night, IR LEDs

Model FCS-5051EAN 4015867161371

91 specifications

ConnectivityWired
TypeIP security camera
Weight940 g
ColourBeige
Form factorBullet
Minimum illumination0.02 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 940 g
Colour: Beige
Form factor: Bullet
Minimum illumination: 0.02 lx

Brand: LevelOne
Category: Security Camera
Model: FCS-5051
Part number: FCS-5051
EAN / UPC: 4015867161371, 163121468644, 535868504020, 5711045375552 +1 more
Also known as: LevelOne Fixed Network Camera, 2-Megapixel, Outdoor, 802.3af PoE, Day & Night, IR LEDs

Specifications

91 specifications in 21 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CE, FCC, Onvif

Design

Specification	Value
Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	Beige
LED indicators	Activity, Link
International Protection (IP) code	IP66
Weatherproof	Yes
Country of origin	Taiwan

Camera

Specification	Value
Minimum illumination	0.02 lx
White balance	Auto
Camera shutter type	Electronic
Camera shutter speed	1 - 1/10000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	8x
Fixed focal length	3.6 mm
Focus adjustment	1.5

Night vision

Specification	Value
Night vision	Yes
Night vision distance	25 m
LED type	IR
Number of illumination LEDs	23

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	AVI
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	1280 x 1024 (SXGA), 1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	30 fps
Noise reduction	Yes
Automatic gain control	Yes
Flip & mirror	Yes
Full HD	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Portrait mode	Yes
Privacy masking	Yes
Text caption overlay	Yes
Time stamp overlay	Yes

Audio

Specification	Value
Audio system	2-way
Built-in microphone	No
Voice codecs	G.711, G.726

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Supported network protocols	IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	16 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
BNC output ports	1
Microphone in	Yes
Headphone outputs	1
Terminal block port	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	User
HTTPS encryption	Yes
IP address filtering	Yes
Motion sensor	Yes

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	24 V
Power consumption (typical)	8 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Weight & dimensions

Specification	Value
Width	90 mm
Depth	195 mm
Height	90 mm
Weight	940 g

Sustainability

Specification	Value
Compliance certificates	RoHS

Packaging data

Specification	Value
Package width	339 mm
Package depth	190 mm
Package height	137 mm
Package weight	1.28 kg
Package type	Box

Packaging content

Specification	Value
Mounting brackets included	Yes
Manual	Yes
Quick installation guide	Yes

Technical details

Specification	Value
Iris	Yes
Back light compensation method	Yes
Number of video streams	4
