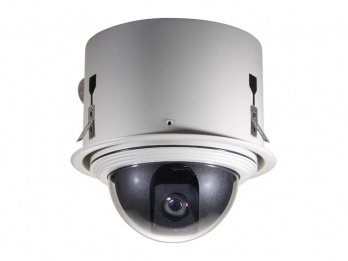

LevelOne FCS - 4500

LevelOne FCS - 4500

Model FCS - 4500Part no. FCS-4500EAN 4015867139943

48 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeBox
  • Weight6.5 kg
  • ColourBlack, Grey
  • Placement supportedIndoor & outdoor
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
Box
Weight
6.5 kg
Colour
Black, Grey
Placement supported
Indoor & outdoor
Brand
LevelOne
Model
FCS - 4500
Part number
FCS-4500
EAN / UPC
4015867139943
Also known as
LevelOne FCS - 4500 Box Indoor & outdoor 704 x 576 pixels Ceiling

Specifications

48 specifications in 13 groups

Performance

Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Plug and PlayYes

Design

Form factorBox
Mounting typeCeiling
Product colourBlack, Grey

Camera

Minimum illumination0.01 lx
Tilt angle range0 - 90°
Tilt speed120 °/sec
Pan range0 - 360°
Pan speed240 °/sec
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/10000 s

Image sensor

Sensor typeCCD
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Digital zoom12x
Focal length range3.4 - 122.4 mm
Focus adjustment1.6 - 4.5

Video

Maximum resolution704 x 576 pixels
Video formats supportedM-JPEG, MPEG4
Frame rate30 fps
NTSC resolutions704 x 480 pixels
PAL resolutions704 x 576 pixels

Audio

Audio codecsG.711
Signal-to-Noise Ratio (SNR)52 dB

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4,TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Flash memory8 MB
Internal memory64 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Power

Power source typePoE
AC input voltage100-240 V
AC input frequency50 - 60 Hz
DC output voltage+12V
DC output current4 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width275 mm
Depth595 mm
Height245 mm
Weight6.5 kg
