GEMINI Zoom Dome IP Network Camera, 2-Megapixel, H.265, 4.3X Optical Zoom, two-way audio, IR LEDs, 802.3af PoE, Vandalproof, Indoor/Outdoor
Model FCS-4203EAN 4015867203415
95 specifications
- ConnectivityWired
- TypeIP security camera
- Weight1.29 kg
- ColourWhite
- Form factorDome
- Minimum illumination0.014 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.29 kg
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.014 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-4203
- Part number
- FCS-4203
- EAN / UPC
- 4015867203415
- Also known as
- LevelOne GEMINI Zoom Dome IP Network Camera, 2-Megapixel, H.265, 4.3X Optical Zoom, two-way audio, IR LEDs, 802.3af PoE, Vandalproof, Indoor/Outdoor
Specifications
95 specifications in 22 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE/FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |

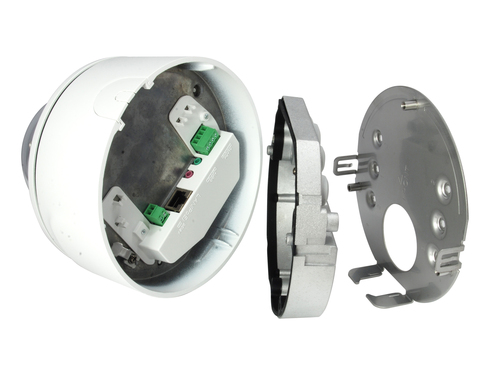

| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Power |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Country of origin | China |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.014 lx |
| Field of view (FOV) angle | 112° |
| Camera shutter speed | 1/3 - 1/10000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Optical zoom | 4.3x |
| Focal length range | 2.8 - 12 mm |
| Focus adjustment | 1.4 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | AVI |
| Video compression formats | H.264, M-JPEG |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Full HD | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711, G.726 |
| Voice codecs | MP2L2, G.711, G.722.1, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP (IPv4), UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Cabling technology | 10/100Base-T(X) |
| Number of users | 16 user(s) |
| Quality of Service (QoS) support | Yes |

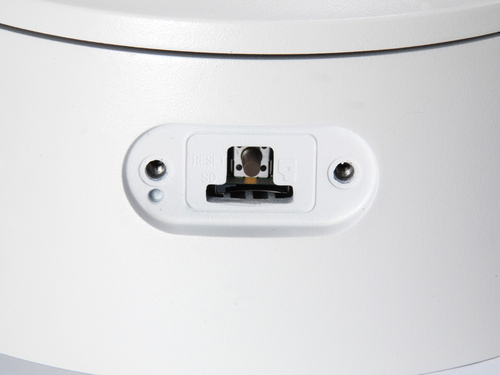

Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Maximum memory card size | 128 GB |

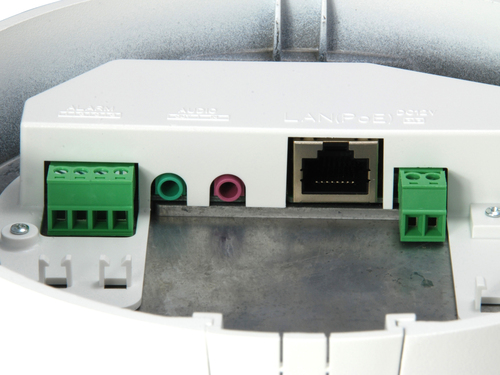

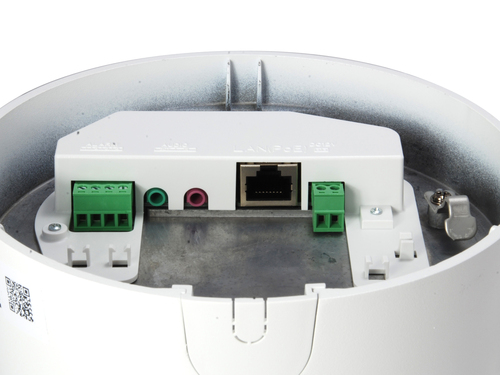

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Anti-flicker | Yes |
| Digital watermark | Yes |
| HTTPS encryption | Yes |
| Heartbeat | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 5.5 W |
| DC output voltage | 12 |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.1 mm |
| Depth | 153.4 mm |
| Height | 153.4 mm |
| Weight | 1.29 kg |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package width | 174 mm |
| Package depth | 173 mm |
| Package height | 244 mm |
| Package weight | 1.82 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Screws included | Yes |
| Resource CD | Yes |
Other features
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 9 |
| Data transfer rate | 16 Mbit/s |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
| Master (outer) case width | 365 mm |
| Master (outer) case length | 372 mm |
| Master (outer) case height | 504 mm |
| Master (outer) case gross weight | 14.6 kg |
| Products per master (outer) case | 8 pc(s) |
