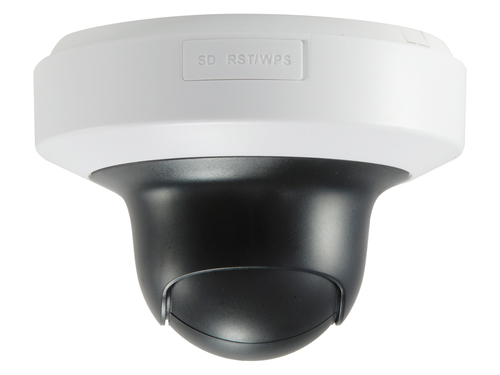

LevelOne GEMINI PT Dome IP Network Camera, 4-Megapixel, 802.3af PoE, 150Mbps Wireless 802.11n, IR LEDs, two-way audio

LevelOne GEMINI PT Dome IP Network Camera, 4-Megapixel, 802.3af PoE, 150Mbps Wireless 802.11n, IR LEDs, two-way audio

Model FCS-4103EAN 4015867201817

83 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight500 g
  • ColourWhite
  • Form factorDome
  • Field of view (FOV) angle83°
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Weight
500 g
Colour
White
Form factor
Dome
Field of view (FOV) angle
83°
Brand
LevelOne
Model
FCS-4103
Part number
FCS-4103
EAN / UPC
4015867201817
Also known as
LevelOne GEMINI PT Dome IP Network Camera, 4-Megapixel, 802.3af PoE, 150Mbps Wireless 802.11n, IR LEDs, two-way audio

Specifications

83 specifications in 22 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired & Wireless
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE/FCC, ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI,ISO-9001

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
LED indicatorsPower
Country of originChina

Camera

Field of view (FOV) angle83°
Tilt angle range0 - 75°
Pan range-90 - 90°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Focus adjustment2.0

Night vision

Night visionYes
Night vision distance10 m
LED typeIR

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedMP4
Video compression formatsH.264, H.264+, M-JPEG
Supported graphics resolutions352 x 288, 640 x 360, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520
Frame rate30 fps
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Full HDYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes

Audio

Voice codecsG.711, G.722.1, G.726

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)150 Mbit/s
Frequency band2.4 - 2.4835 GHz
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo

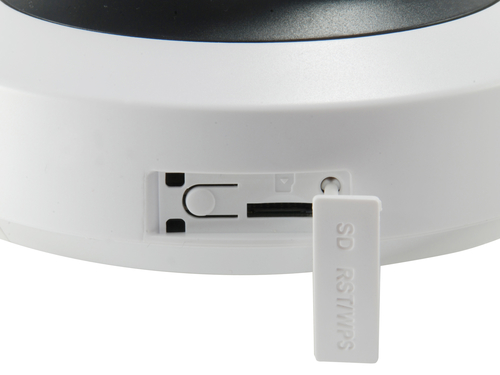

Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
Maximum memory card size128 GB

Ports & interfaces

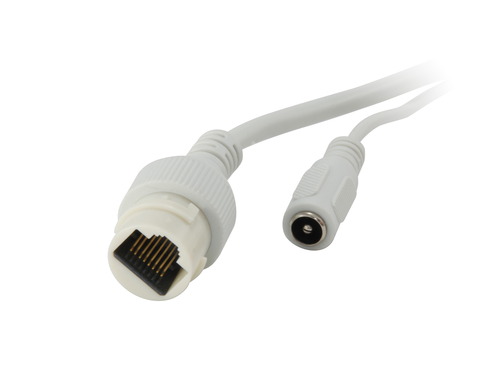

Ethernet LAN (RJ-45) ports1
Terminal block portYes
DC-in jackYes

Security

Active tampering alarmYes
Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS

Management features

Reset buttonYes

Power

Power source typePoE
Power consumption (typical)5 W
Power consumption (max)9 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 40 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7

Weight & dimensions

Width119.9 mm
Depth87.1 mm
Height119.9 mm
Diameter12 cm
Weight500 g

Packaging data

Package width140 mm
Package depth150 mm
Package height145 mm
Package weight600 g
Package typeBox

Packaging content

Number of cameras1
Mounting kitYes
Resource CDYes

Technical details

Audio inputYes
Removable IR-cut filterYes

Other features

Browser supportedInternet Explorer 9+
Data transfer rate16 Mbit/s

Logistics data

Harmonized System (HS) code85258900
Master (outer) case width370 mm
Master (outer) case length503 mm
Master (outer) case height313 mm
Master (outer) case gross weight24 kg
Products per master (outer) case30 pc(s)
